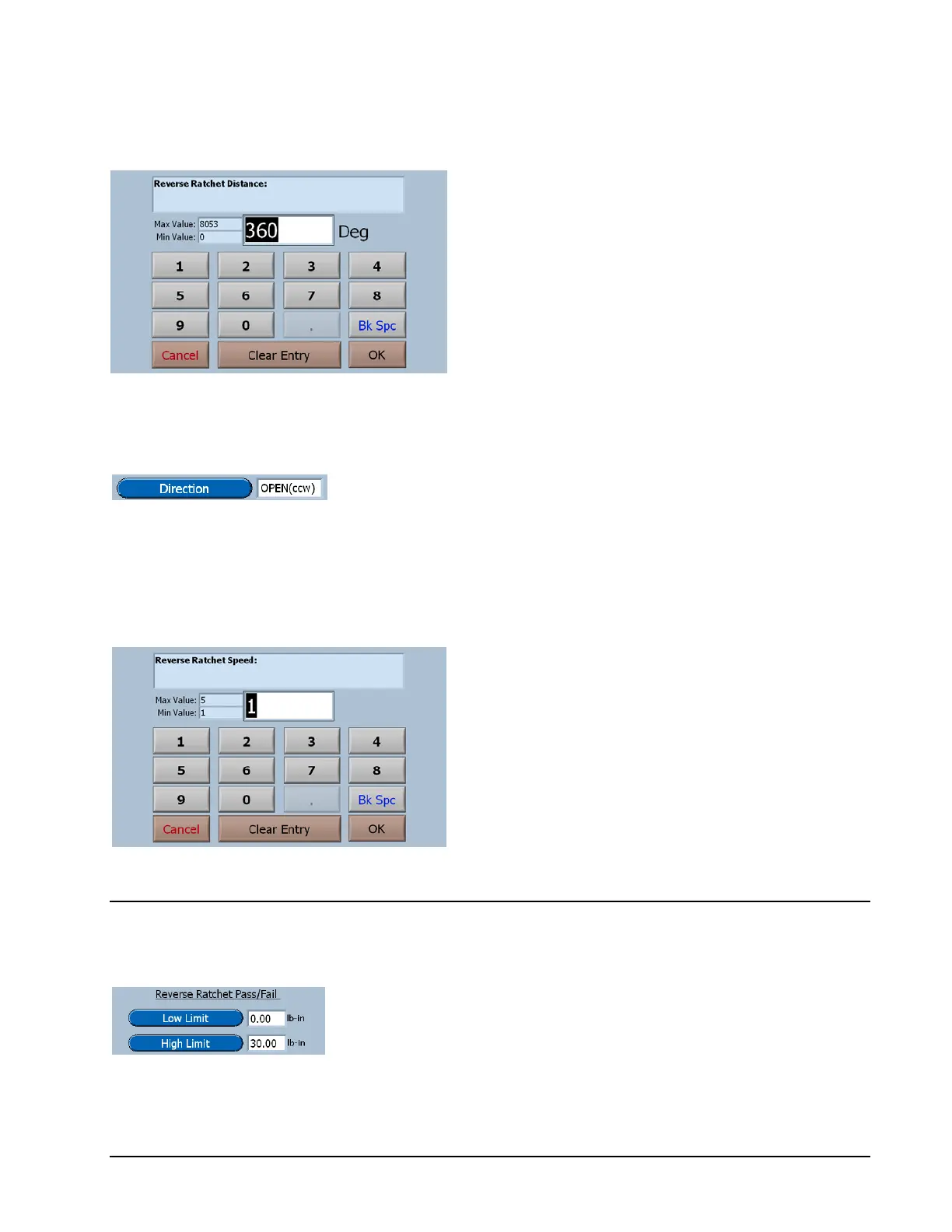

Reverse Ratchet Distance
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
Reverse Ratchet Direction
The Direction Button is an alternate action switch that
changes the direction with each actuation.
Reverse Ratchet Speed
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
Reverse Ratchet Pass / Fail Limits
Low Limit: The Torque value that must be exceeded for the
test to pass.
High Light: The torque value that must not be exceeded for
the test to pass.
