User Guide Ver. 7.1.0 2100 Cap Inspector Creating an Incremental Test • 41

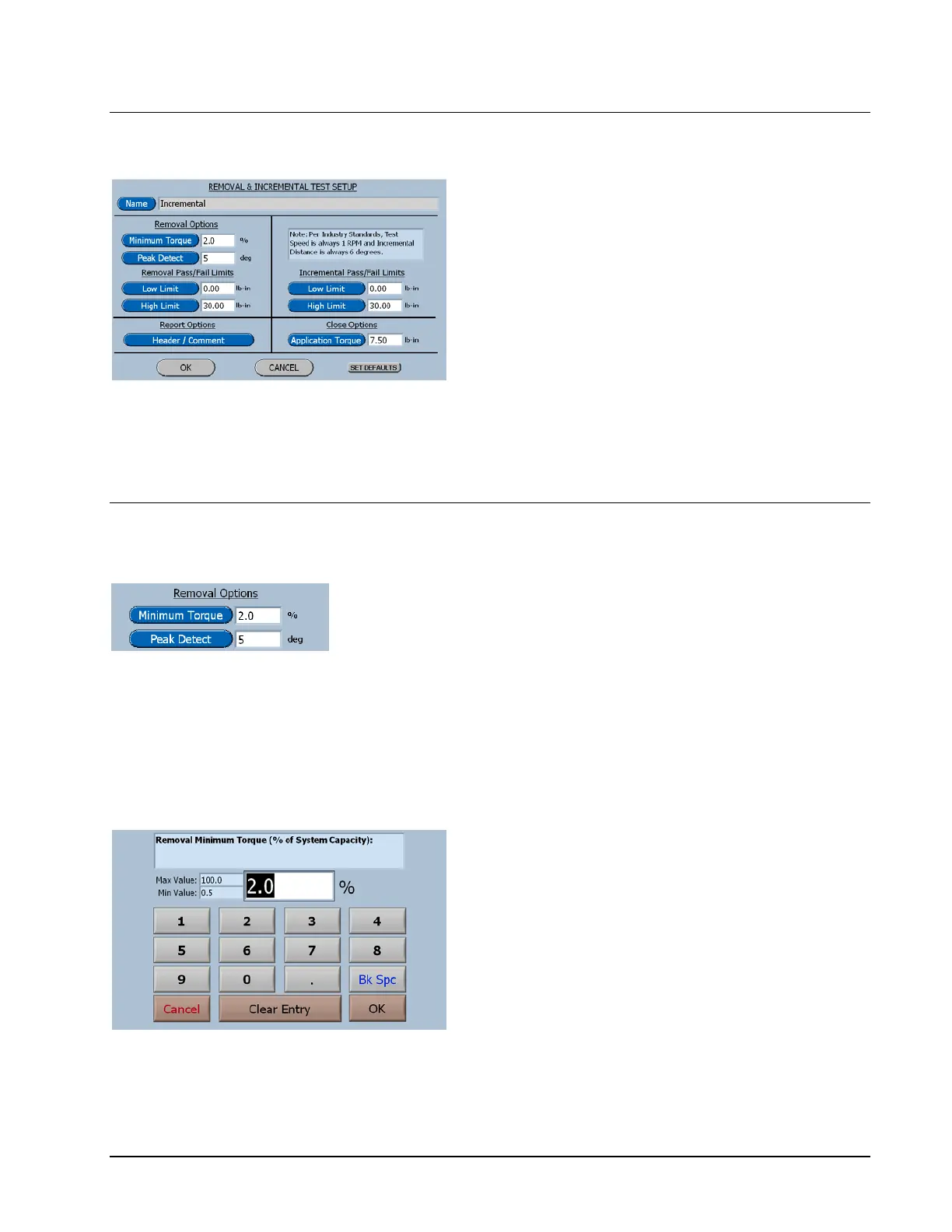

Removal & Incremental Test Setup Screen
The Removal & Incremental Test Setup screen
is divided into 5 groupings.
1. Removal Options
2. Pass/Fail Limits
3. Re-Application Options
4. Report Options
5. Close Options
Removal Options
Minimum Torque: The torque value that must be exceeded
before the removal torque is measured,
Peak Detect: The number of degrees of rotation after a peak
has been measured for the software to accept this peak as the
removal torque value.
Removal Minimum Torque
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
