62 • Creating an ROPP CAP Test User Guide Ver. 7.1.0 2100 Cap Inspector
ROPP Test Setup Screens
ROPP Screen Page 1

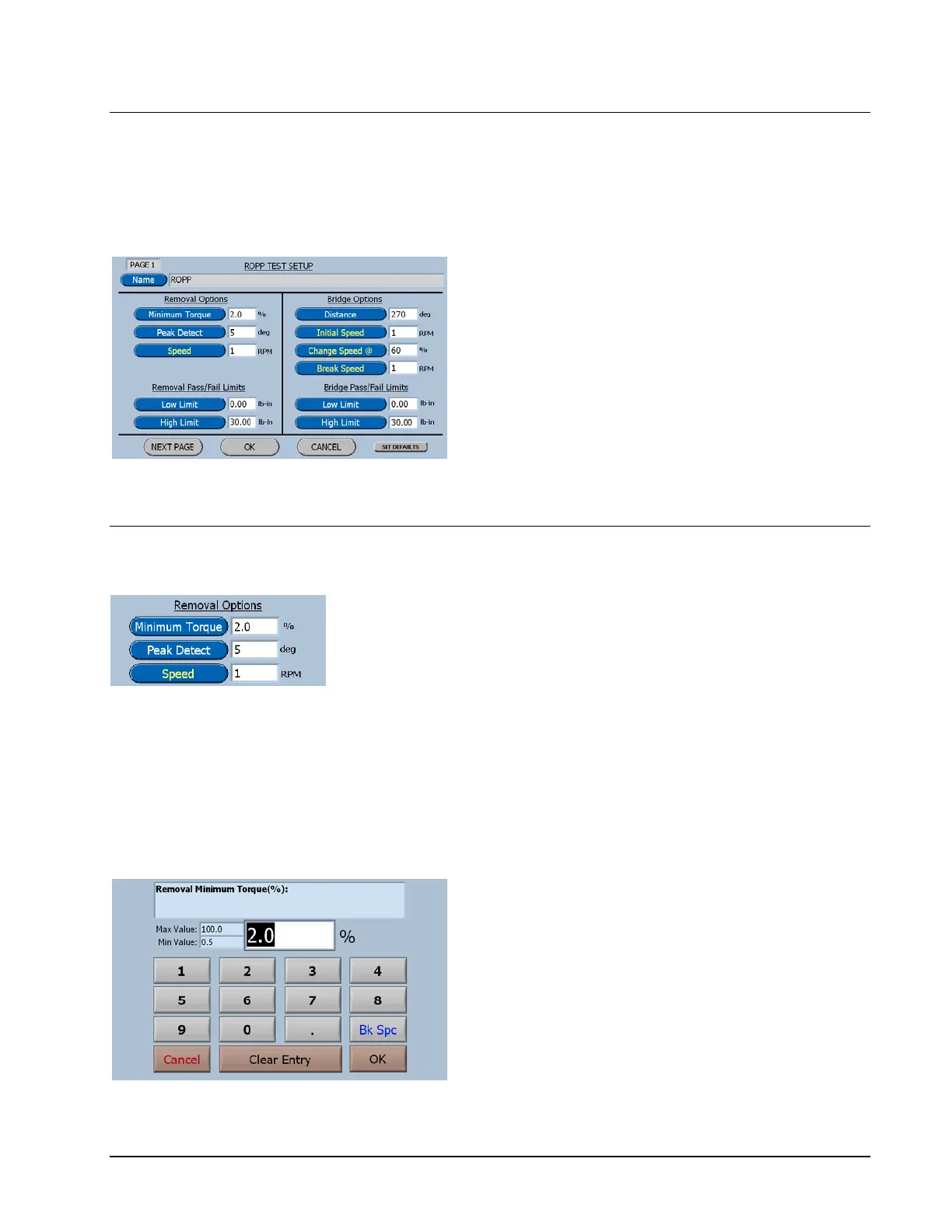

The ROPP Test Setup Screen (page 1) is
divided into 4 parts.
1. Removal Options
2. Removal Pass / Fail Limits
3. Bridge Options
4. Bridge Pass / Fail Limits
Removal Options
Minimum Torque: The torque value that must be exceeded
before the removal torque is considered valid.
Peak Detect: The number of degrees of rotation after a peak
has been measured for the software to accept this peak as the
removal torque value.
Speed: The drive speed to be used for the test.
Removal Minimum Torque
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
