User Guide Ver. 7.1.0 2100 Cap Inspector Creating a Removal & Bridge Test • 47

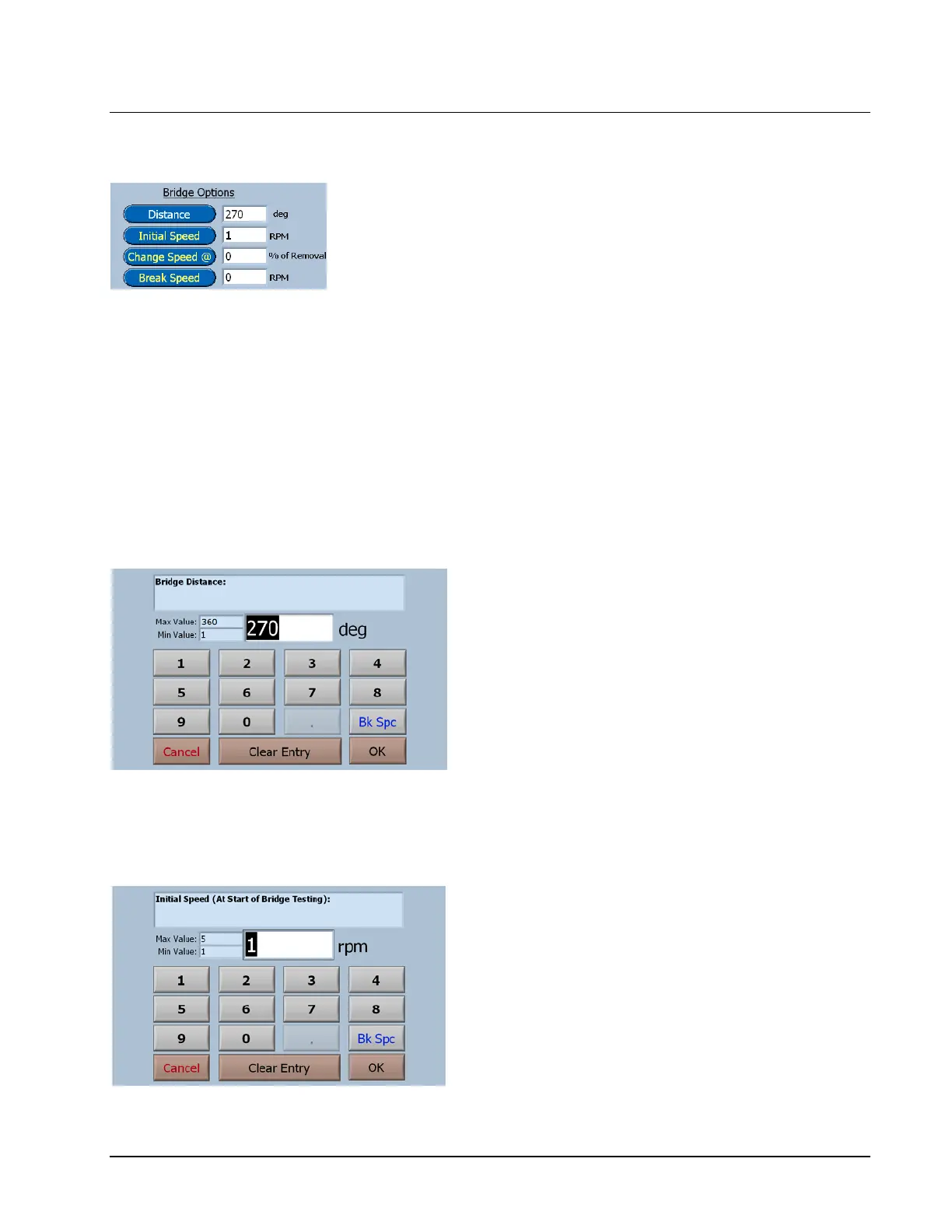

Bridge Options
Distance: This is the distance to drive when measuring the
torque required to break the Bridges after the removal torque
has been measured.
Initial Speed: This is the speed that the system will drive at
until the change speed torque value is reached.
Change Speed: This is the percentage of removal torque at
which the system will change speed to perform the Bridge
break test.
Break Speed: This is the speed that the system will drive at
when breaking the bridges.
Bridge Distance
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
Bridge Initial Speed
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
