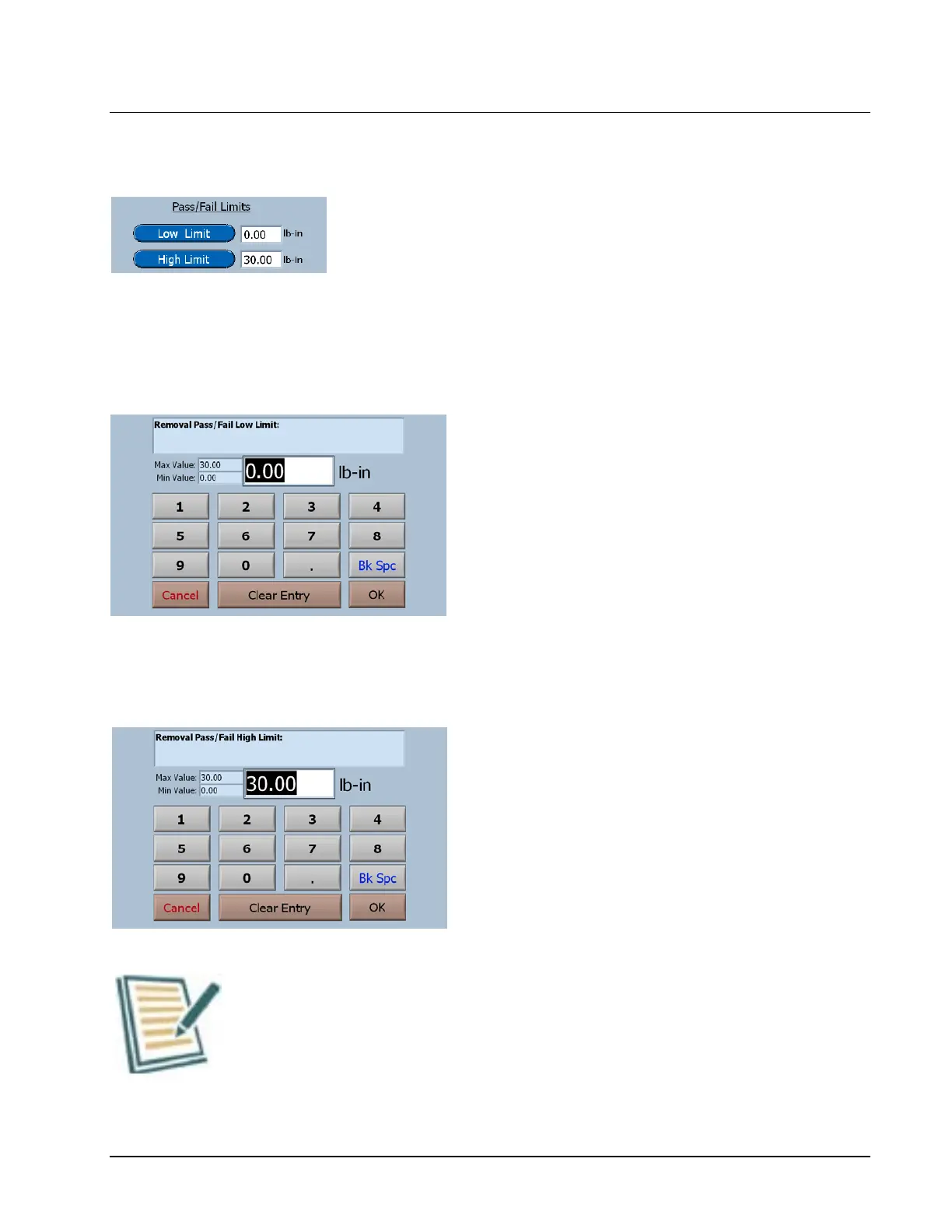

Pass / Fail Limits
Low Limit: The Torque value that must be exceeded for the
test to pass.
High Limit: The torque value that must not be exceeded for
the test to pass.
Removal Pass / Fail Low Limit
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
Removal Pass / Fail High Limit
Observe the minimum and maximum
values.
To input a value, just start typing. The first key
selected will overwrite the first highlighted
value on the screen. When the desired value
has been keyed in press OK to save the new
value.
The Pass / Fail Numeric Key Pads shown on this page will
be used for programming the limits throughout this manual.
However they will not be displayed in each chapter.
