The MRC environment section, Figure 81 below, displays the MRC Fibre Channel port speed setting at the top
of the view. The Fibre Channel host port speed can be set to one of the following:
a. Fixed transfer speeds of 4 or 8 Gb/s for ISE-2, Hyper ISE, and ISE 7-Series.
b. Auto transfer speeds select the speed automatically in accordance with the T11 Auto-Negotiation stan-
dard; the ISE auto-negotiates with the Fibre Channel switch to determine and set the highest port speed
(2, 4, or 8 Gb/s) that both devices support.
Auto-negotiation is enabled by default at the factory. To change the FC Speed Setting, pull down the menu
and click the desired speed. Then click
SAVE CHANGES
in the Global MRC FC Speed Setting section of
the view.
Below the
Global MRC FC Speed Setting
area, MRC environmental states for both MRCs are displayed,
including Fibre Channel and SFP information (see Figure 81) as described in the following table (Table 32).

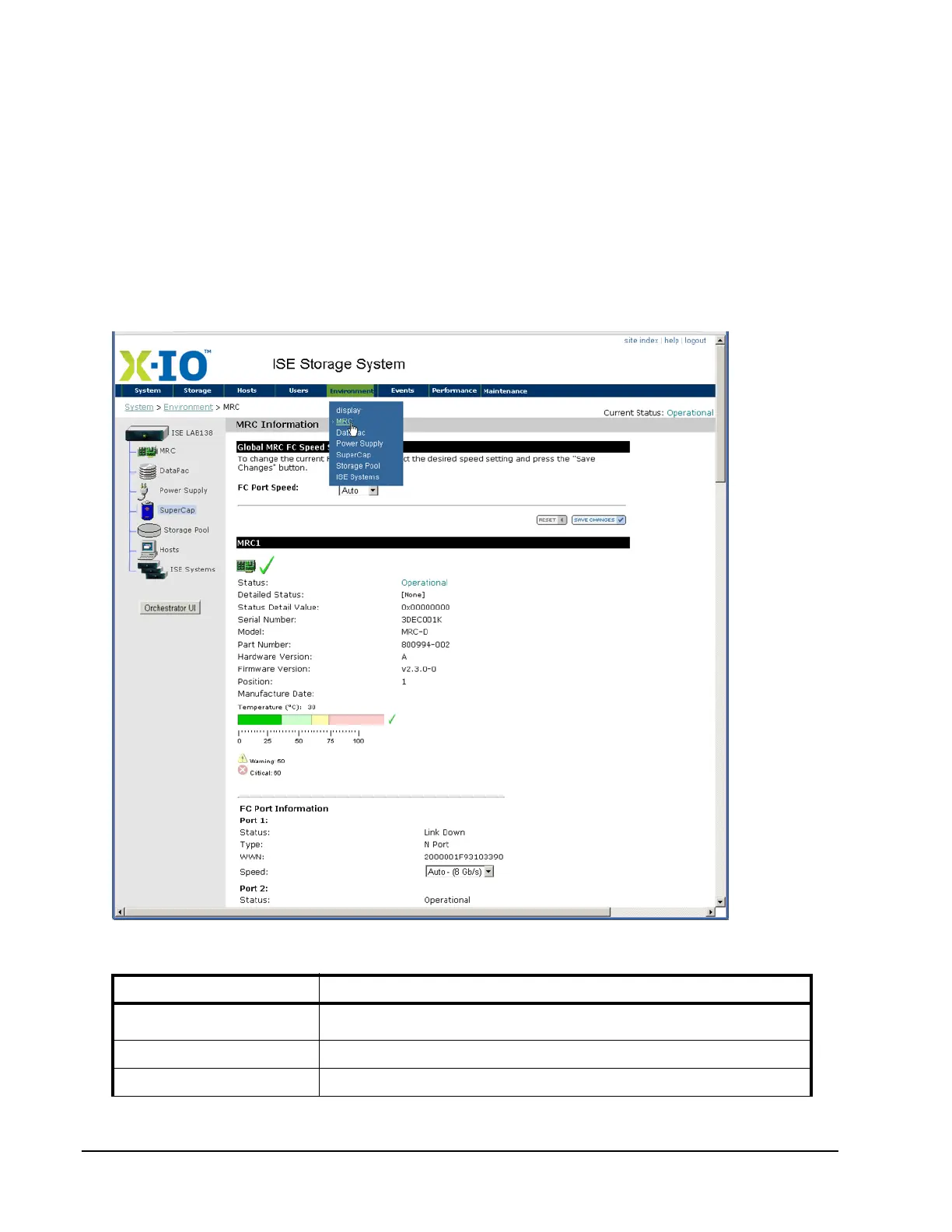

Figure 81. MRC Environment Details
Field Comment
Status
Overall state of the MRC. This field usually reports Operational. Other possible states
include Warning, Critical, or Non-Operational.
Detailed Status
Any unusual state this MRC may be in. This field usually reports None.
Serial Number, Part Number
Serial and part number of MRC.
