Power Supply Detailed
Select
Environment
>>
Power Supply
to view detailed information about the power supplies and their
environment. A partial page is shown below (Figure 83). This page is also accessible by clicking
Power Supply
next to the icon in the left navigation pane on most pages.

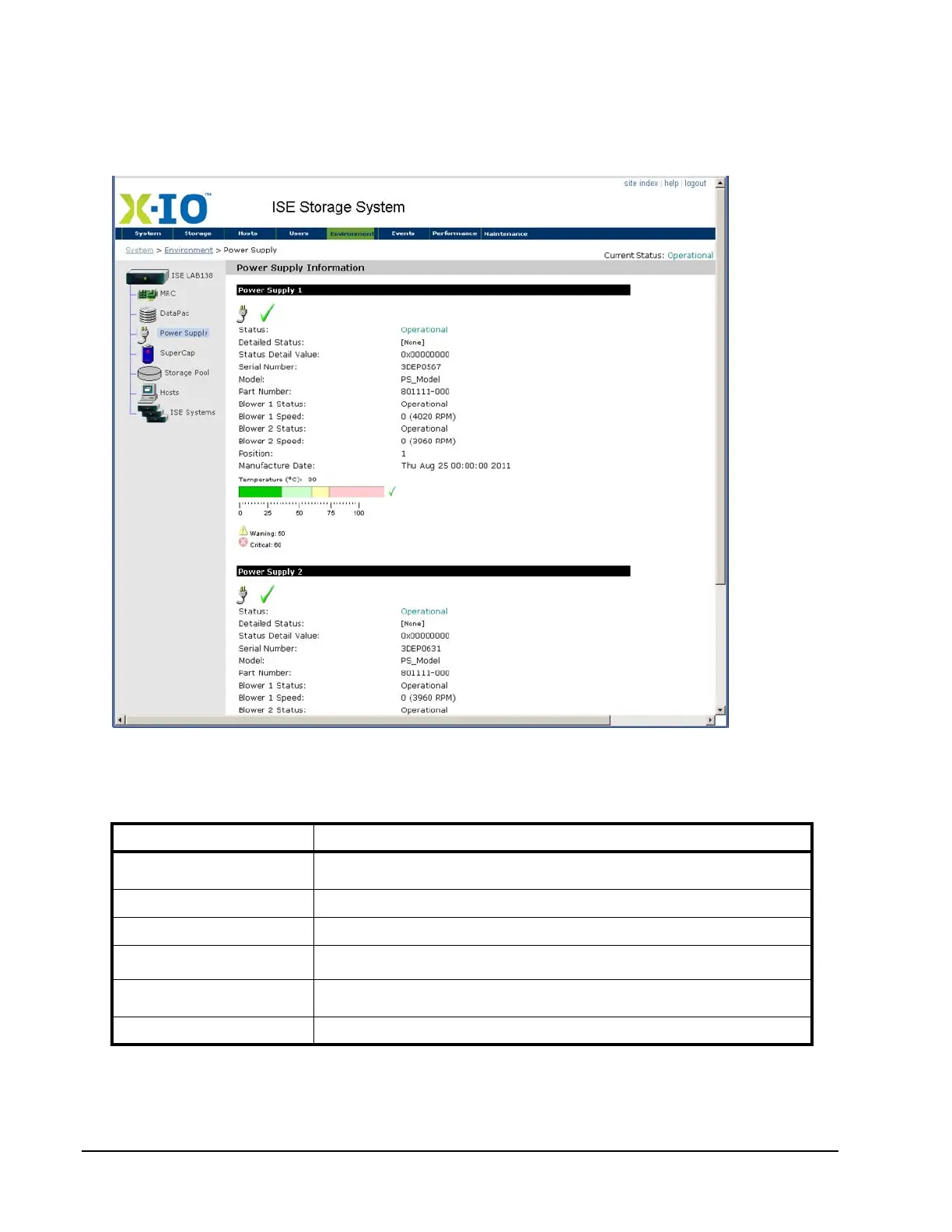

Figure 83. Power Supply Environment Details Partial Page
Click
Refresh
or press
F5
to update the environment page with dynamic environmental changes.
The
Power Supply
view includes information for each unit as described in the following table (Table 33).
Table 33: Power Supply—Environment Display Explanation
Field Comment
Status
Overall state of the power supply; normally Operational, other status: Warning and Criti-
cal.
Detailed Status
Normal is None, otherwise detail for any abnormal state.
Serial Number, Part Number
Component serial number and part number.
Blower, Speed Status
Each power supply contains two blowers, all of which operate independently under
system control. Speeds are grouped into ten RPM ranges, from 1 (slow) to 10 (fast).
Physical Location
Physical bay number; see Figure 101 on page 140 for the identification of the 1 and 2
bays.
Ambient Temperature
Power supply temperature; see “Temperature Indicators” on page 108.
