Yamaha F15A - Dimensions

SPEC
MAINTENANCE SPECIFICATIONS (FT9.9D)
2-30
E

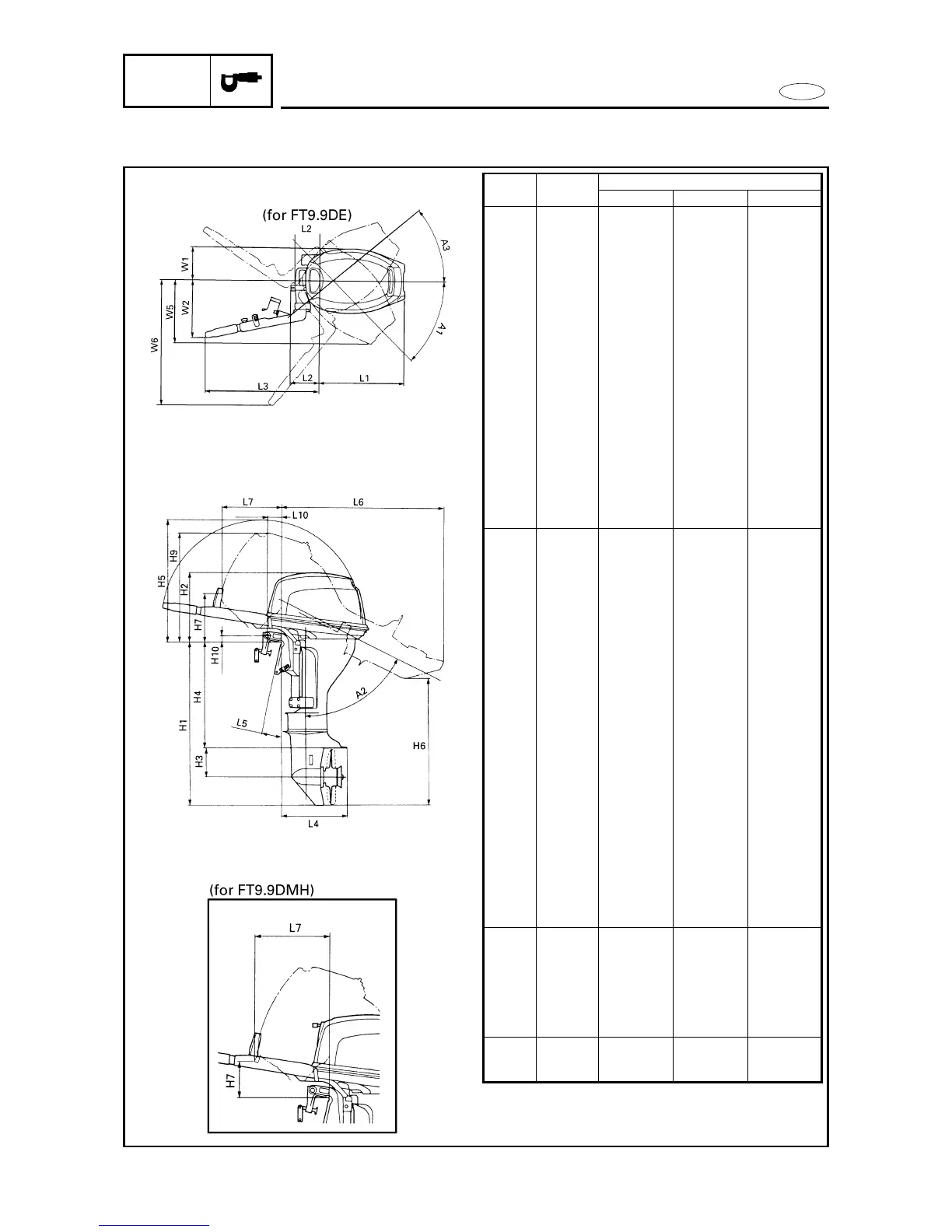

DIMENSIONS
Outboard dimension
L1 mm 475 475 475
(in) (18.7) (18.7) (18.7)
L2 mm 160 160 160
(in) (6.3) (6.3) (6.3)
L3 mm 630 630 —
(in) (24.8) (24.8) —
L4 mm 355.5 355.5 355.5
(in) (14.0) (14.0) (14.0)
L5 :S mm 80 ** 80
(in) (3.1) (**) (3.1)
:L mm 107 107 107
(in) (4.2) (4.2) (4.2)
:X mm 121 121 121
(in) (4.8) (4.8) (4.8)
L6 :S mm 761 ** 761
(in) (30.0) (**) (30.0)
:L mm 875 875 875
(in) (34.4) (34.4) (34.4)
:X mm 935 935 935
(in) (36.8) (36.8) (36.8)
L7 mm 330.5 317 317
(in) (13.0) (12.5) (12.5)
L10 mm 74.5 74.5 74.5
(in) (2.9) (2.9) (2.9)
H1 :S mm 752 ** 752
(in) (29.6) (**) (29.6)
:L mm 879 879 879
(in) (34.6) (34.6) (34.6)
:X mm 947 947 947
(in) (37.3) (37.3) (37.3)
H2 mm 375 375 375
(in) (14.8) (14.8) (14.8)
H3 mm 157 157 157
(in) (6.2) (6.2) (6.2)
H4 :S mm 440 ** 440
(in) (17.3) (**) (17.3)
:L mm 567 567 567
(in) (22.3) (22.3) (22.3)
:X mm 635 635 635
(in) (25.0) (25.0) (25.0)
H5 mm 657 657 —
(in) (25.9) (25.9) —
H6 :S mm 613 ** 613
(in) (24.1) (**) (24.1)
:L mm 682 682 682
(in) (26.9) (26.9) (26.9)
:X mm 720 720 720
(in) (28.3) (28.3) (28.3)
H7 mm 166.5 216 262
(in) (6.6) (8.5) (10.3)
H9 mm 589 589 589
(in) (23.2) (23.2) (23.2)
H10 mm 34.2 34.2 34.2
(in) (1.3) (1.3) (1.3)
W1 mm 182 182 182
(in) (7.2) (7.2) (7.2)
W2 mm 319 319 —
(in) (12.6) (12.6) —
W5 mm 350 350 350
(in) (13.8) (13.8) (13.8)
W6 mm 692 692 —
(in) (27.2) (27.2) —
A1 Degree 45 45 45
A2* Degree 63 63 63
A3 Degree 40 40 40
Symbol
Unit
FT9.9DEFT9.9DMH
FT9.9DEH
Model(s)
*Tilt lock position
**: S-transom models are not manufactured
