PROPELLER SHAFT HOUSING ASS’Y AND

PROPELLER SHAFT ASS’Y (F15A/F9.9C)

LOWR

SERVICE POINTS

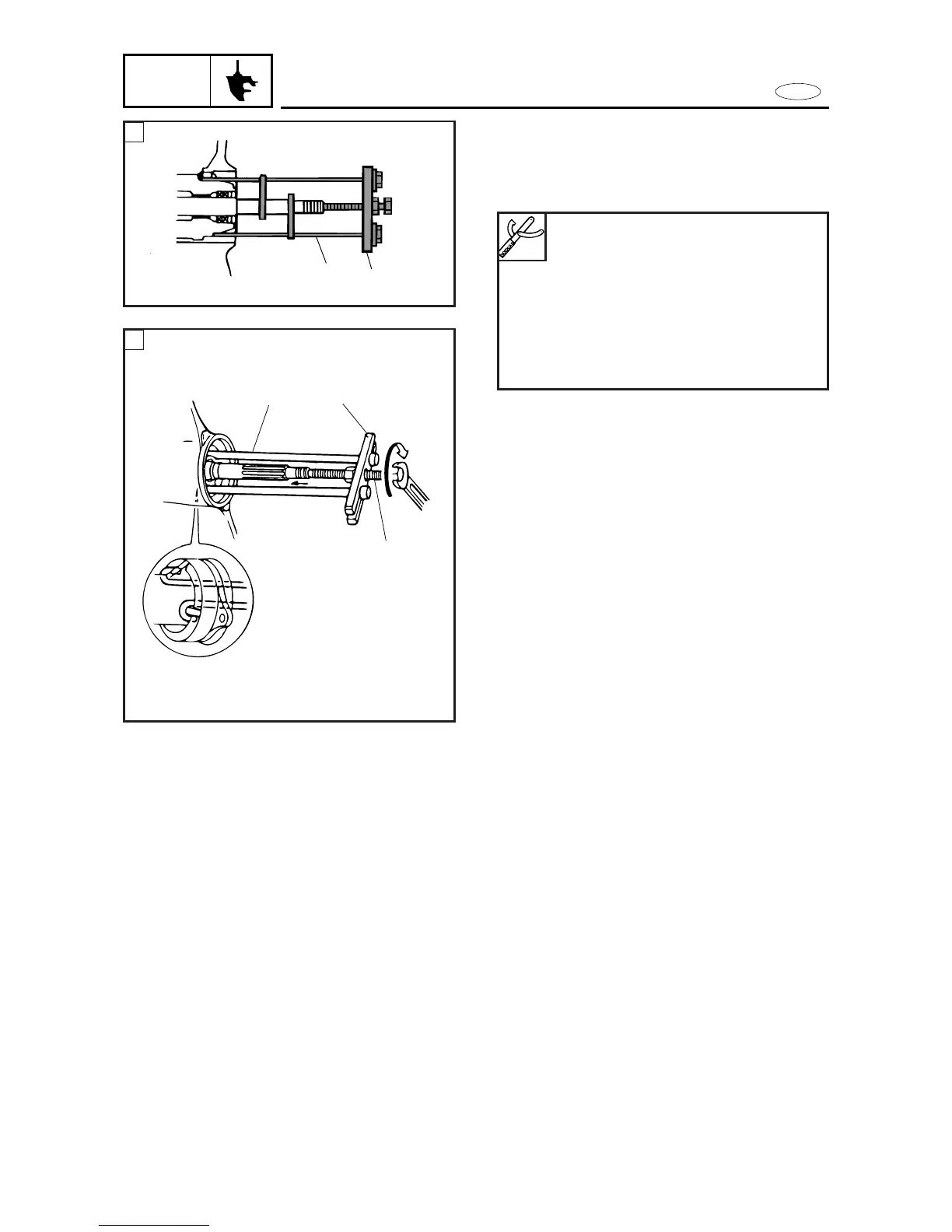

Propeller shaft housing ass’y removal

1. Remove:

9 Propeller shaft housing ass’y

6-6

Bearing housing puller claw:

YB-06234 1/90890-06503 3

Universal puller 2:

YB-06117

Stopper guide plate 4:

90890-06501

Center bolt 5:

90890-06504

A For USA and CANADA

B Except for USA and CANADA
