Yamaha F15A - Bottom Cowling Ass’y (Ft9.9 D)

E
BOTTOM COWLING ASS’Y (FT9.9D)
BRKT
7-14
BOTTOM COWLING ASS’Y (FT9.9D)

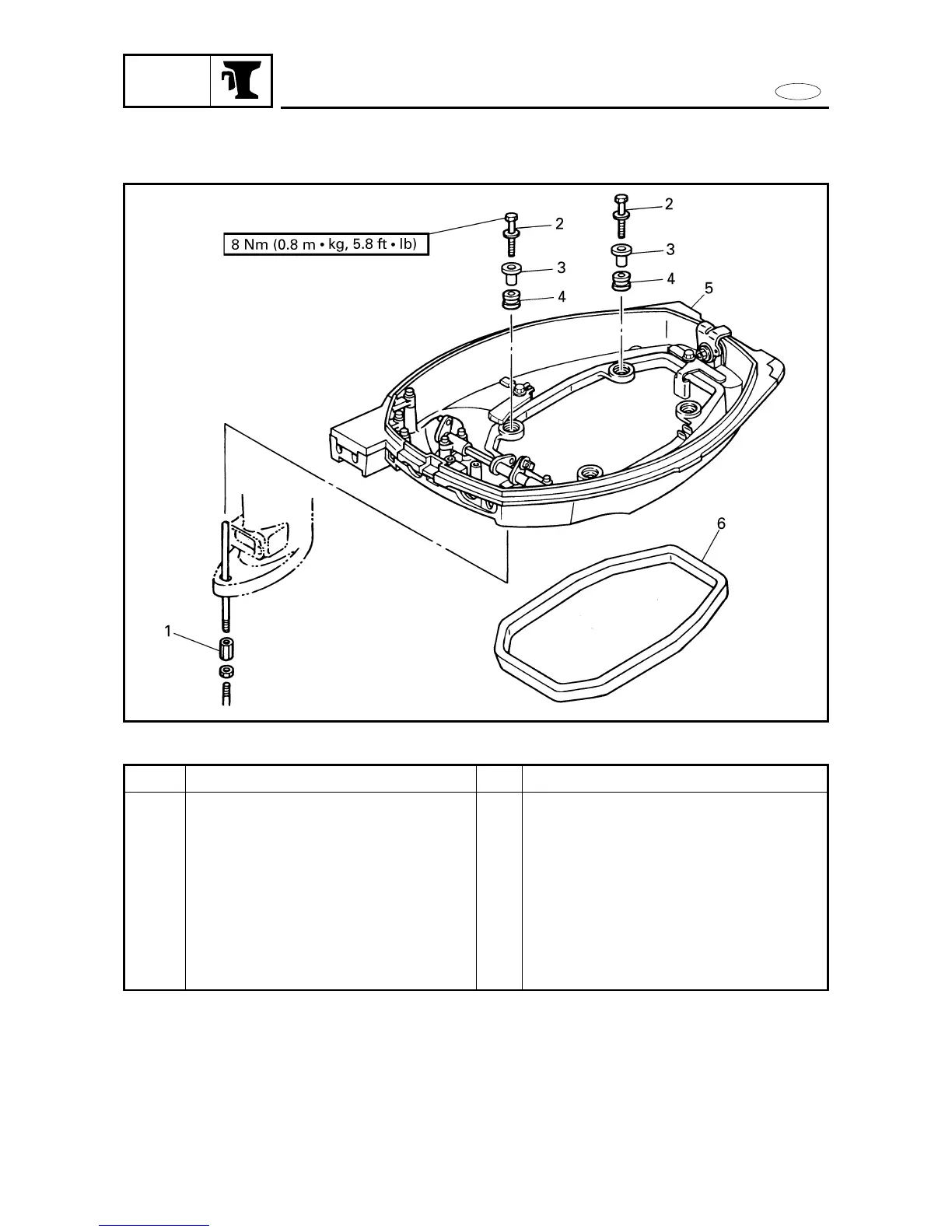

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
Q’ty
1
4
4
4
1
1
Service points
Follow the left ”Step” for removal.
Front: M6 x 25 mm-2/ Rear: M6 x 35 mm-2
Reverse the removal steps for installation.
Procedure/Part name
BOTTOM COWLING ASS’Y REMOVAL
Power unit
Shift rod nut
Bolt
Collar
Grommet
Bottom cowling ass’y
Rubber seal
