Yamaha F15A - Lower Unit (Ft9.9 D)

E
LOWER UNIT (FT9.9D)
LOWR
LOWER UNIT (FT9.9D)

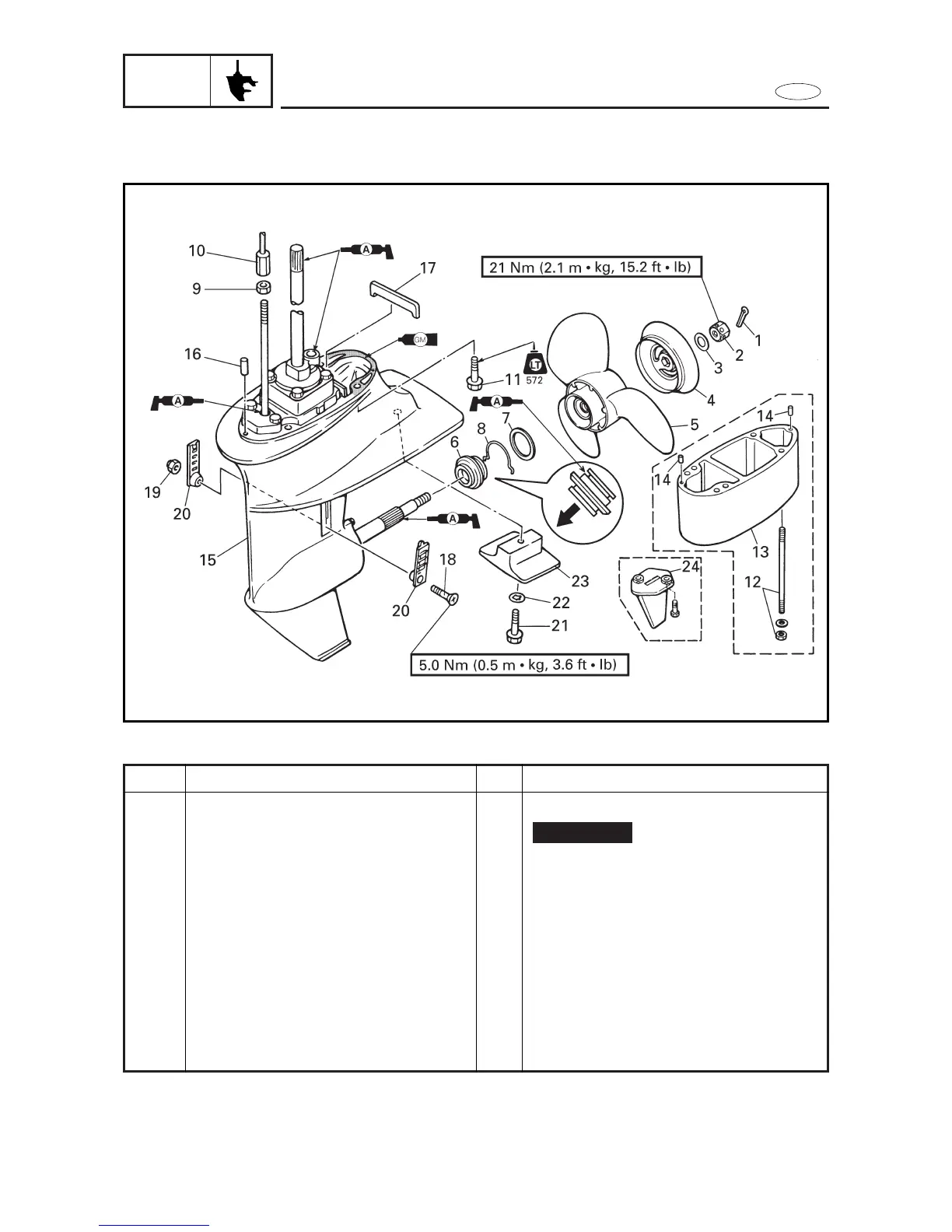

EXPLODED DIAGRAM
6-26
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
9
10
11
12
Q’ty
1
1
1
1
1
1
1
1
1
1
4
4/4
Service points
Follow the left ”Step” for removal.
Not reusable
Procedure/Part name
LOWER UNIT REMOVAL
Cotter pin
Propeller nut
Spacer
Deflector ring
Propeller
Collar
Washer
Circlip
Locknut
Adjusting nut
Bolt
Stud bolt/nut (for X-transom models)
