DRIVE SHAFT, FORWARD GEAR, SHIFT ROD AND
OIL SEAL HOUSING (F15A/F9.9C)
LOWR
1
2
1
2

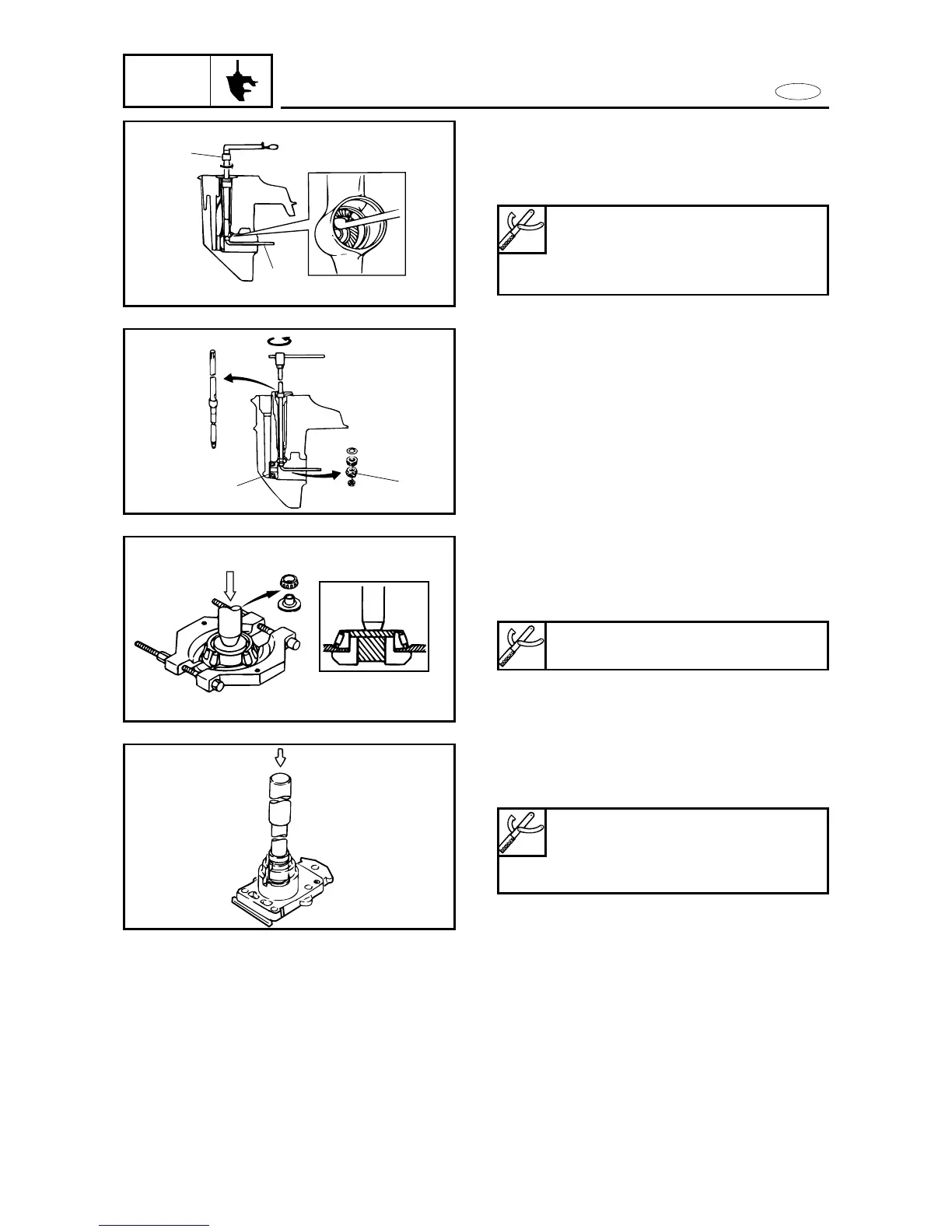

SERVICE POINTS
Pinion and forward gear removal
1. Remove :
9 Pinion gear nut
2. Remove :
9 Pinion gear 1
9 Forward gear 2
(along with the tapered roller bearing)
Forward gear disassembly
1. Remove:
9 Tapered roller bearing
(from the forward gear ass’y)
6-15
Drive shaft holder 1:
YB-06228/90890-06515
Pinion nut holder 2:
YB-06078/N.A.
Bearing separator:
YB-06219/90890-06534
Oil seal housing ass’y disassembly
1. Remove:
9 Bushing
Bushing attachment:
YB-06028/90890-06649
Driver rod:
YB-06229/90890-06604
