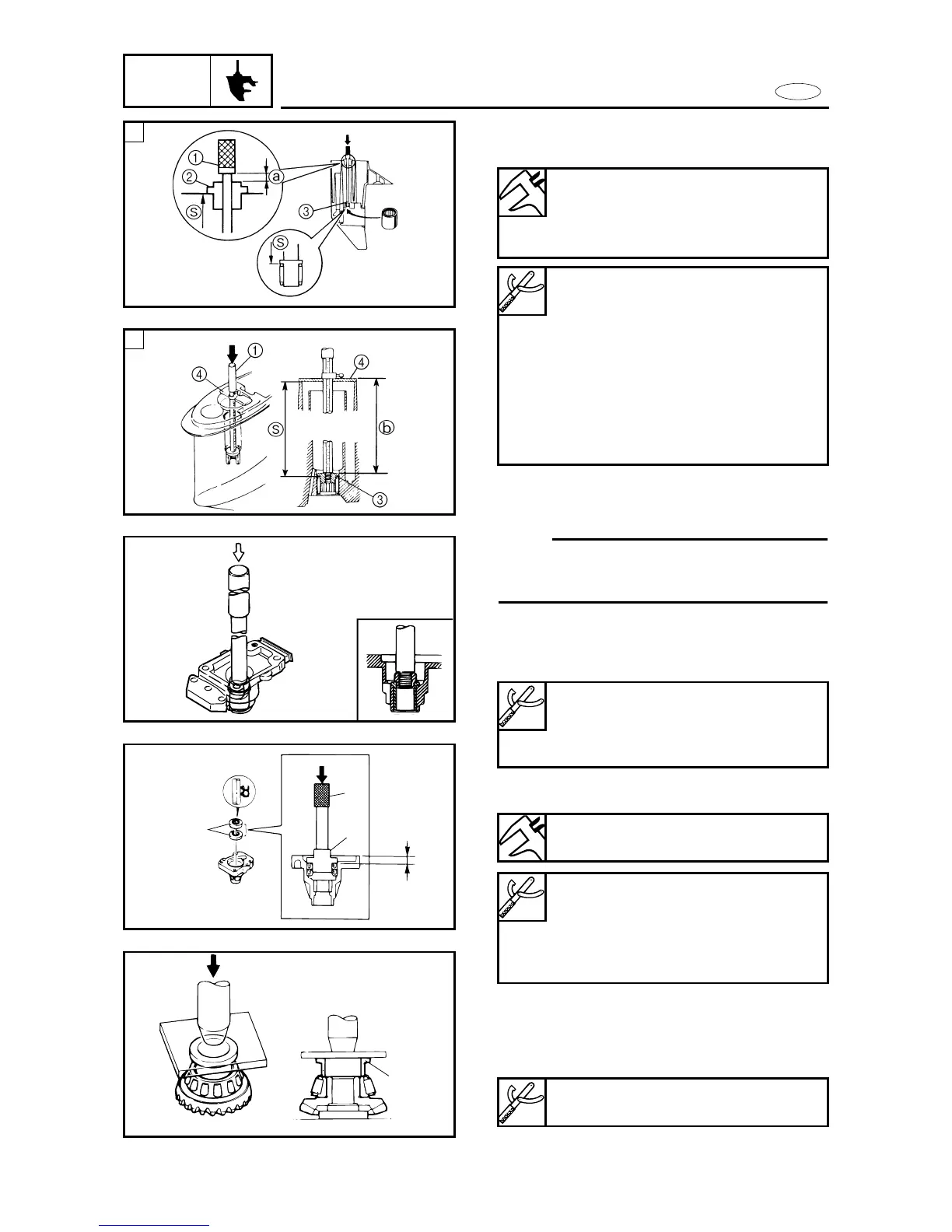

DRIVE SHAFT, FORWARD GEAR, SHIFT ROD AND
OIL SEAL HOUSING (F15A/F9.9C)
LOWR
2
3
1
a
1
6-18
Forward gear assembly
1. Install:
9 Tapered roller bearing
(to the forward gear)
Bearing inner race attachment 1:
90890-06644
Oil seal housing ass’y assembly
1. Install:
9 Bushing
2. Install:
9 Oil seal 1
Depth a:
7.0 ~ 8.0 mm (0.28 ~0.31 in)
Driver rod 2:
YB-06071/90890-06604
Bearing installer 3:
(Bearing inner race attachment)
YB-06022/90890-06613
A For USA and CANADA
B Except for USA and CANADA
NOTE:
Install the drive shaft needle bearing with
the manufacturer’s marks facing up.
2. Install:
9 Needle bearing
Needle bearing depth a:
17.3 ~ 17.8 mm (0.68 ~ 0.70 in)
Needle bearing depth b, S:
172.7~173.2 mm (6.08~6.82 in)
Driver rod 1:
YB-06229/90890-06602
Drive shaft needle bearing
depth stop 2:
YB-06231
Needle bearing attachment 3:
YB-06230/90890-06617
Bearing depth plate 4:
90890-06603
A
B
Bushing attachment:
YB-06028/90890-06649
Driver rod:
YB-06229/90890-06604
