Yamaha F15A - Exploded Diagram

E
POWER UNIT
POWR

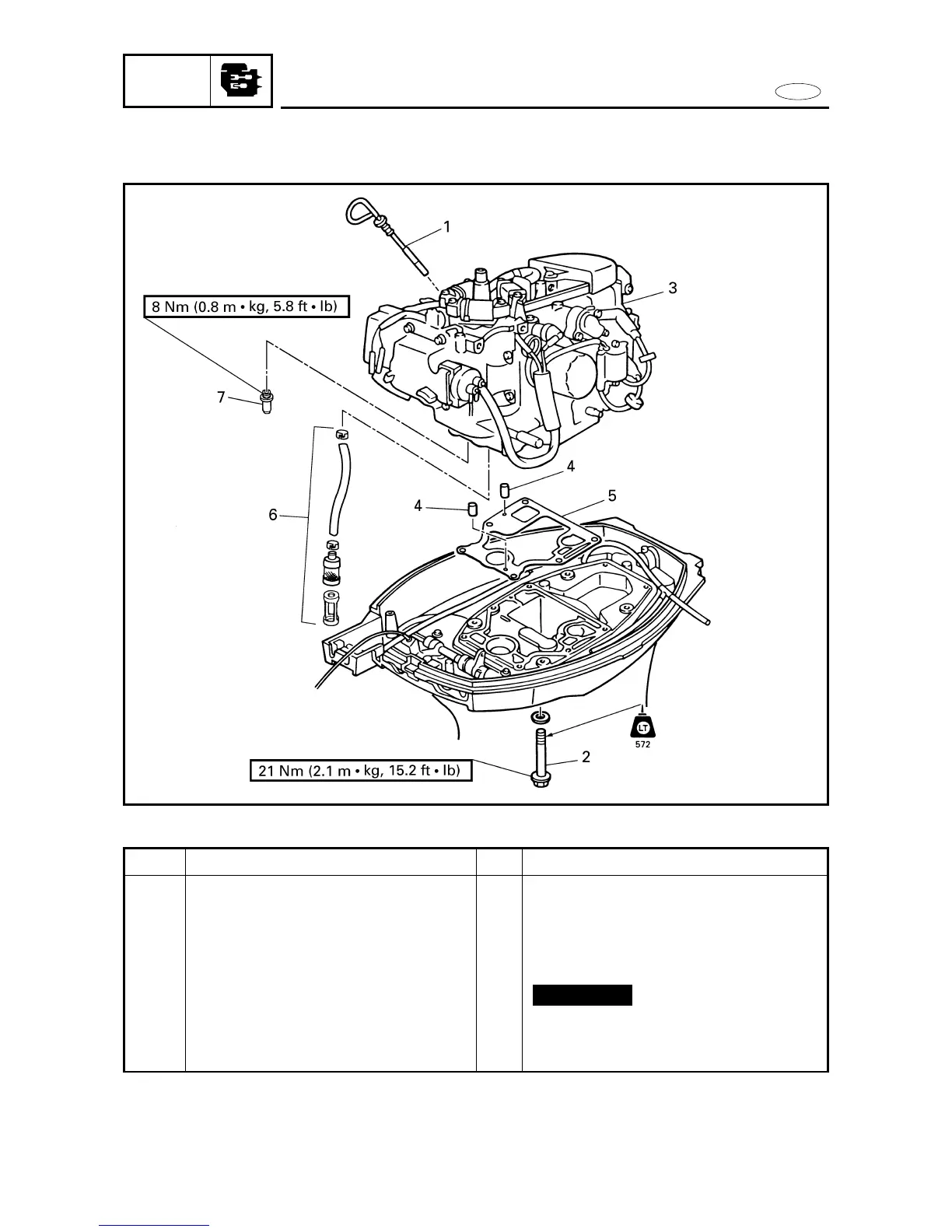

EXPLODED DIAGRAM
5-11
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
Q’ty
1
6
1
2
1
1
1
Service points
Follow the left ”Step” for removal.
M8 x 45 mm
Reverse the removal steps for installation.
Not reusable
Procedure/Part name
POWER UNIT REMOVAL 2
Oil level dipstick
Bolt
Power unit
Dowel pin
Gasket
Oil strainer ass’y
Relief valve ass’y
