Yamaha F15A - Clamp Bracket

E
CLAMP BRACKET
BRKT
CLAMP BRACKET

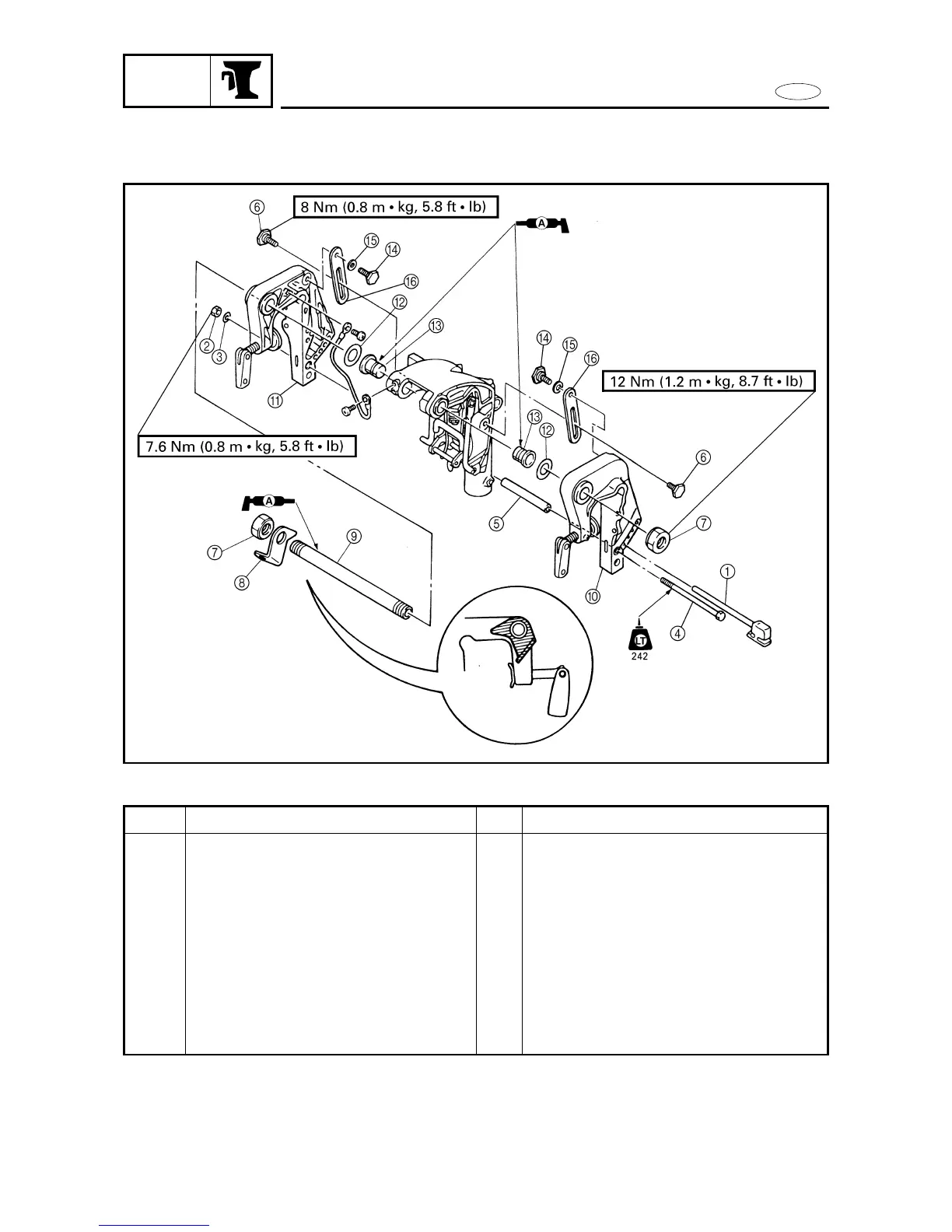

EXPLODED DIAGRAM
7-23
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
9
Q’ty
2
1
1
2
1
2
2
1
1
Service points
Follow the left ”Step” for disassembly.
Procedure/Part name
CLAMP BRACKET DISASSEMBLY
Tilt pin
Nut
Washer
Bolt
Collar
Bolt
Nut
Clamp bracket plate
Clamp bracket bolt
