CYLINDER HEAD AND OIL PUMP
POWR
CYLINDER HEAD AND OIL PUMP

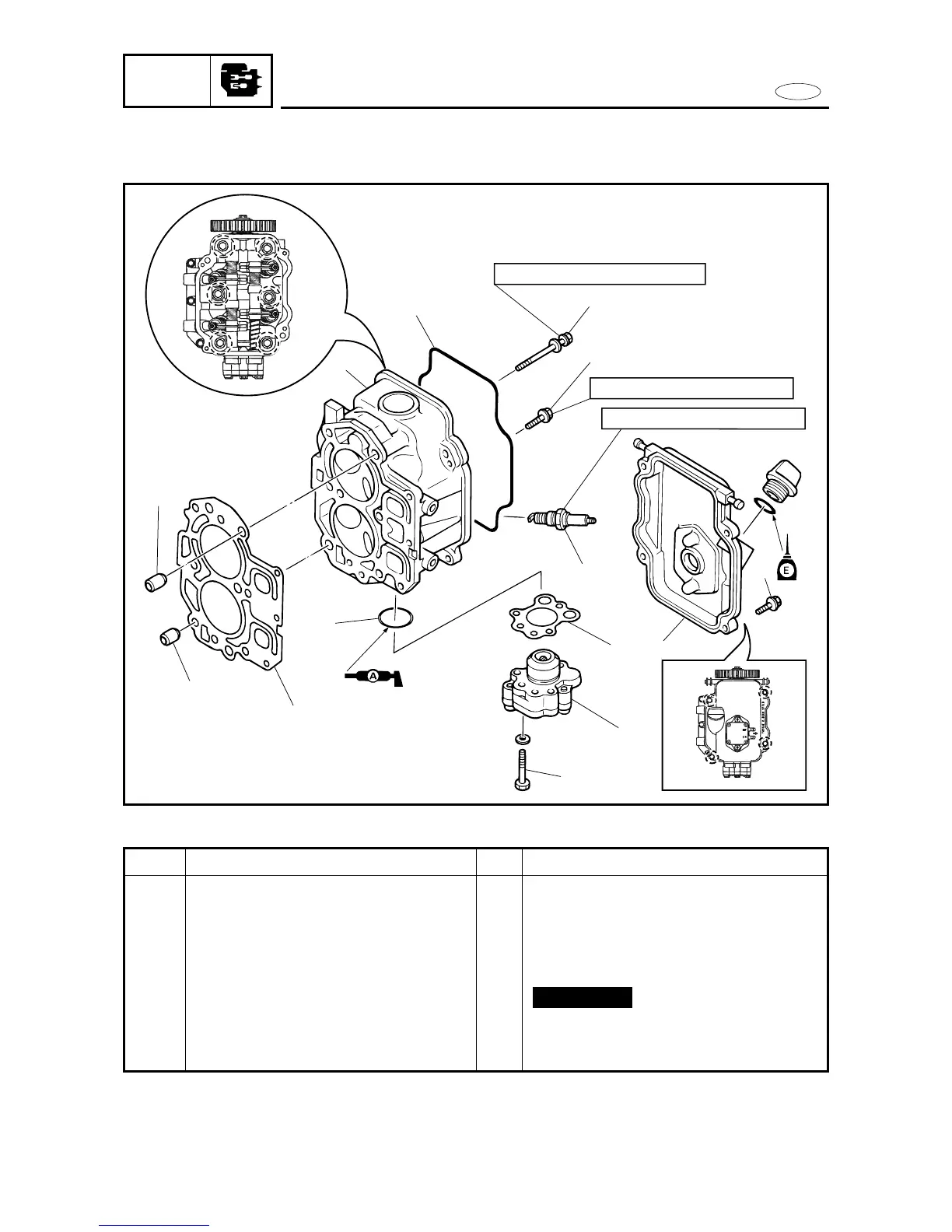

EXPLODED DIAGRAM
8
8
9
12
7
4
5
6
1
3
13
11
10
2
30 Nm (3.0m•kg, 21.7 ft•lb)
12 Nm (1.2m•kg, 8.7ft•lb)
18 Nm (1.8 m•kg, 13 ft•lb)
1
2
3
4
5
6
1
2
3
4
5-19
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
Q’ty
2
4
1
1
3
6
1
Service points
Follow the left ”Step” for removal.
M6 x 25 mm
M8 x 74 mm
Not reusable
Procedure/Part name
CYLINDER HEAD AND OIL PUMP
REMOVAL
Spark plug
Bolt
Cylinder head cover
Rubber gasket
Bolt
Bolt
Cylinder head ass’y
