Yamaha F15A - Exploded Diagram (F15 A); Intake System Exploded Diagram; Intake System Removal and Installation Chart

FUEL
INTAKE SYSTEM
4-4
E

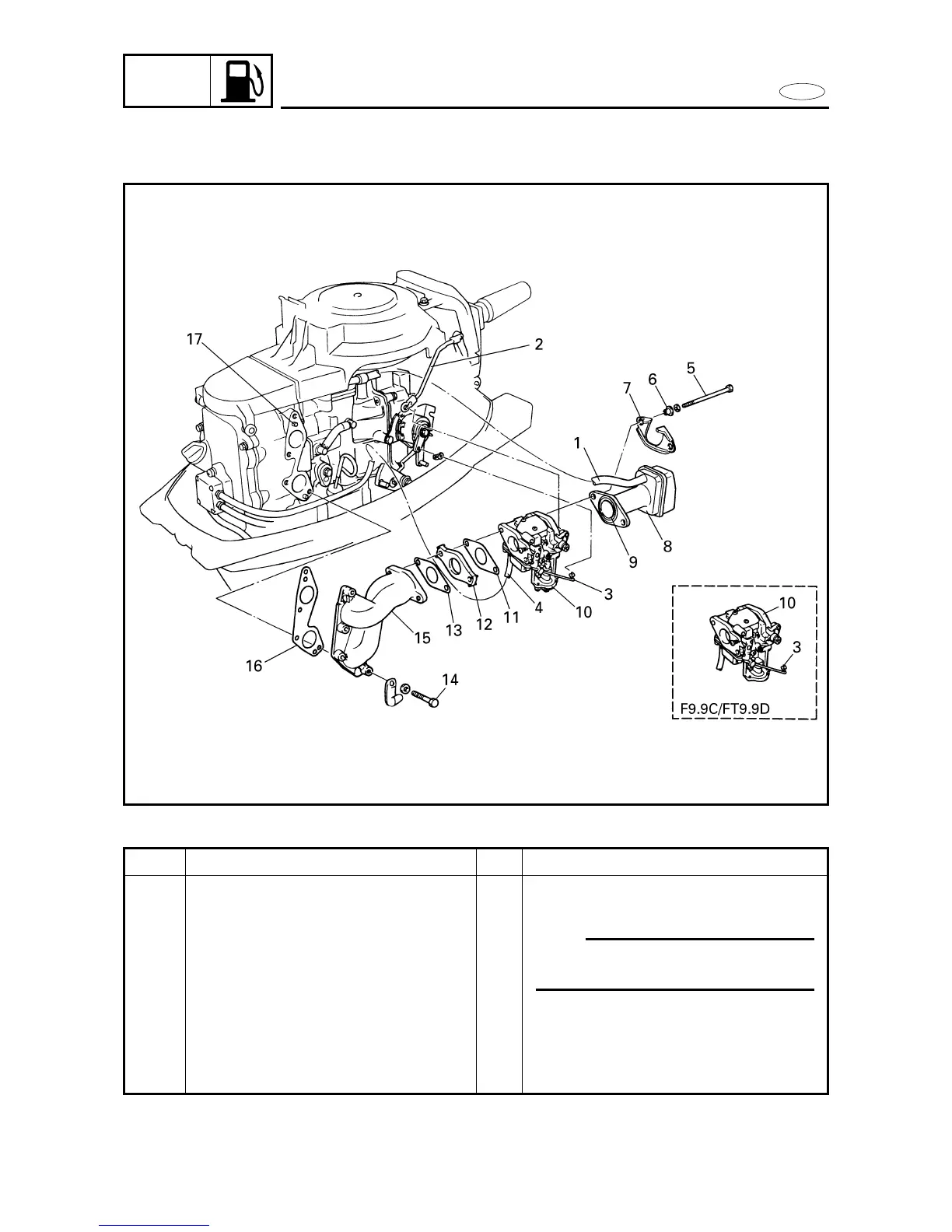

INTAKE SYSTEM
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
Q’ty
1
1
1
1
2
2
1
Service points
Follow the left ”Step” for removal.
NOTE:
When removing the snap connector on
the carburetor side, pull the choke knob.
M6 x 100 mm
Procedure/Part name
INTAKE SYSTEM REMOVAL
Breather hose
Choke rod
Throttle link rod
Fuel hose
Bolt
Collar
Plate
