Yamaha F15A - Lower Case Disassembly

E
DRIVE SHAFT, FORWARD GEAR, SHIFT ROD AND
OIL SEAL HOUSING (F15A/F9.9C)
LOWR
1
2
1
2
3
4
A For USA and CANADA
B Except for USA and CANADA
6-16
Lower case disassembly

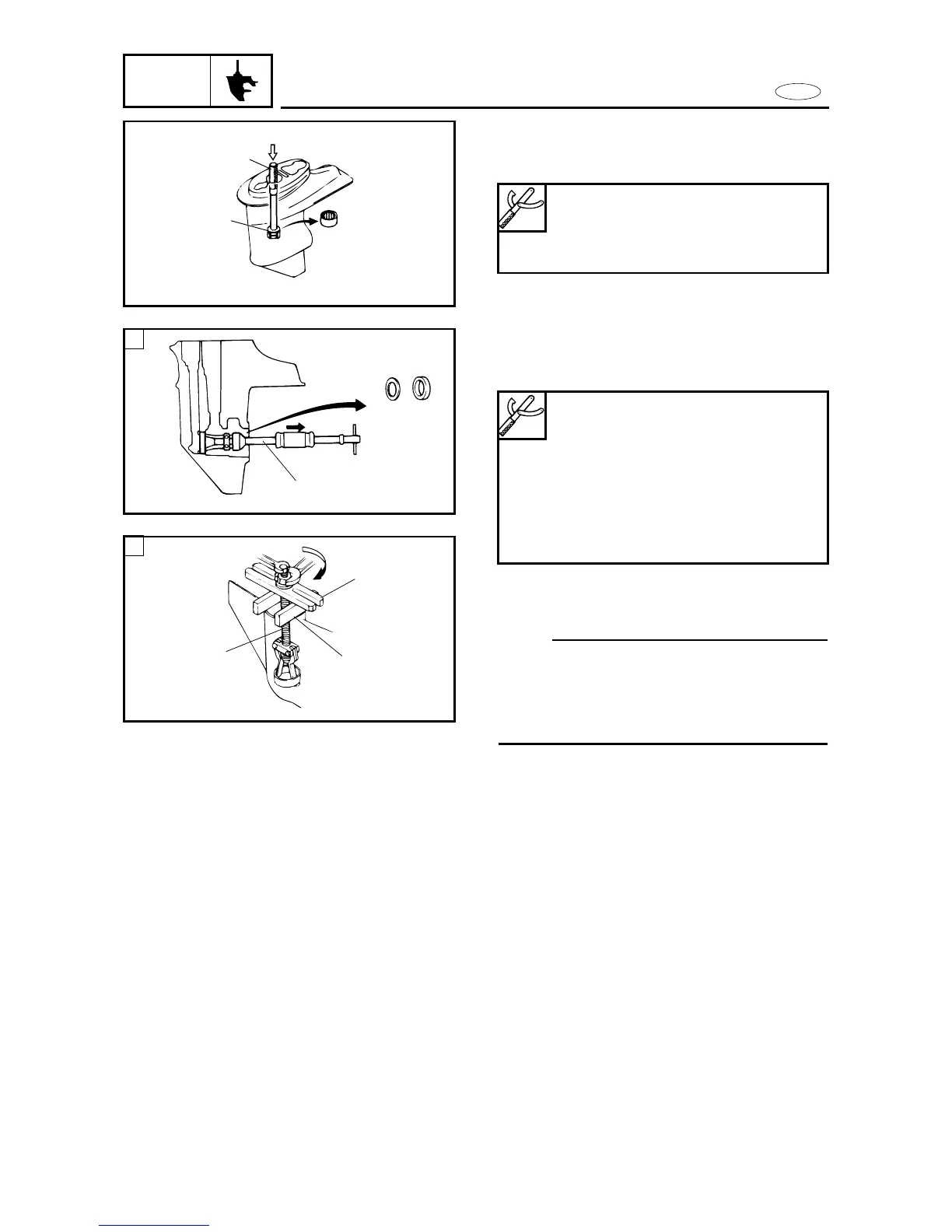

1. Remove:
9 Needle bearing
Driver rod 1:
YB-06229/90890-06602
Needle bearing attachment 2:
YB-06230/90890-06617
2. Remove:
9 Forward gear bearing outer race
9 Forward gear shim(s)
Slide hammer set 1:
YB-06096
Stopper guide plate 2:
90890-06501
Bearing outer race puller 3:
90890-06535
Stopper guide stand 4:
90890-06538
NOTE:
Make sure the bearing outer race puller
sliding on the gear case, attaching to the
outer race and shim’s bottom at horizontal-
ly.
