Yamaha F15A - Fuel Joint, Fuel Filter, and Fuel Pump Exploded Diagram; Fuel Joint, Fuel Filter, and Fuel Pump Removal and Installation Chart

Step
1
2
3
4
5
6
7
8
Q’ty
1
1
2
1
1
1
1
1
Service points
Follow the left ”Step” for removal.
M6 x 30 mm
NOTE:
During installation, make sure the arrow
mark faces towards the fuel pump side.
Reverse the removal steps for installation.
Not reusable
Procedure/Part name
FUEL JOINT, FUEL FILTER AND
FUEL PUMP REMOVAL
Fuel hose (fuel pump-to-carburetor)
Fuel hose (fuel filter-to-fuel pump)
Screw (with washer)
Fuel pump ass’y
O-ring
Fuel filter
Fuel hose (fuel joint-to-fuel filter)
Fuel joint
FUEL
FUEL JOINT, FUEL FILTER, AND FUEL PUMP
4-1
E
FUEL JOINT, FUEL FILTER, AND FUEL PUMP

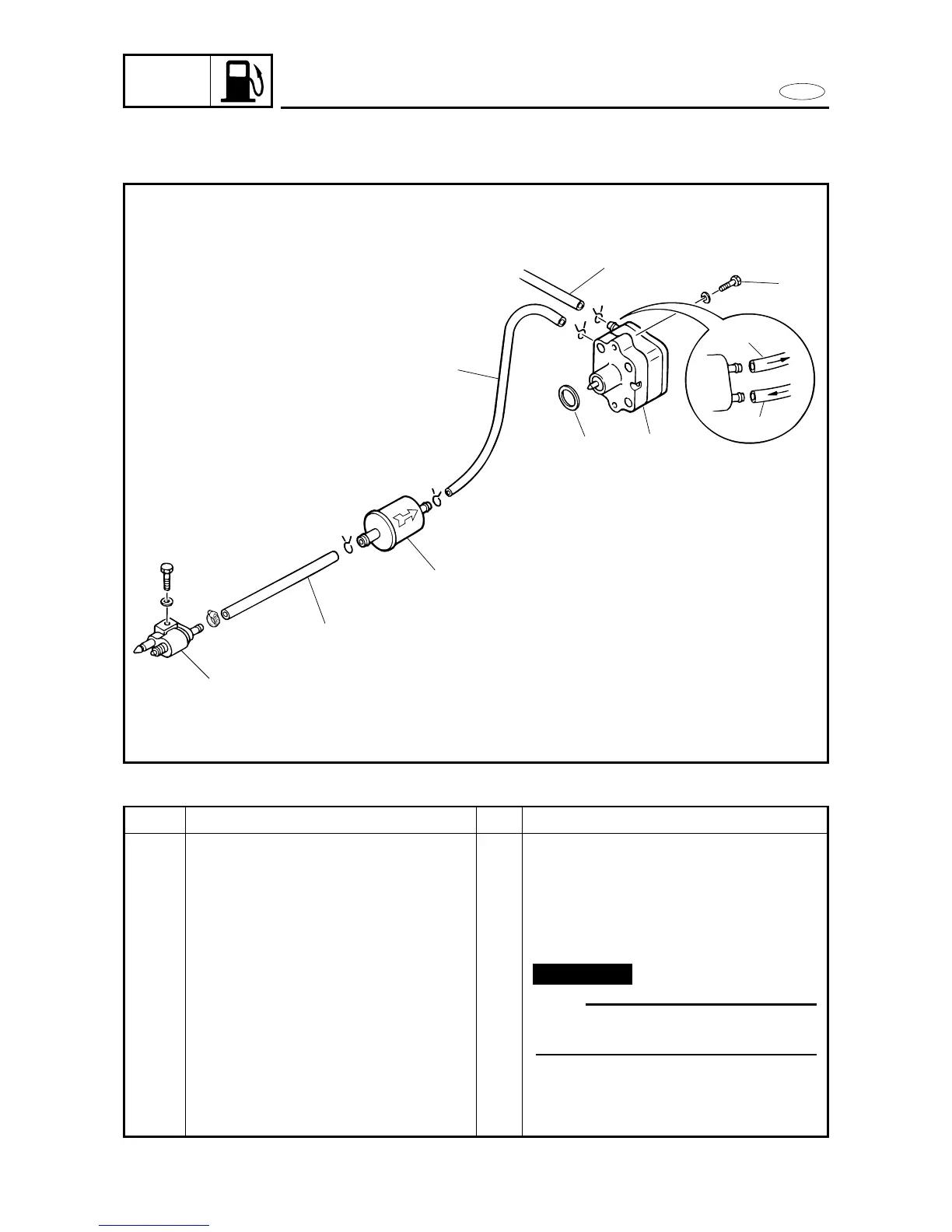

EXPLODED DIAGRAM
1
3
1
2
2
5
4
6
7
8
REMOVAL AND INSTALLATION CHART
