SHIMMING (FT9.9D)
LOWR
6-44
SHIMMING (FT9.9D)
NOTE:
9 There is no need to select shims when
reassembling with the original case and
inner parts.
9 Shim calculations are required when
reassembling with the original inner parts
and a new case (the difference between
the original inner parts and the new case).
9 Measurements and adjustments are
required when replacing an inner part(s).
Mv3
Calculated numeral
more than or less
Shim
1.13 1.20 1.13
1.20 1.30 1.20
SHIM SELECTION
Pinion gear shim

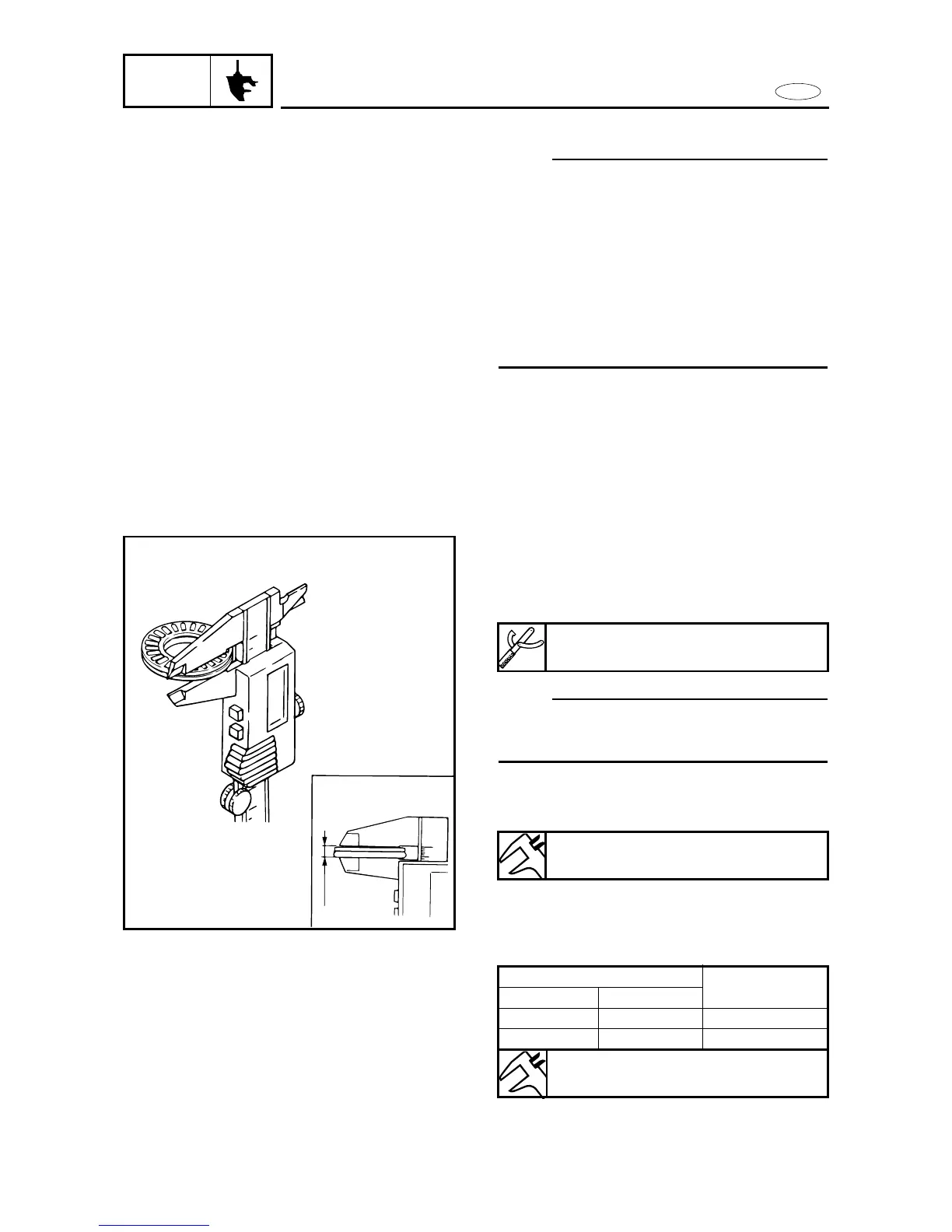

1. Measure:
9 Measurement (Mv
3)
NOTE:
Measure the thickness (Mv3) of the bearing
and washer.
2. Calculate:
9 Pinion gear shim thickness (T3)
3. Select:
9 Pinion gear shim
Digital caliper:
90890-06704
Pinion gear shim thickness:
(T3) = 6.05 - Mv
3 mm
Available shim thickness:
1.13 and 1.20 mm
