Yamaha F15A - Oil Pan Exploded Diagram

Q’ty
2
1
1
1
1
1
2
1
1
E
OIL PAN
BRKT
OIL PAN

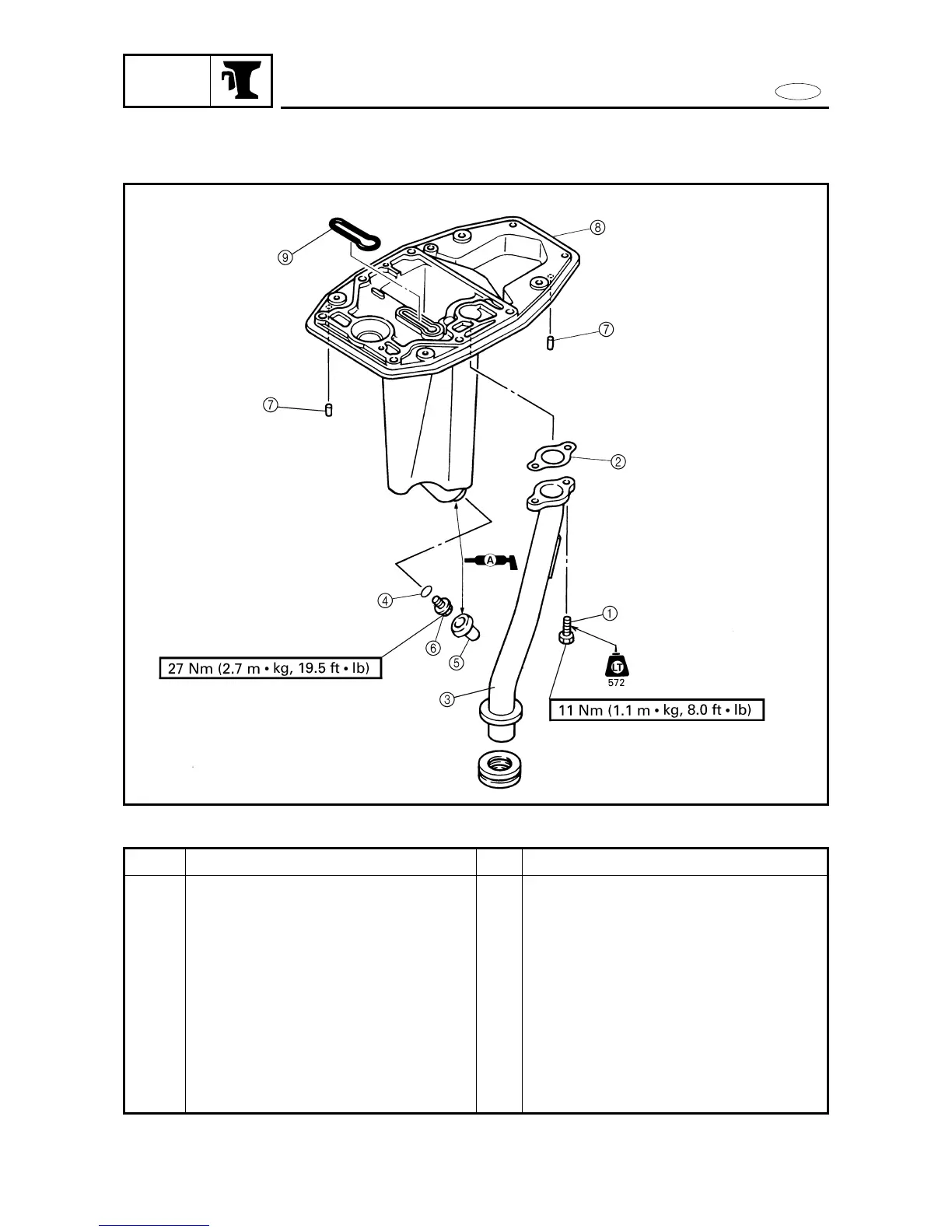

EXPLODED DIAGRAM
7-19
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
9
Service points
Follow the left ”Step” for disassembly.
Reverse the disassembly steps for assembly.
Procedure/Part name
OIL PAN DISASSEMBLY
Bolt
Gasket
Exhaust pipe
Gasket
Drain bolt cap
Drain bolt
Dowel pin
Oil pan
Oil seal
