Yamaha F15A - Dimensions

SPEC
MAINTENANCE SPECIFICATIONS (F9.9C)
2-19
E
L1 mm 475 475 475
(in) (18.7) (18.7) (18.7)
L2 mm 168 168 160.5
(in) (6.6) (6.6) (6.3)
L3 mm 526 526 —
(in) (20.7) (20.7) —
L4 mm 355.5 355.5 355.5
(in) (14.0) (14.0) (14.0)
L5 :S mm 78 78 78
(in) (3.1) (3.1) (3.1)
:L mm 105 105 105
(in) (4.1) (4.1) (4.1)
L6 :S mm 718 718 718
(in) (28.3) (28.3) (28.3)
:L mm 831 831 831
(in) (32.7) (32.7) (32.7)
L7 mm 330.5 317 317
(in) (13.0) (12.5) (12.5)
L8 mm 297 297 —
(in) (11.7) (11.7) —
L10 mm 74.5 74.5 74.5
(in) (2.9) (2.9) (2.9)
H1 :S mm 706 706 706
(in) (27.8) (27.8) (27.8)
:L mm 833 833 833
(in) (32.8) (32.8) (32.8)
H2 mm 375 375 375
(in) (14.8) (14.8) (14.8)
H3 mm 135 135 135
(in) (5.3) (5.3) (5.3)
H4 :S mm 440 440 440
(in) (17.3) (17.3) (17.3)
:L mm 568 568 568
(in) (22.4) (22.4) (22.4)
H5 mm 549 549 —
(in) (21.6) (21.6) —
H6 :S mm 572 572 572
(in) (22.5) (22.5) (22.5)
:L mm 641 641 641
(in) (25.2) (25.2) (25.2)
H7 mm 166.5 262 262
(in) (6.6) (10.3) (10.3)
H8 mm 10 10 —
(in) (0.4) (0.4) —
H9 mm 589 589 589
(in) (23.2) (23.2) (23.2)
H10 mm 35 35 35
(in) (1.4) (1.4) (1.4)
W1 mm 183 183 183
(in) (7.2) (7.2) (7.2)
W2 mm 244.5 244.5 —
(in) (9.6) (9.6) —
W5 mm 350 350 350
(in) (13.8) (13.8) (13.8)
W6 mm 576 576 —
(in) (22.7) (22.7) —
A1 Degree 45 45 45
A2* Degree 63 63 63
A3 Degree 40 40 40
Symbol
Unit
F9.9CE
F9.9CMH
F9.9CEH
Model(s)

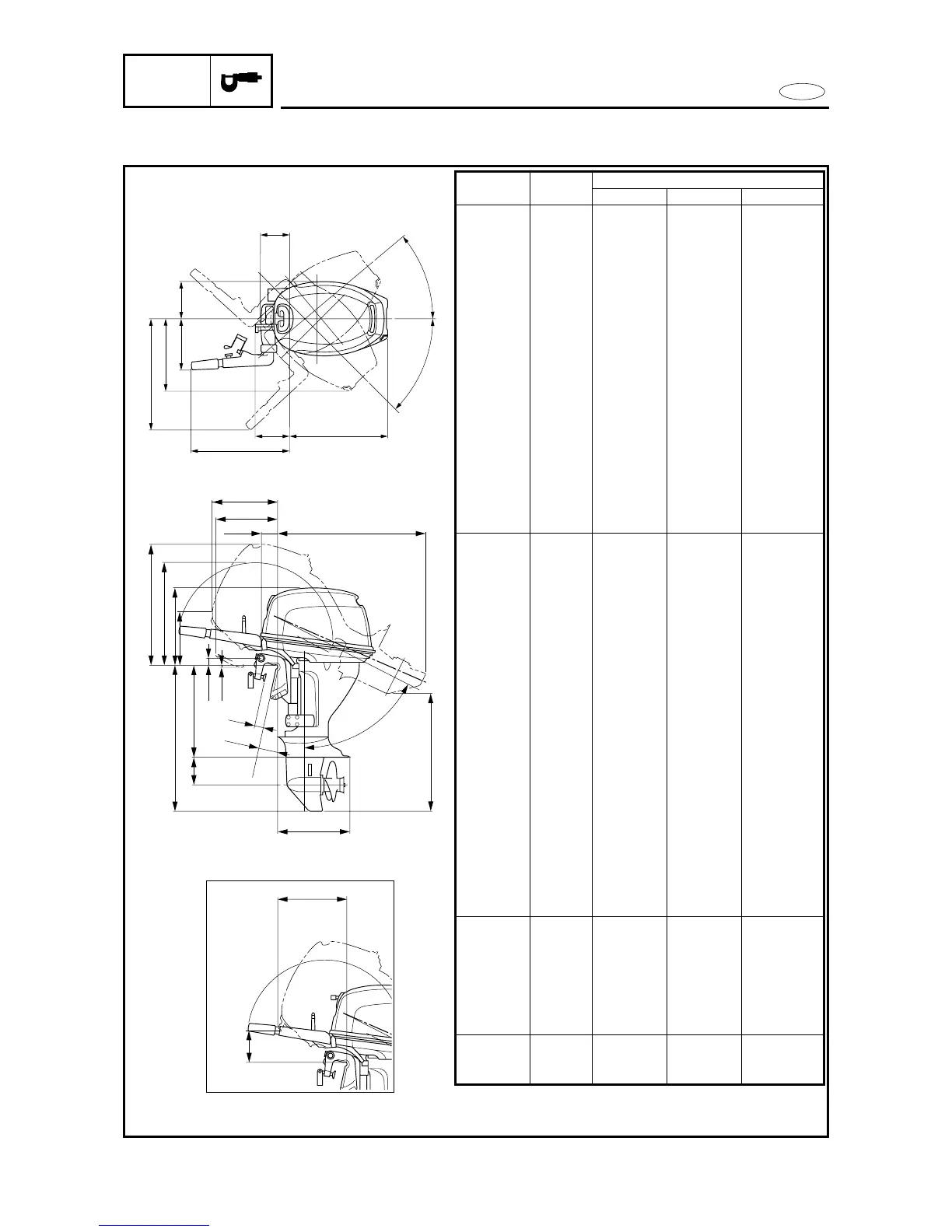

DIMENSIONS
Outboard dimension
L7
L8
L10 L6
C1
L5
L4
H9
H5
H2
H7
H1
H3 H4
H10
H8
H6
A2
L1
L2
L3
A1
A3
W6
W5
W1W2
L7
H7
L2
(for F9.9CE)
(for F9.9CMH)
*Tilt lock position
