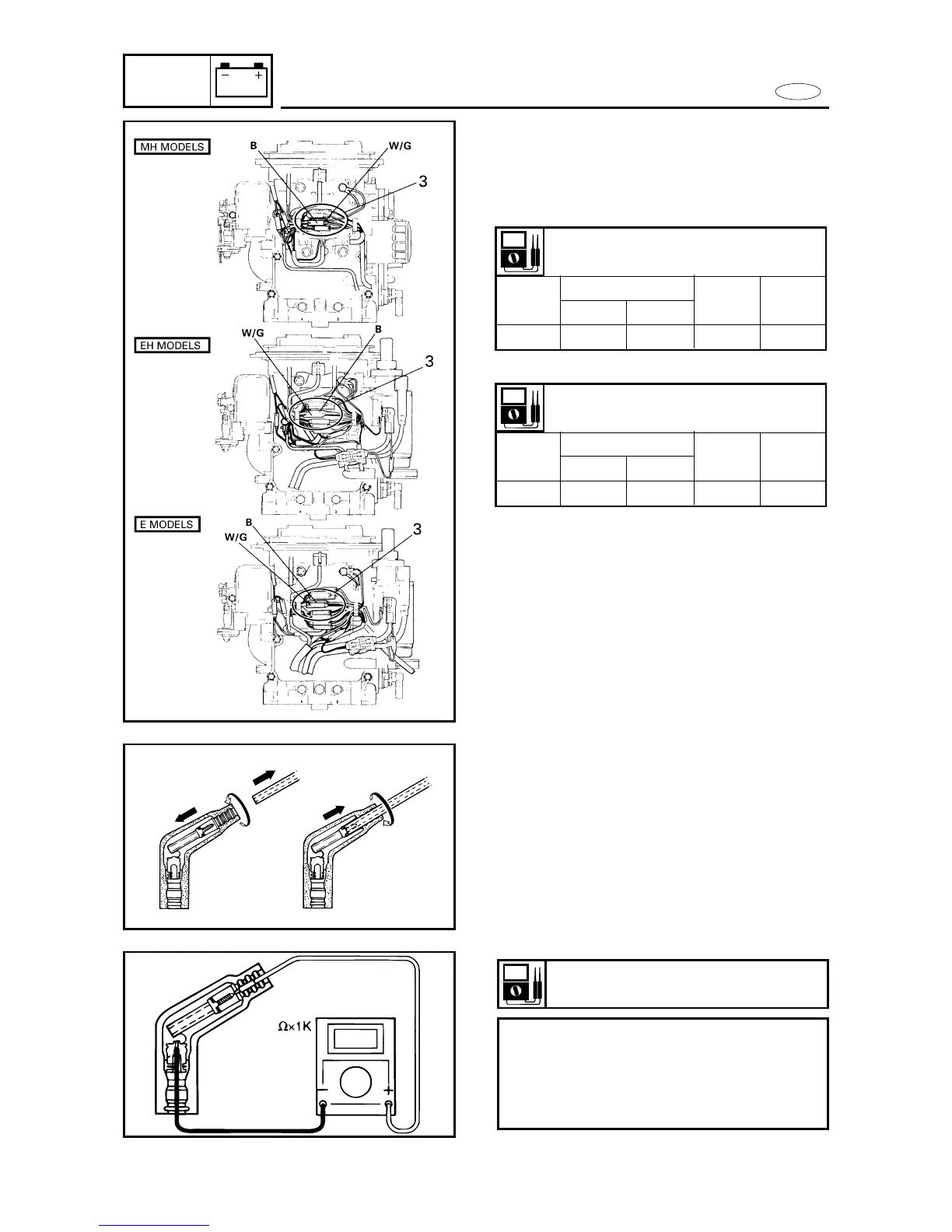

Yamaha F15A - Spark Plug Cap

E
IGNITION SYSTEM
ELEC
SPARK PLUG
Refer to "GENERAL" in chapter 3.
SPARK PLUG CAP
1. Inspect:
9 Spark plug cap
Loose → Tighten.
Cracks/damage → Replace.
2. Measure:
9 Spark plug cap resistance
Out of specification → Replace.
8-14
3. Measure:
9 Pulser coil output peak voltage
Below specification → Replace the
pulser coil.
Output peak voltage
W/G-B
r/min
Cranking
1,500 3,500
Opened Closed
V 4.0 3.5
11.0 23
6 A model
Output peak voltage
W/G-B
r/min
Cranking
1,500 3,500
Opened Closed
V 4.0 3.5
11.0 23
10 A model
Replacement steps:
8 To remove the spark plug cap turn it
counterclockwise.
8 To install the spark plug cap turn it
clockwise until it is tight.
Spark plug cap resistance
4.0 ~ 6.0 kΩ
