STEERING HANDLE ASS’Y
(F15AMH, F15AEH/F9.9CMH, F9.9CEH)
BRKT
STEERING HANDLE ASS’Y (F15AMH, F15AEH/F9.9CMH, F9.9CEH)

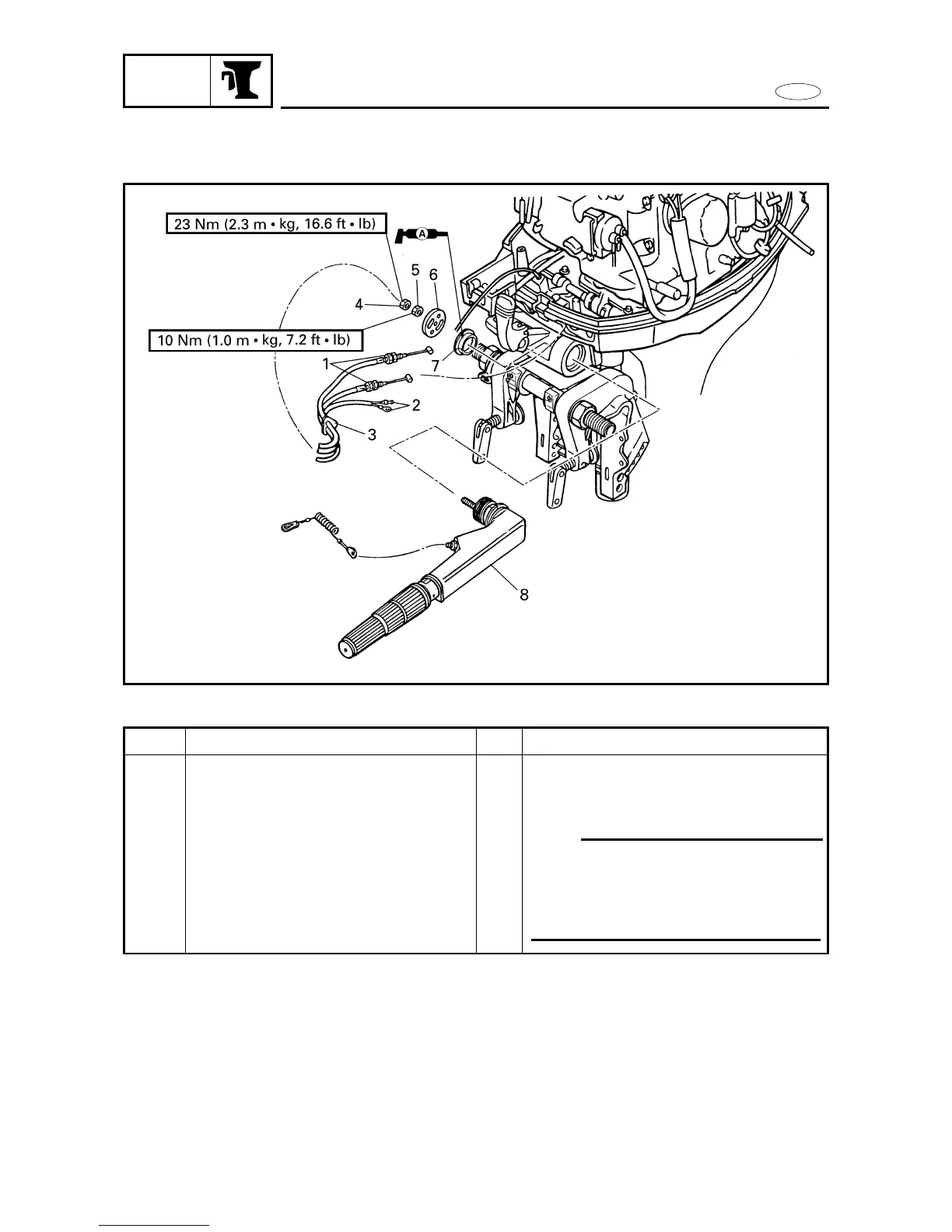

EXPLODED DIAGRAM
7-1
REMOVAL AND INSTALLATION CHART
Step
1
Q’ty
2
Service points
Follow the left ”Step” for removal.
NOTE:
When adjusting the throttle cables,
make sure the throttle control cam
stoppe touches the bracket stopper
(throttle fully-opened) and then tighten
the locknuts.
Procedure/Part name
STEERING HANDLE ASS’Y REMOVAL
Flywheel magneto cover (for EH models)
Manual starter (for MH models)
Throttle cable
