Yamaha F15A - Propeller Shaft Housing Ass’y (Ft9.9 D)

E
PROPELLER SHAFT HOUSING ASS’Y (FT9.9D)
LOWR
PROPELLER SHAFT HOUSING ASS’Y (FT9.9D)

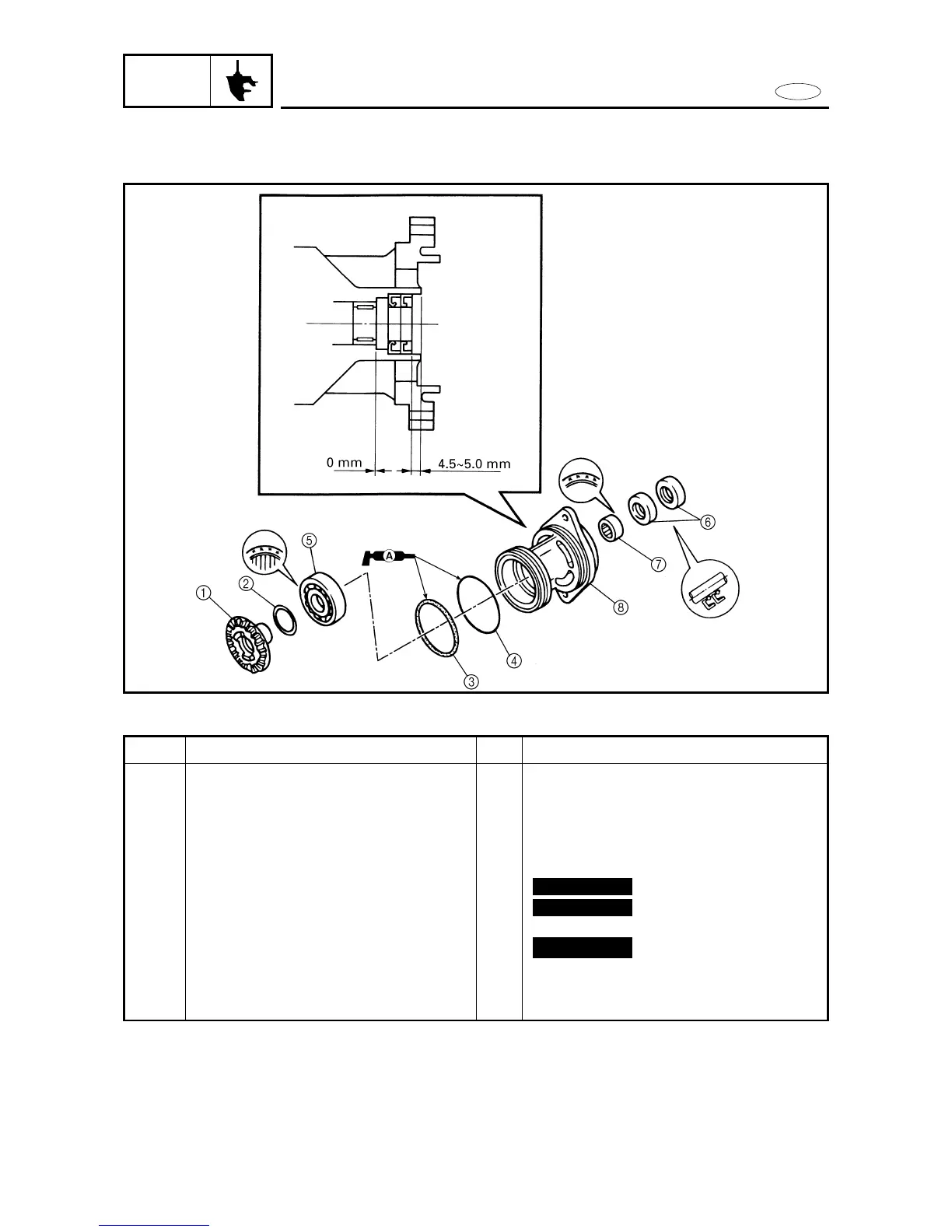

EXPLODED DIAGRAM
6-34
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
Q’ty
1
*
1
1
1
2
1
1
Service points
Follow the left ”Step” for disassembly.
Reverse the disassembly steps for assembly .
Not reusable
Not reusable
Not reusable
Procedure/Part name
PROPELLER SHAFT HOUSING
ASS’Y DISASSEMBLY
Propeller shaft housing ass’y
Reverse gear
Reverse gear shim
O-ring
O-ring
Ball bearing
Oil seal
Needle bearing
Propeller shaft housing
*: as required
