BOTTOM COWLING ASS’Y (F15A/F9.9C)
BRKT
BOTTOM COWLING ASS’Y (F15A/F9.9C)

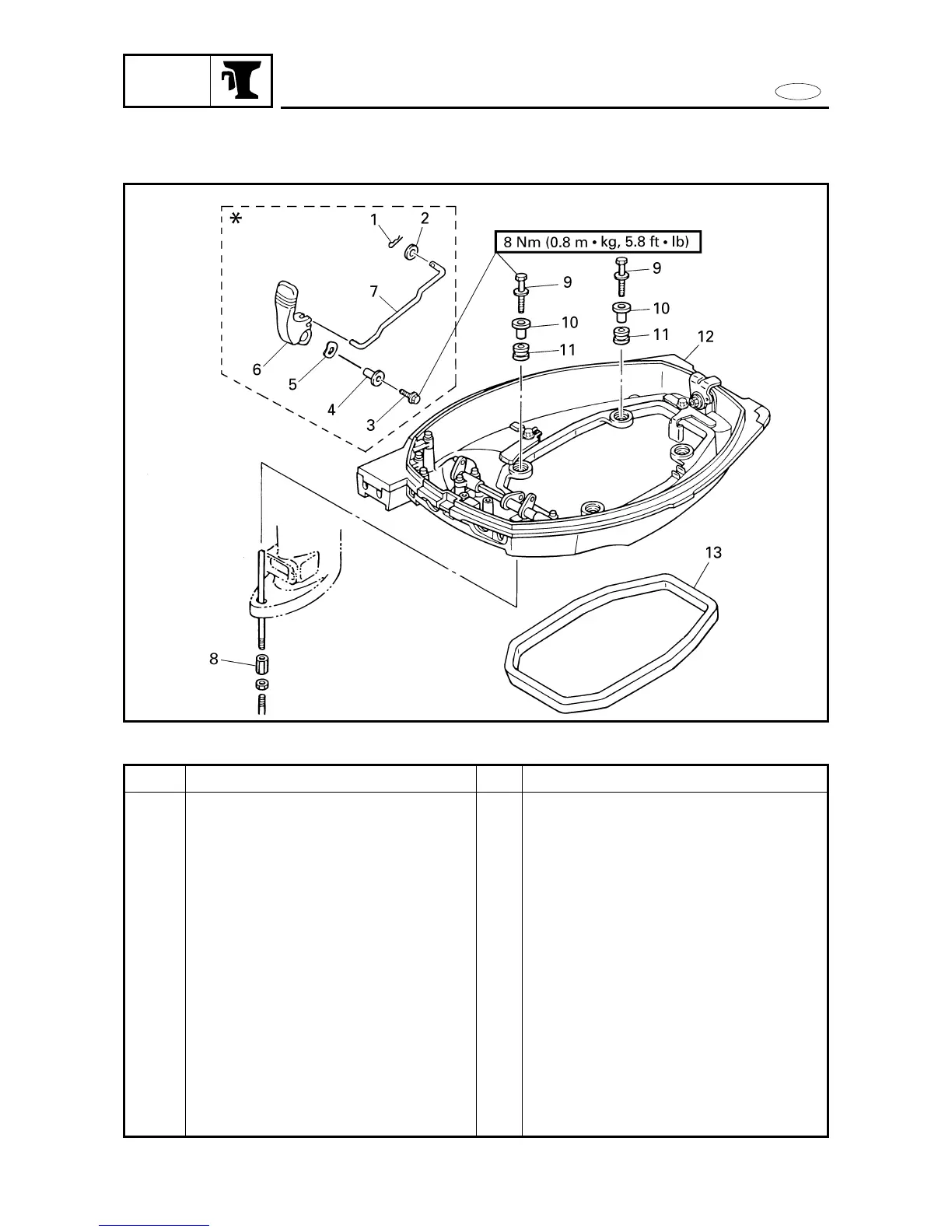

EXPLODED DIAGRAM
7-11
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
9
10
11
12
13
Q’ty
1
1
1
1
1
1
1
1
4
4
4
1
1
Service points
Follow the left ”Step” for removal.
Front: M6 x 25 mm-2/ Rear: M6 x 35 mm-2
Reverse the removal steps for installation.
Procedure/Part name
BOTTOM COWLING ASS’Y REMOVAL
Power unit
Clip
Washer
Bolt
Collar
Wave washer
Shift lever (for MH/EH models)
Shift link rod (for MH/EH models)
Shift rod nut
Bolt
Collar
Grommet
Bottom cowling ass’y
Rubber seal
*: F15AMH, F15AEH/F9.9CMH, F9.9CEH
