Yamaha F15A - Rectifier

E
CHARGING SYSTEM
ELEC
1
2
3
4
1
2
3
4
FUSE
Refer to “STARTING SYSTEM”.
BATTERY
Refer to “GENERAL” in chapter 3.
8-31

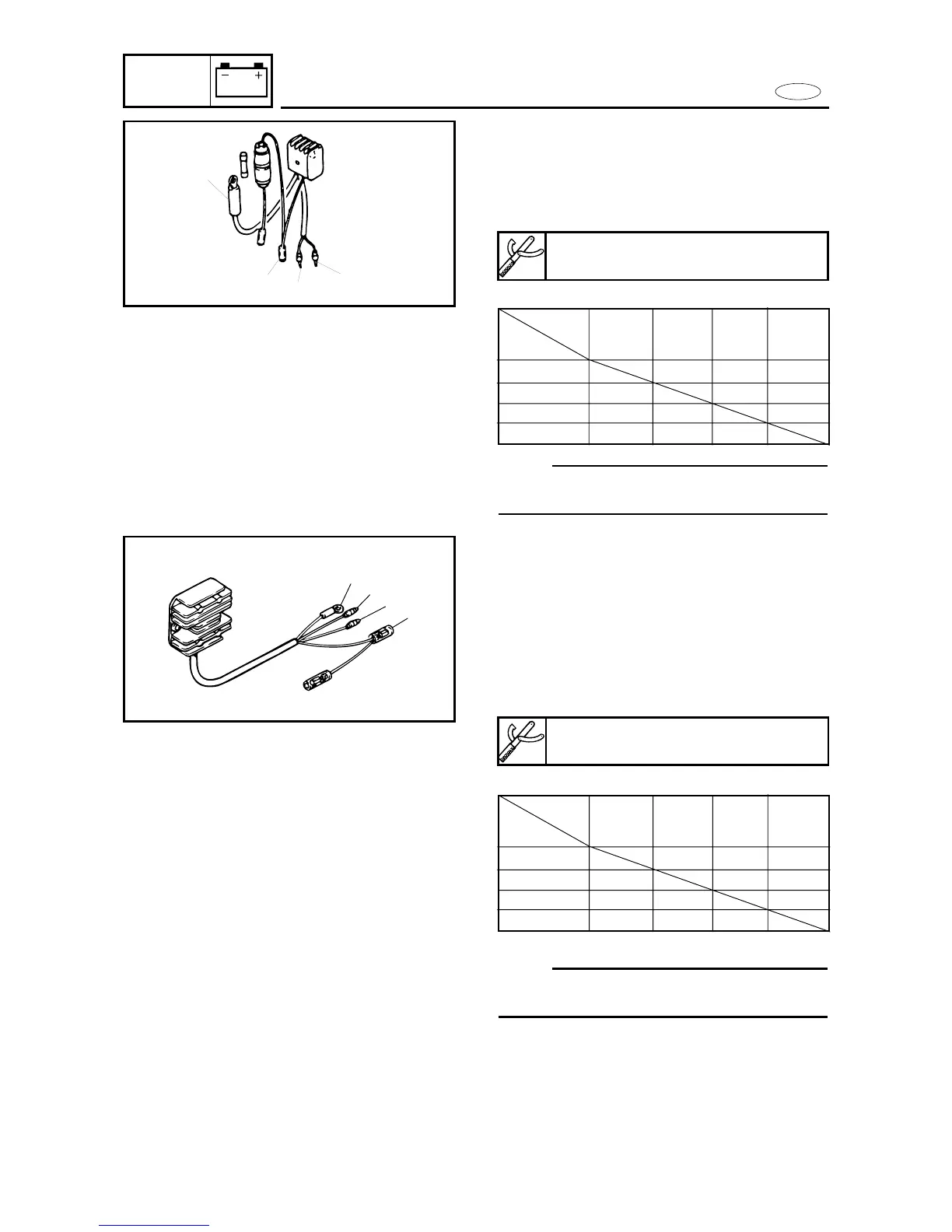

RECTIFIER/REGULATOR
(EH/E MODELS and FT9.9D)
1. Continuity:
9 Continuity and resistance
Out of specification → Replace.
6G8 Unit: Ω
∞: No continuity
NOTE:
A digital tester cannot be used for this
inspection.
*: The measured value is not affected by
tester lead connections.
Tester 4
-+1 Red 2 Black 3 Green Green/
Tester White
1 Red ∞∞∞
2 Black 100 30 30
3 Green 30 ∞∞
4
Green/White 30 ∞∞
RECTIFIER (EH MODELS for Europe
(except FT9.9D))
1. Check:
9 Continuity
Out of specification → Replace.
6G1
NOTE:
A digital tester cannot be used for this
inspection.
1: Continuity
∞: No continuity
*: Measured value is not affected by
tester leads connection.
Tester
-+ 1 Black 2 Green 3 Green 4 Red
Tester
1 Black ∞ 11
2
Green ∞ 1 ∞
3 Green ∞∞ ∞
4 Red 111
Yamaha pocket tester:
YU-03112/90890-03112
Yamaha pocket tester:
YU-03112/90890-03112
