3-21

INSP

ADJ

GENERAL

9 Throttle shaft inner surface

(for MH/EH models)

9 Throttle cable inner wire

(carburetor side)

9 Shift cable inner wire

(for FT9.9D)

9 Grease nipple (cowling lock lever)

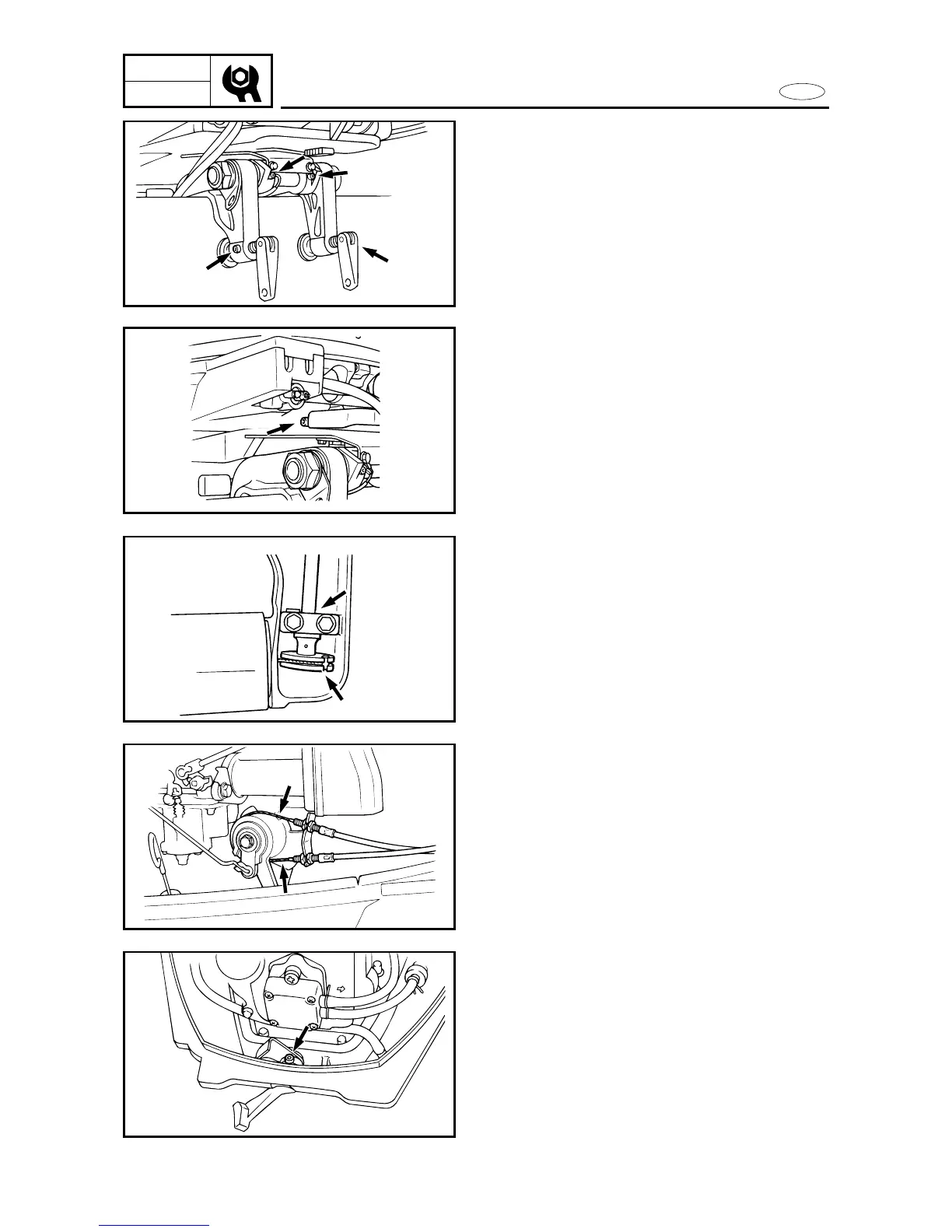

Lubrication points

1. Apply:

9 Water resistant grease

Refer to the following illustrations for

lubrication points .

9 Grease nipple (clamp bracket bolt)

9 Grease nipple

(clamp handle screw: for MH/EH models)

9 Grease nipple

(steering friction lever:for MH/EH

models)
