Yamaha F15A - Bracket Dimension

SPEC
MAINTENANCE SPECIFICATIONS (F9.9C)
2-20
E

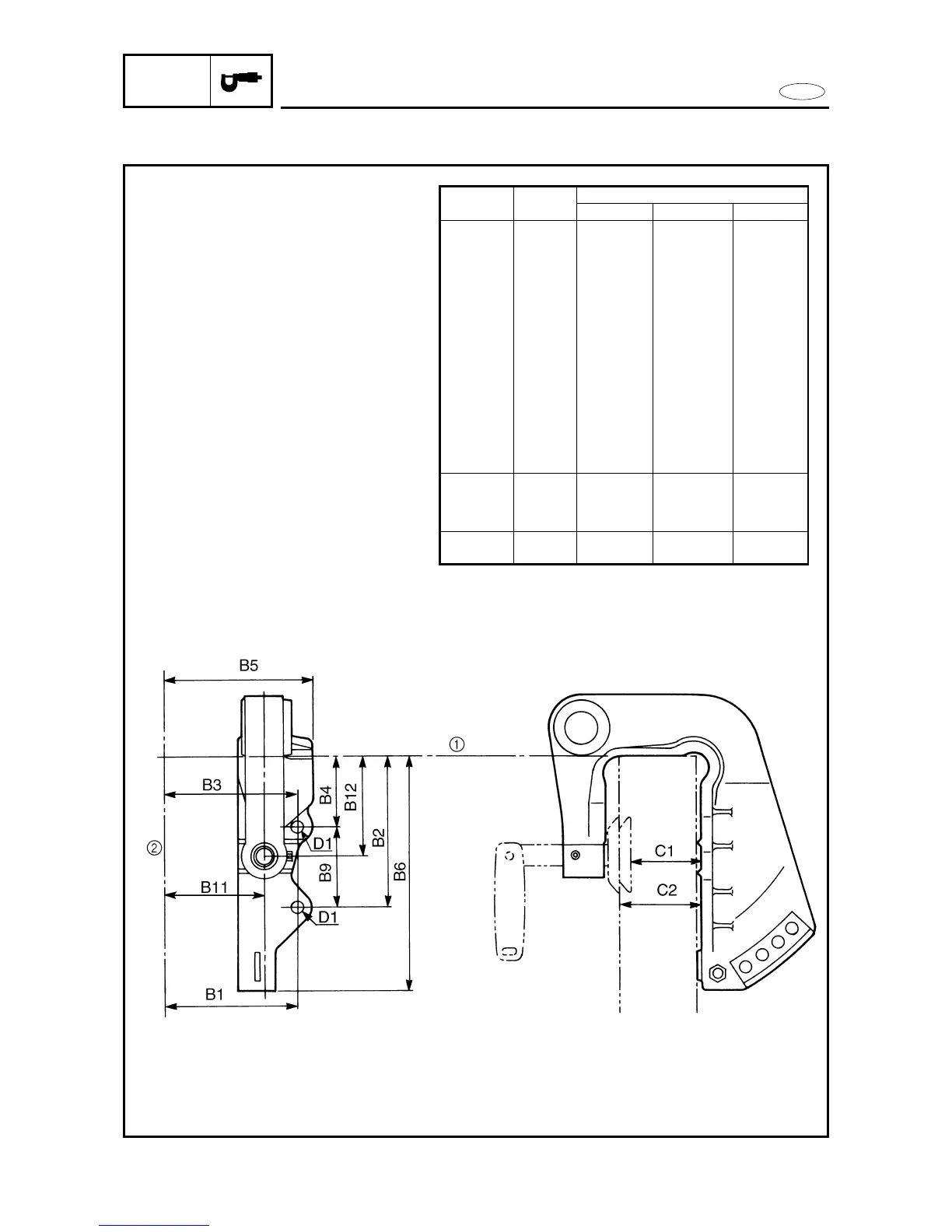

Bracket dimension
B1 mm 92.5 92.5 92.5
(in) (3.6) (3.6) (3.6)
B2 mm 103.5 103.5 103.5
(in) (4.1) (4.1) (4.1)
B3 mm 92.5 92.5 92.5
(in) (3.6) (3.6) (3.6)
B4 mm 49 49 49
(in) (1.9) (1.9) (1.9)
B5 mm 103 103 103
(in) (4.1) (4.1) (4.1)
B6 mm 176 176 176
(in) (6.9) (6.9) (6.9)
B9 mm 54.5 54.5 54.5
(in) (2.1) (2.1) (2.1)
B11 mm 70.5 70.5 70.5
(in) (2.8) (2.8) (2.8)
B12 mm 69 69 69
(in) (2.7) (2.7) (2.7)
C1 mm 44 44 44
(in) (1.7) (1.7) (1.7)
C2 mm 55 55 55
(in) (2.2) (2.2) (2.2)
D1 mm 8.3 8.3 8.3
(in) (0.3) (0.3) (0.3)
Symbol
Unit
F9.9CE
F9.9CMH F9.9CEH
Model(s)
1 Top of transom plate
2 Center line
