PROPELLER SHAFT HOUSING ASS’Y AND
PROPELLER SHAFT ASS’Y (FT9.9D)
LOWR
PROPELLER SHAFT HOUSING ASS’Y AND PROPELLER SHAFT ASS’Y (FT9.9D)

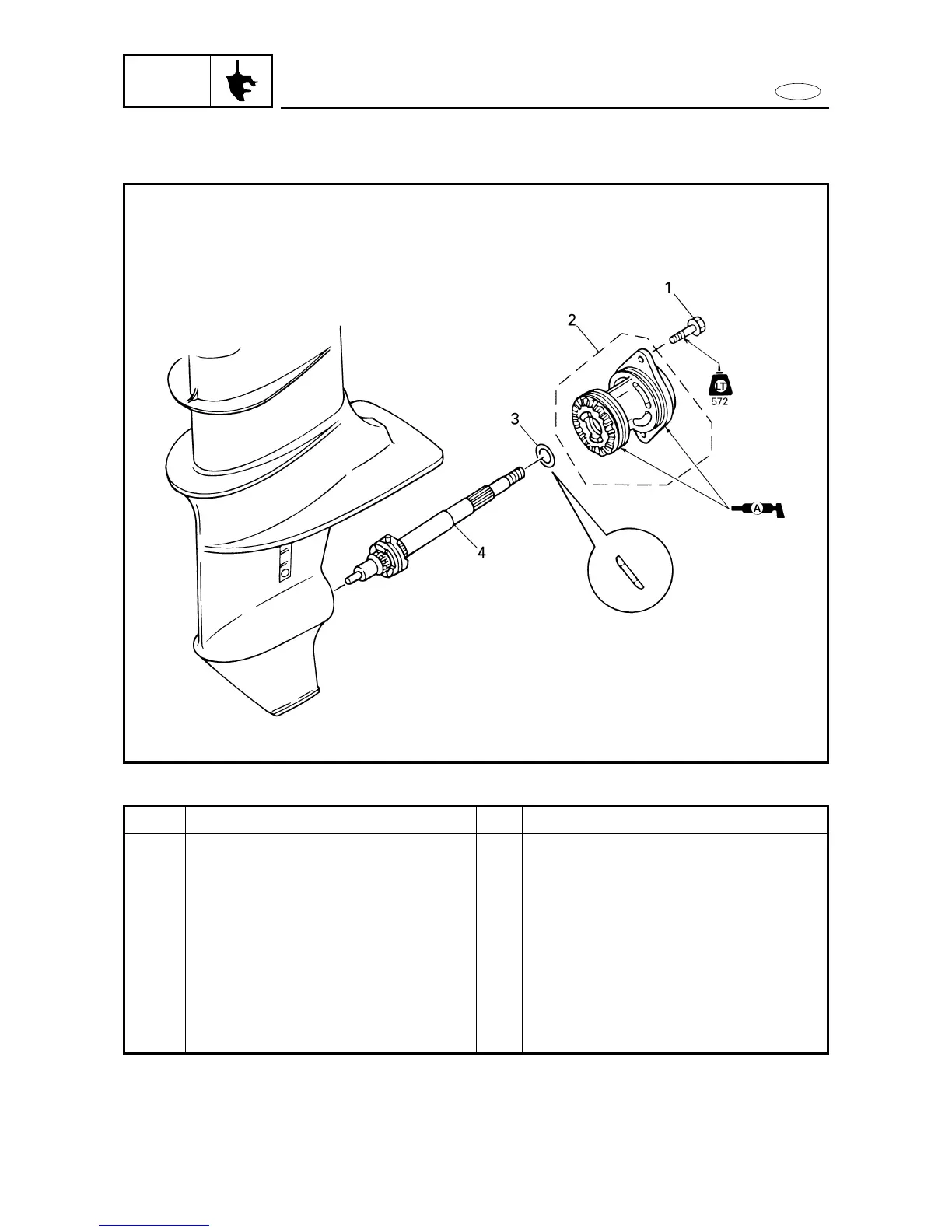

EXPLODED DIAGRAM
6-30
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
Q’ty
2
1
1
1
Service points
Follow the left ”Step” for removal.
Reverse the removal steps for installation.
Procedure/Part name
PROPELLER SHAFT HOUSING ASS’Y
AND PROPELLER SHAFT ASS’Y
REMOVAL
Gear oil
Propeller
Bolt
Propeller shaft housing ass’y
Thrust washer
Propeller shaft ass’y
