Yamaha F15A - Bearings Inspection; Propeller Shaft Housing Ass’y Assembly; Propeller Shaft Housing Inspection

E
PROPELLER SHAFT HOUSING ASS’Y (F15A/F9.9C)
LOWR
1
2
a
b
3.0 ~ 3.5 mm
0 mm
6-11

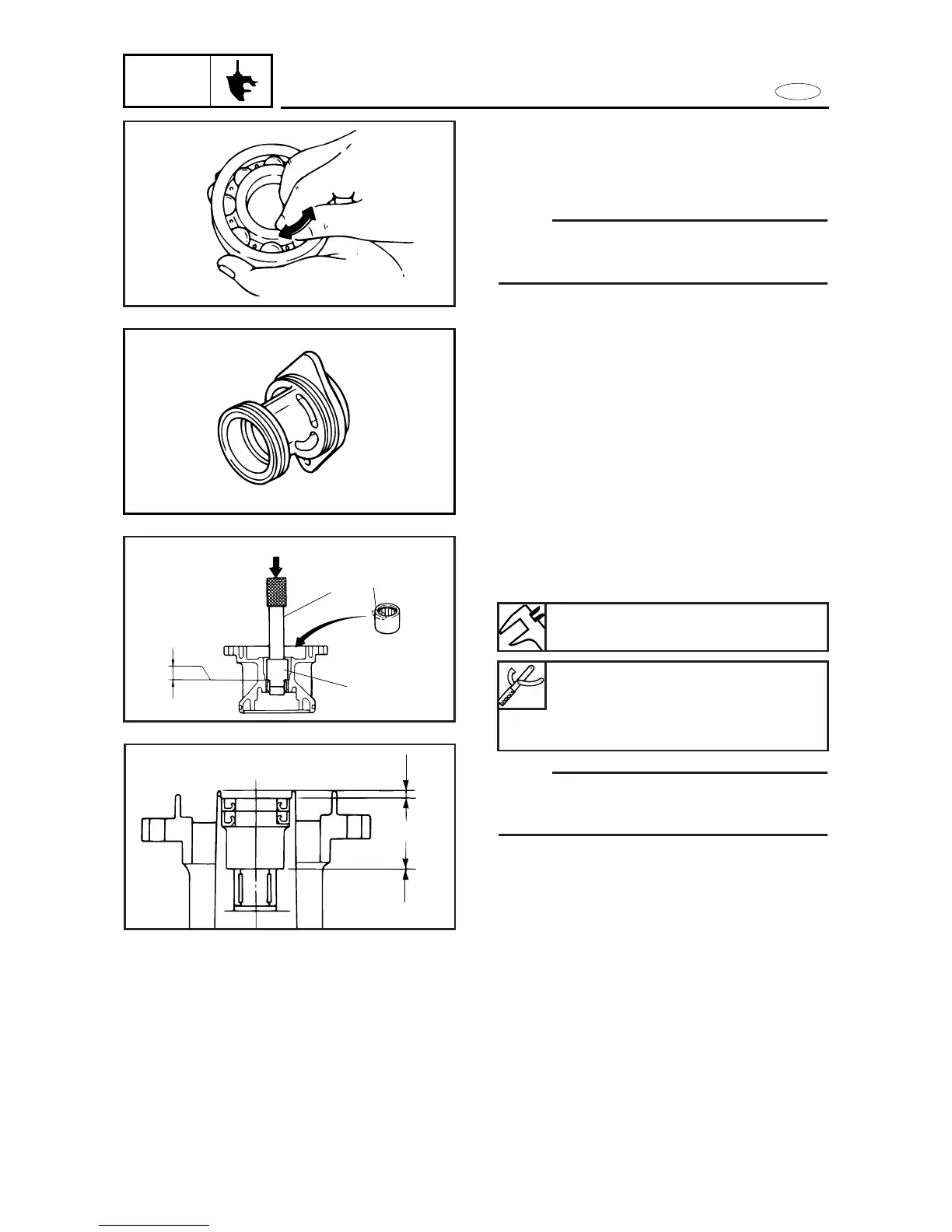

Propeller shaft housing ass’y assembly
1. Install:
9 Needle bearing
NOTE:
Install the needle bearing with its manufac-
turer’s marks
b facing up.
Driver rod 1:
YB-06071/90890-06604
Needle bearing attachment 2:
YB-06081/90890-06616
Needle bearing depth a:
0 mm (0 in)
Propeller shaft housing inspection
1. Clean:
9 Propeller shaft housing
(with a soft brush and solvent)
2. Inspect:
9 Propeller shaft housing
Cracks/damage → Replace.
Bearings inspection
1. Inspect:
9 Bearing
Pitting/rumbling → Replace.
NOTE:
Rotate the bearing and check if it turns
smoothly.
