E
CONTROL UNIT
POWR
CONTROL UNIT

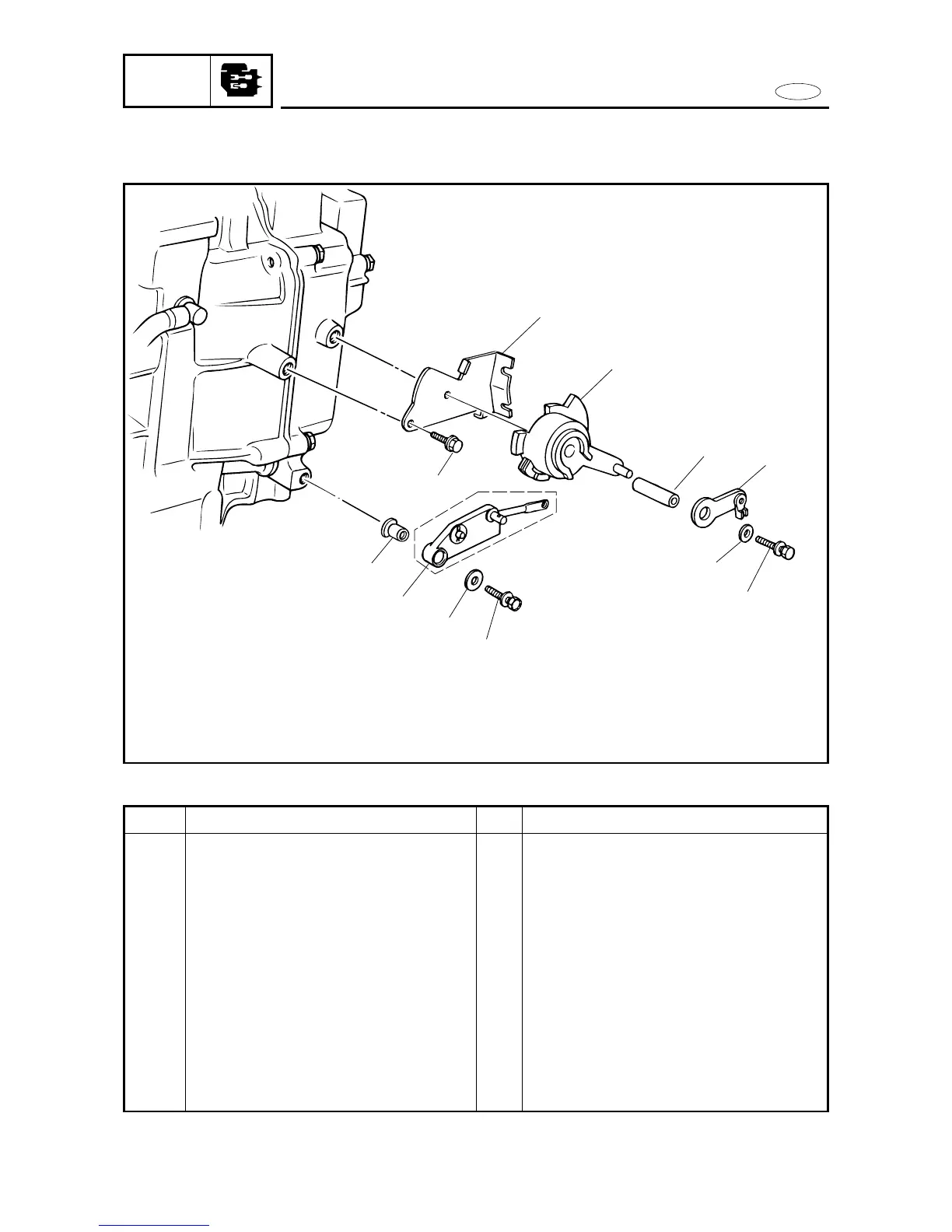

EXPLODED DIAGRAM
5-18
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
9
10
11
Q’ty
1
1
1
1
1
1
1
1
1
1
1
Service points
Follow the left ”Step” for removal.
Reverse the removal steps for installation.
Procedure/Part name
CONTROL UNIT REMOVAL
Bolt
Washer
Throttle control lever
Collar
Throttle control cam
Bolt
Bracket
Bolt (link rod)
Washer
Collar
Shift link rod ass’y (except for Europe)
