Yamaha F15A - Camshaft and Valves; Exploded Diagram

E
CAMSHAFT AND VALVES
POWR
CAMSHAFT AND VALVES

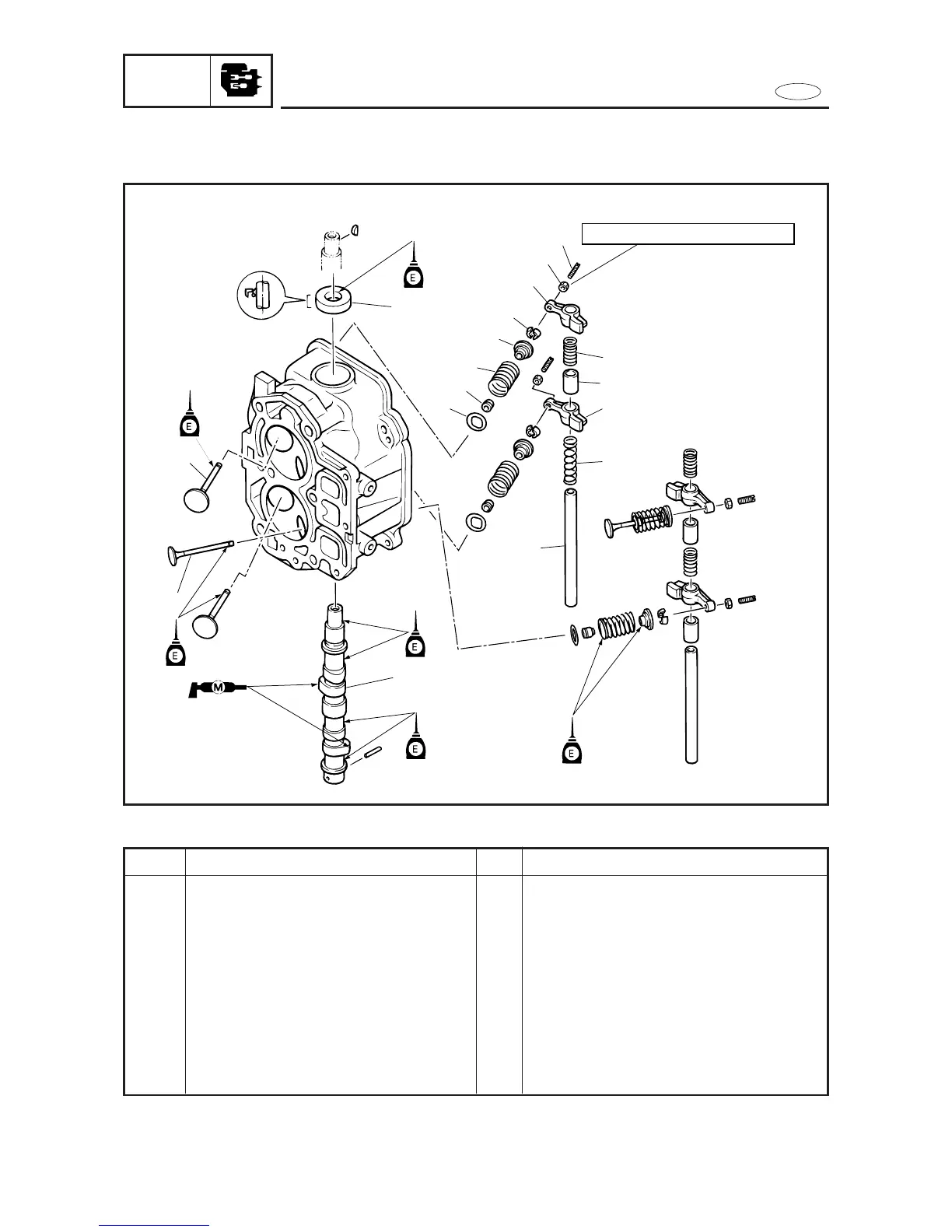

EXPLODED DIAGRAM
8
14
3
4
7
5
6
13
15
16
12
11
10
7
1
2
9
14 Nm (1.4m•kg, 10.0 ft•lb)
5-23
Step
1
2
3
4
5
6
7
8
9
Q’ty
4
4
2
1
3
3
4
1
1
Service points
Follow the left ”Step” for removal.
Procedure/Part name
CAMSHAFT AND VALVE REMOVAL
Locknut
Valve adjusting screw
Rocker arm shaft
Spring 1
Collar
Spring 2
Rocker arm
Camshaft
Oil seal
REMOVAL AND INSTALLATION CHART
