Yamaha F15A - Timing Belt; Valve Clearance

3-12
INSP
ADJ
E
POWER UNIT
a
1
2
6. Install:
9 Oil filler cap
7. Check:
9 Engine oil level
Refer to ”Engine oil level”.
NOTE:
9 Run the engine for several minutes, turn it
off, and check the engine oil level.
9 If the engine oil is still not at the proper
level, add/drain as needed.

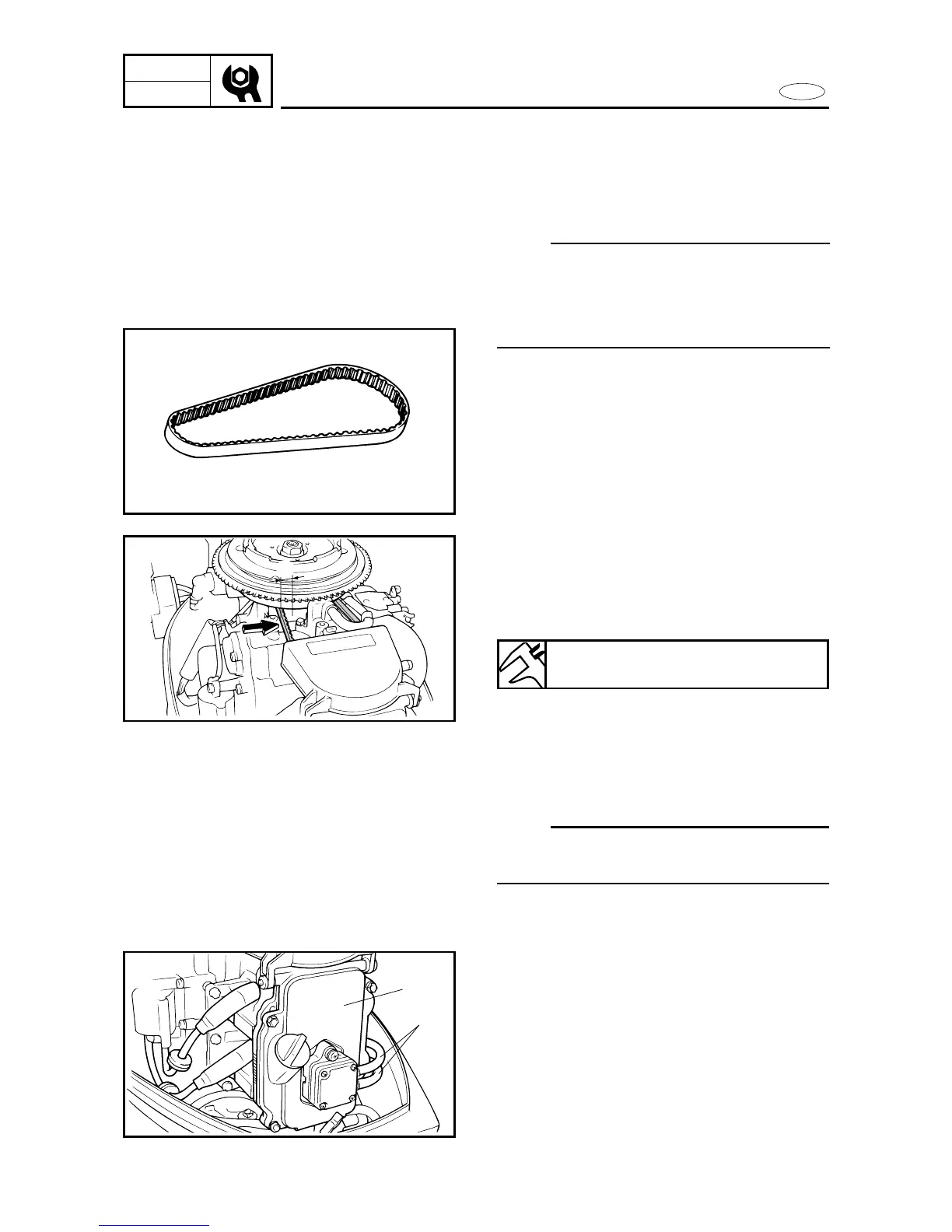

Timing belt
1. Inspect:
9 Timing belt
Wear/damage → Replace.
2. Check:
9 Timing belt slack a
(Push the timing belt with your finger.)
Out of specification → Replace.
Timing belt slack a:
0 ~ 10 mm (0~0.4 in)
Valve clearance
NOTE:
Valve clearance adjustment should be made
on a cold engine, at room temperature.
1. Remove:
9 Top cowling
9 Flywheel cover (EH/E models)
9 Manual starter (MH models)
9 Driven sprocket cover
9 Spark plug
2. Disconnect:
9 Fuel hoses 1
3. Remove:
9 Cylinder head cover 2
