Yamaha F15A - Steering Friction (Mh;Eh Models for Usa and Canada;Ft9.9 D)

Procedure/Part name
STEERING FRICTION DISASSEMBLY
Lock nut
Plate washer
Bolt
Friction piece
Collar
Friction plate
Friction piece
Washer
Friction lever
Steering lock shaft
Grease nipple
E
STEERING FRICTION (MH/EH MODELS FOR USA
AND CANADA/FT9.9D)
BRKT
STEERING FRICTION (MH/EH MODELS FOR USA AND CANADA/FT9.9D)

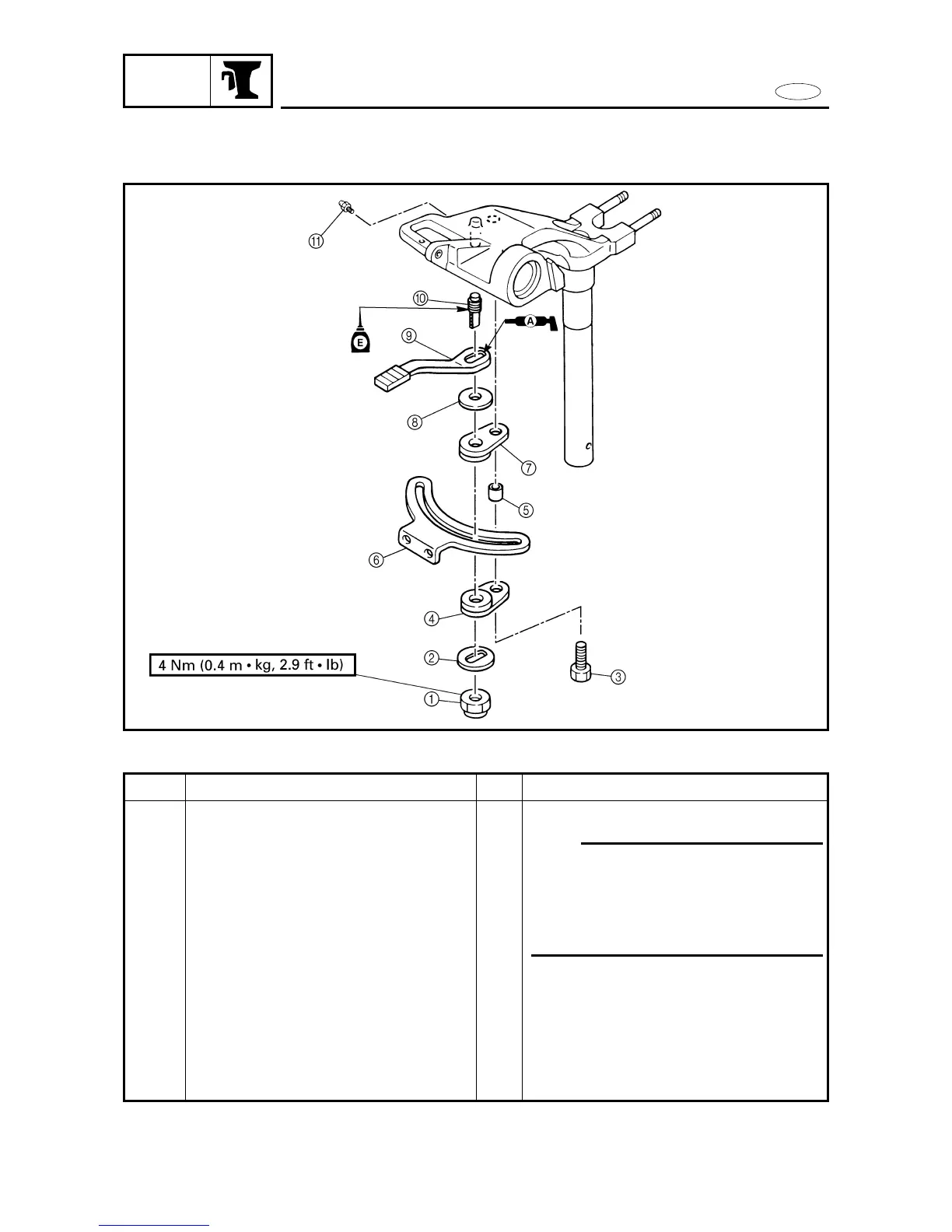

EXPLODED DIAGRAM
7-21
REMOVAL AND INSTALLATION CHART
Step
\
1
2
3
4
5
6
7
8
9
0
q
Q’ty
1
1
1
1
1
1
1
1
1
1
1
Service points
Follow the left ”Step” for disassembly.
NOTE:
During installtion, tighten the locknut
to the specified torque and make sure
the friction lever operates properly. If
it does not operate properly, slightly
loosen or tighten the locknut accord-
ingly.
Reverse the disassembly steps for assembly.
