Yamaha F15A - Swivel Bracket

E
SWIVEL BRACKET
BRKT
SWIVEL BRACKET

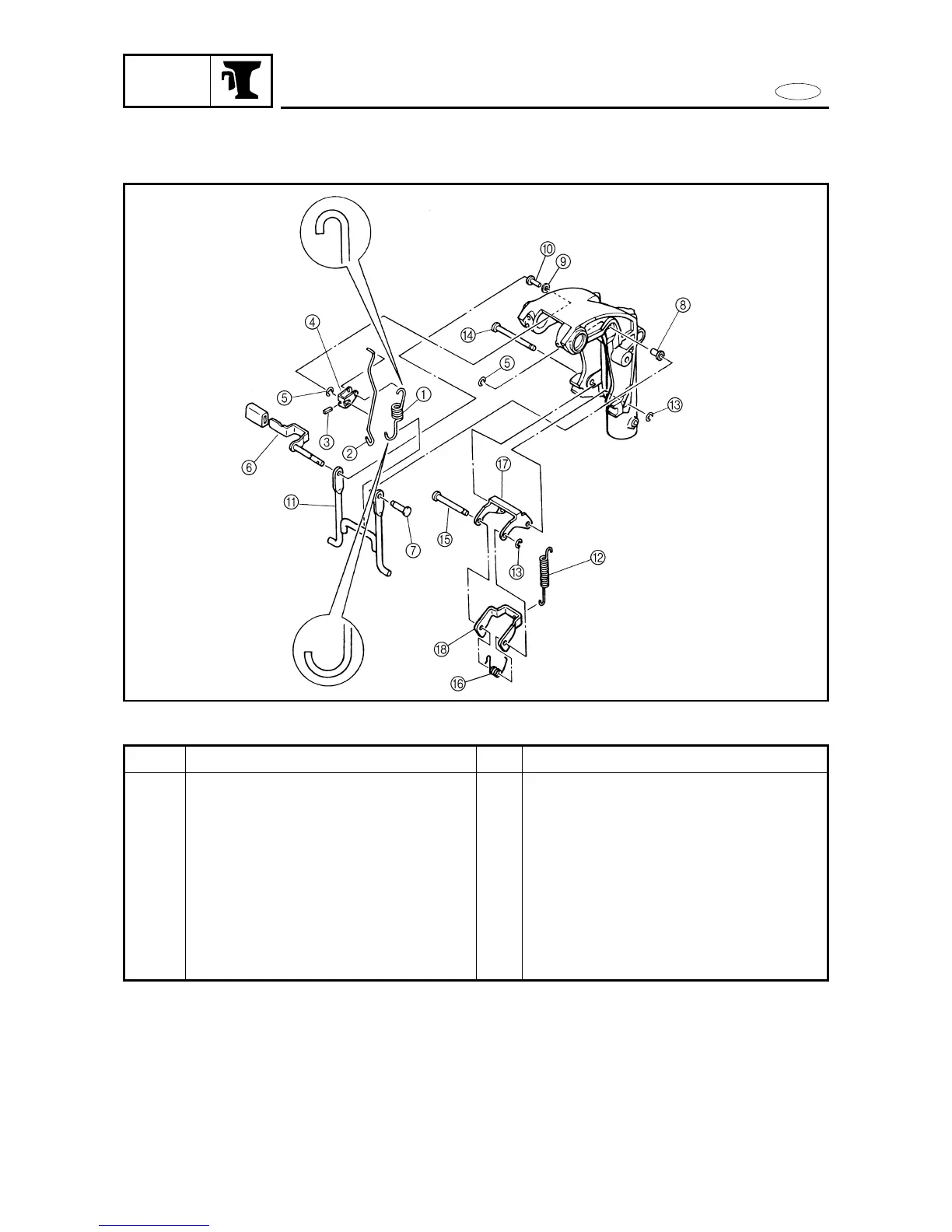

EXPLODED DIAGRAM
7-25
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
9
Q’ty
1
1
1
1
2
1
1
1
1
Service points
Follow the left ”Step” for disassembly.
Reverse the disassembly steps for assembly.
Procedure/Part name
SWIVEL BRACKET DISASSEMBLY
Spring
Tilt lock rod
Pin
Tilt lever
E-clip
Control lever
Shaft pin
Bushing
Washer
