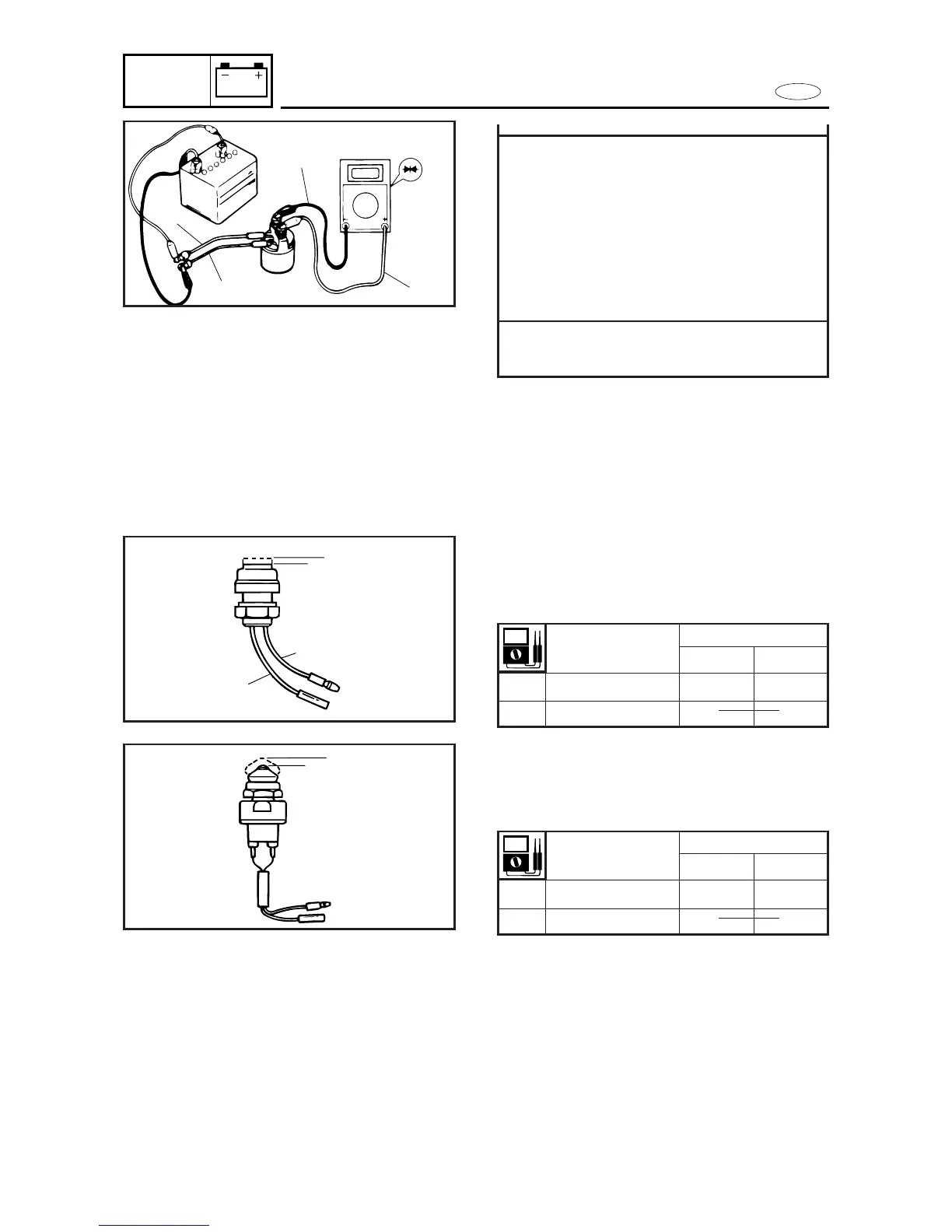

Yamaha F15A - Neutral Switch (Eh Models); Starter Switch (Eh Models)

E
STARTING SYSTEM
ELEC
Br
R
a
b
a
b
Tester positive lead 1 →
Starter relay terminal
Tester negative lead 2 →
Starter relay terminal
Battery positive terminal →
Brown terminal 3
Battery negative terminal →
Black terminal 4
8 Check that there is continuity
between the starter relay terminals.
STARTER SWITCH (EH MODELS)
1. Check:
9 Continuity
No continuity → Replace.
NEUTRAL SWITCH (EH MODELS)
1. Check:
9 Continuity
No continuity → Replace.
8-22
Switch Lead color
Position Red Brown
a Home position
b Depressed 11
Switch Lead color
Position Brown Brown
a Home position
b Depressed 11
