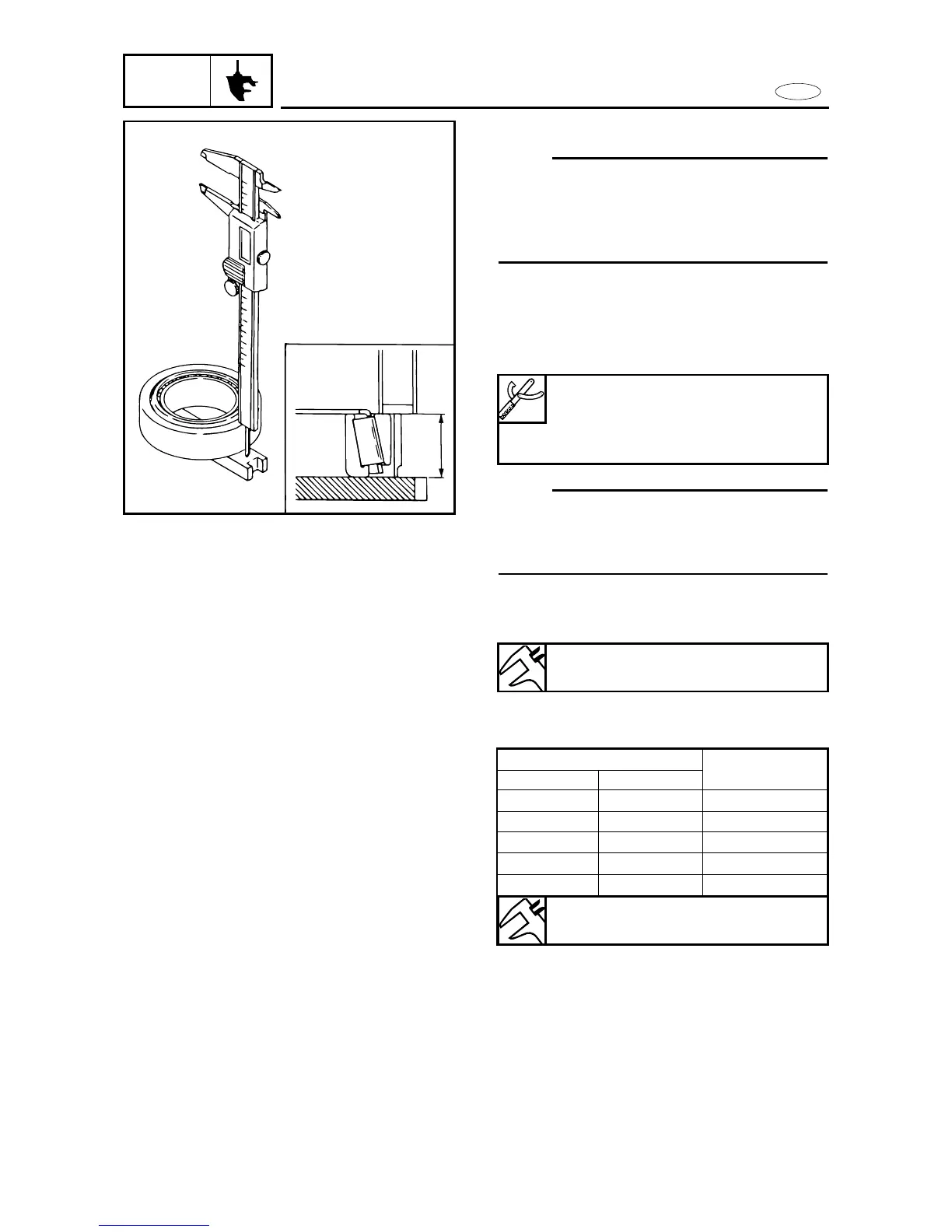

Forward gear shim
NOTE:
Find the forward gear shim thickness (T1)
by selecting shims until the specified mea-
surement (Mv
1) is obtained with the spe-
cial tool.
1. Measure:
9 Measurement (Mv
1)
NOTE:
Measure the length between the shimming
plate and the bearing outer race after turn-
ing the outer race 2 or 3 times.
2. Calculate:
9 Forward gear shim thickness (T1)
3. Select:
9 Forward gear shim
Shimming plate:
90890-06701
Digital caliper:
90890-06704
Forward gear shim thickness:
(T1) = 16.50 - Mv
1
Calculated numeral
Shim
more than or less
0 0.1 — (0)
0.1 0.2 0.1
0.2 0.3 0.2
0.3 0.4 0.3
0.4 0.5 0.4
Available shim thickness:
0.1, 0.2, 0.3 and 0.4 mm
