Reverse gear shim
NOTE:
Find the reverse gear shim thickness (T2)
by selecting shims until the specified mea-
surement (Mv
2) is obtained with the spe-
cial tool.

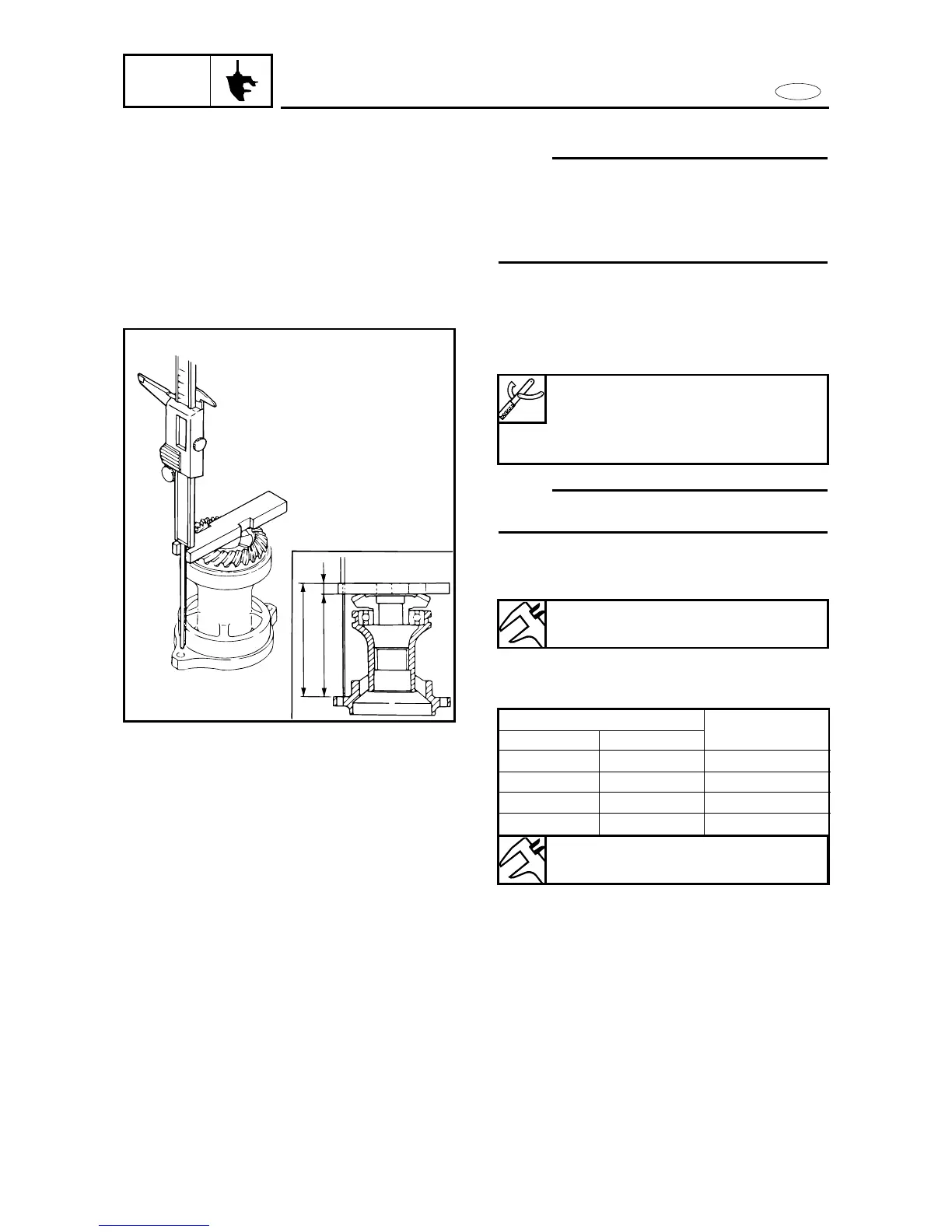

1. Measure:
9 Measurement (Mv
2)
NOTE:
Remove the shim(s) before measuring.
2. Calculate:
9 Reverse gear shim thickness (T2)
Shimming plate:
90890-06701
Digital caliper:
90890-06704
Reverse gear shim thickness:
(T2) = 81.00 - Mv
2
3. Select:
9 Reverse gear shim
Calculated numeral
Shim
more than or less
0 0.1 — (0)
0.1 0.2 0.1
0.2 0.3 0.2
0.3 0.32 0.3
Available shim thickness:
0.1, 0.2 and 0.3 mm
