E

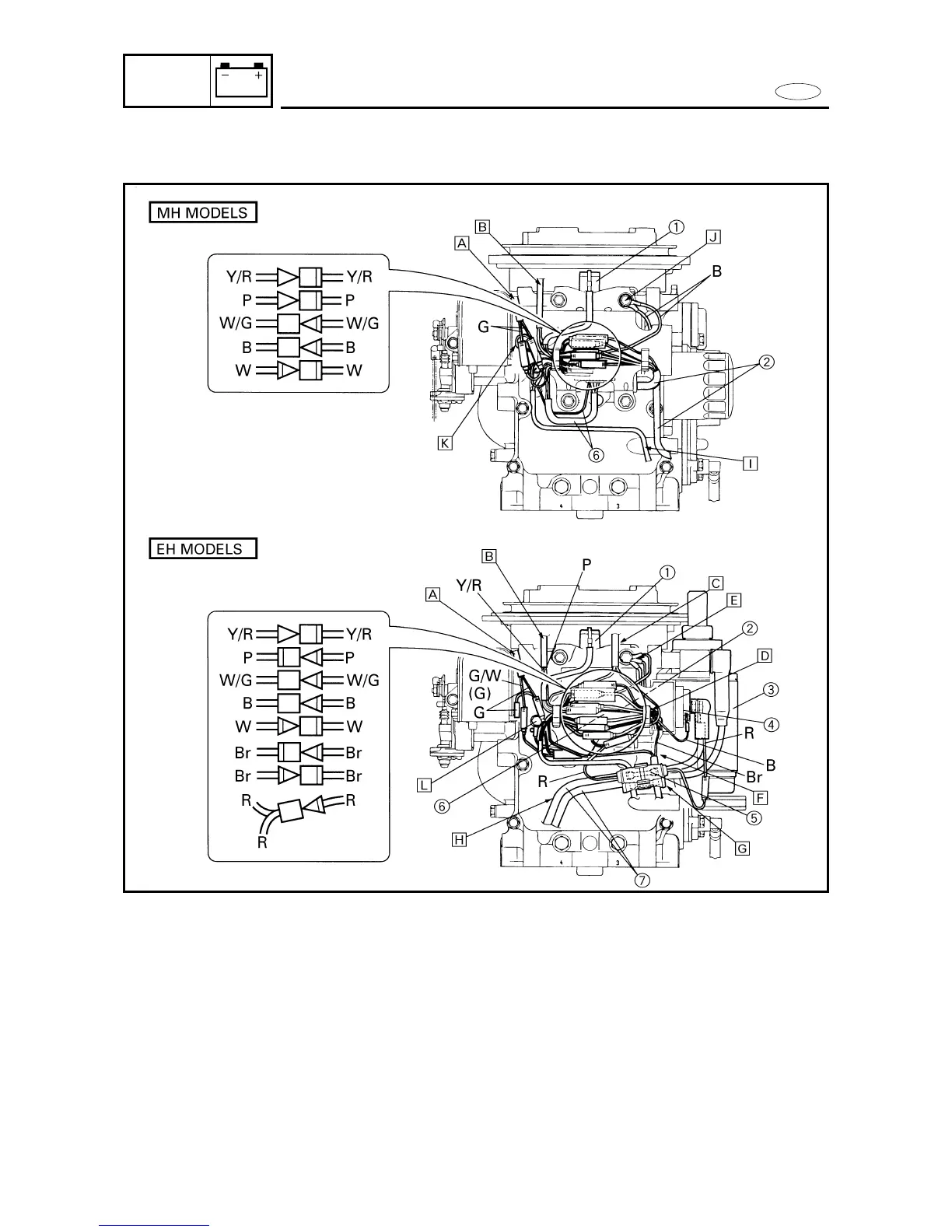

ELECTRICAL COMPONENTS
ELEC
(Rear views)
1 Pulser coil (for EH models)
2 CDI unit lead
3 Starter motor
(for EH models)
4 Starter relay
(for EH models)
5
Fuse (
for EH models
: 10A/20A)
6 Rectifier-regulator
(for MH/EH models)
Rectifier
(for EH models for Europe)
7 Battery cable
A To the lighting coil.
B To the low-oil-pressure
warning lamp.
C To the starter switch.
(for EH models)
D Fasten the CDI unit leads and
stop switch lead.
E Mount the stater relay ground
lead along with the CDI unit
ground lead and the engine
stop switch ground lead. (for
EH models: with starter relay
ground lead )
F To the neutral switch.
G Clamp the fuse holder to the
battery cable.
(for EH models)
H To the battery
I To the stop switch.
J Fasten the CDI unit ground
lead and the engine stop
switch ground lead.
K Mount with the rectifier/reg-
ulator ground lead.
L Mount with the rectifier
ground lead.
8-2
