WIRING DIAGRAM
ELEC

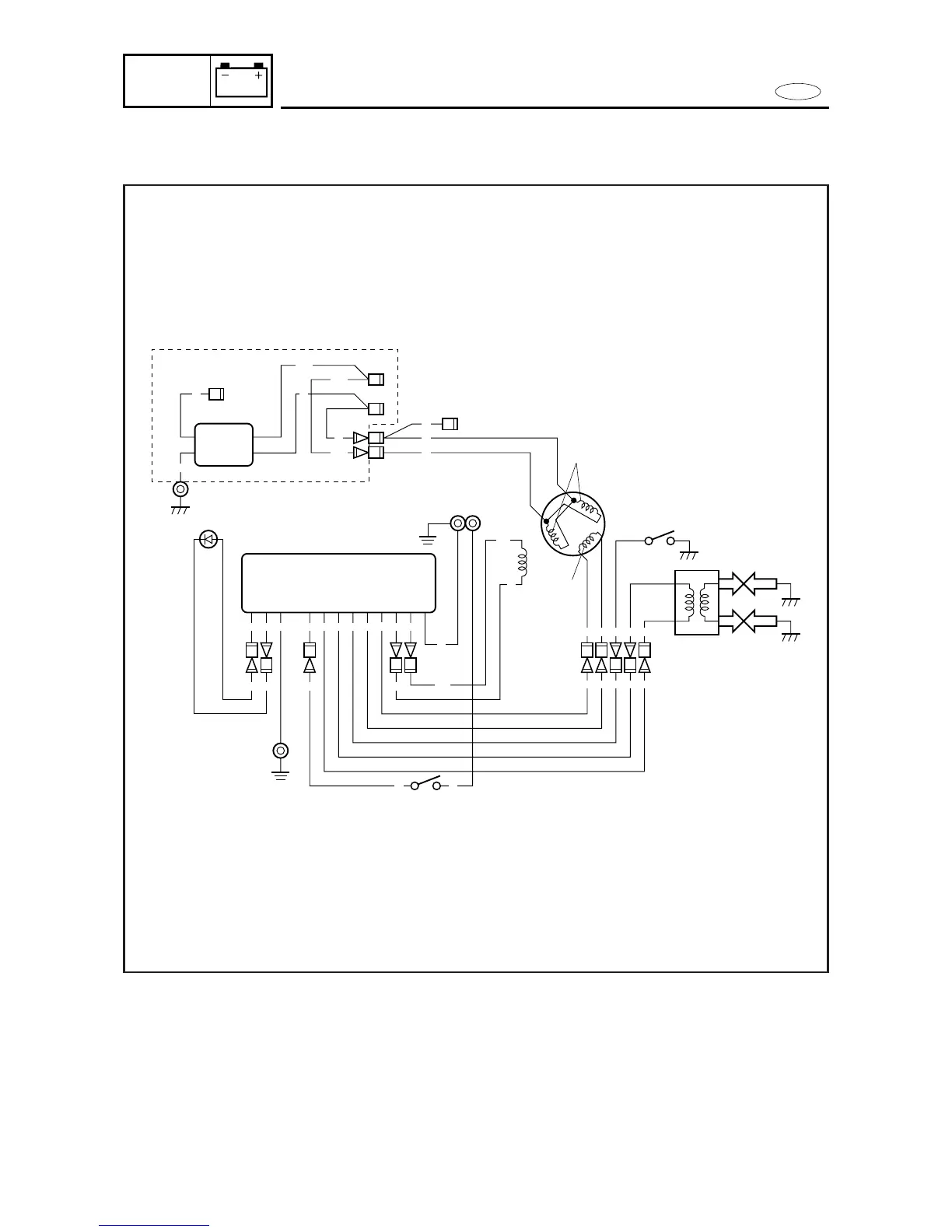

WIRING DIAGRAM (MH MODELS for F15A, F9.9C)
B
R
G
G/W
G/W
G G
G
GG/W
6J8
9
8
1
8
8
7
4
A
6
5
3
2
Y/R P W B O P LB B
B
B
W B
W/G
W/G
Y/R P W
B
B
O
O
P
P
L
L
Br
Br
Br
B
W/G
*
0
1 CDI unit
2 Lighting coil
3 Charge coil
4 Oil pressure switch
5 Pulser coil
6 Ignition coil
7 Engine stop switch
8 Ground
9 Low-oil-pressure warning
lamp (LED)
0 Rectifier/regulator (marked 6J8)
(*Europe only)
q Spark plug
B :Black
L :Blue
Br :Brown
G :Green
O :Orange
P :Pink
W :White
R :Red
W/G :White/Green
Y/R :Yellow/Red
G/W :Green/White
