Yamaha F15A - Page 58

SPEC
MAINTENANCE SPECIFICATIONS (F15A)
2-9
E

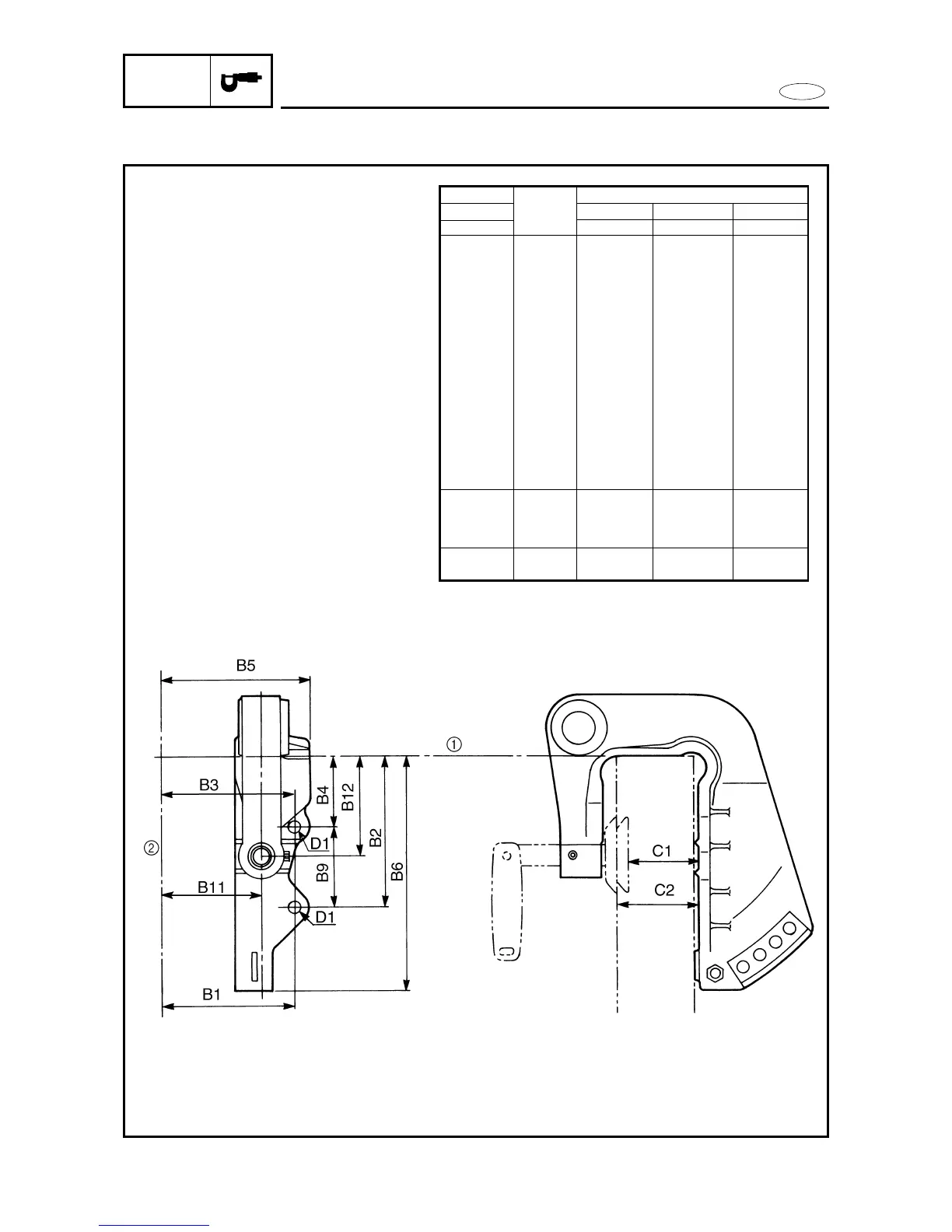

Bracket dimension
B1 mm 92.5 92.5 92.5
(in) (3.6) (3.6) (3.6)
B2 mm 103.5 103.5 103.5
(in) (4.1) (4.1) (4.1)
B3 mm 92.5 92.5 92.5
(in) (3.6) (3.6) (3.6)
B4 mm 49 49 49
(in) (1.9) (1.9) (1.9)
B5 mm 103 103 103
(in) (4.1) (4.1) (4.1)
B6 mm 176 176 176
(in) (6.9) (6.9) (6.9)
B9 mm 54.5 54.5 54.5
(in) (2.1) (2.1) (2.1)
B11 mm 70.5 70.5 70.5
(in) (2.8) (2.8) (2.8)
B12 mm 69 69 69
(in) (2.7) (2.7) (2.7)
C1 mm 44 44 44
(in) (1.7) (1.7) (1.7)
C2 mm 55 55 55
(in) (2.2) (2.2) (2.2)
D1 mm 8.3 8.3 8.3
(in) (0.3) (0.3) (0.3)
Symbol
Wordwide
USA/CANADA
Unit
F15AE
—
F15AMH
F15MHX
F15AEH
F15EHX
Model(s)
1 Top of transom plate
2 Center line
