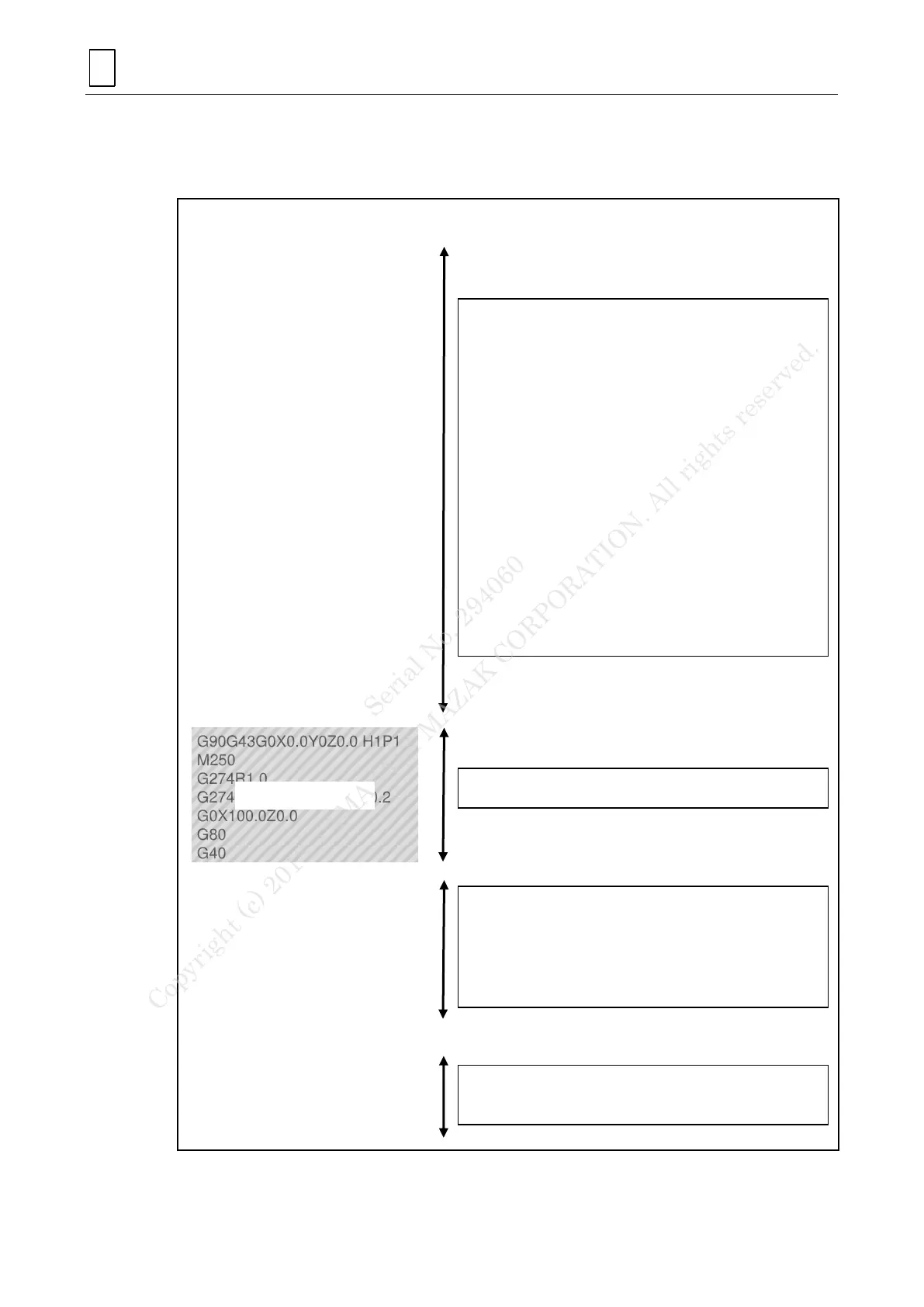

4 MACHINING PROGRAM
4-60
A. Using upper turret and HD1 for Turning
This section explains how to make program (Upper turret - HD1- Turning).
1. Sample program
G109L1
M901
M202
G00G18G90G95G54G97
G40G49G80G67G69
G91G28X0
G28Z0
G28Y0
G28B0
M950
T001T002M06
G91G28X0
G28Y0
G28Z0
G110X2Z2
G90G0X0Z-180.
G111
M108
G90G53B0
M107
G97M203S2000
G10.9X1
M08
M951
G90G43G0X0.0Y0Z0.0 H1P1
M250
G274R1.0
G274X0Z-80.0P0Q15.0F0.2
G0X100.0Z0.0
G80
G40
M205
M952
M09
G91G28X0
G28Z0
G28Y0
G28B0
M30
G109L2
M950
M951
M952
M30
Machining
(Upper turret - HD1- Turning)
jiku
Preparation motion for machining
G109L1: Upper turret selection
M901: HD1 spindle selection
M202: C-axis disconnect / turning mode
G95: Feed per revolution
G97: Constant surface speed control OFF
T001M06: Tool change (TNo.01)
G110 to G111: Cross machining control axis is
specified
(Escape position is specified)
B-axis positioning
M107: B-axis clamping
G97S2000: Rotation speed 2000 min
-1
M203: Turning spindle1 forward rotation
G10.9X1: Diameter data input mode
M08: Flood coolant ON
Machining motion
End motion for machining
M205: Turning spindle1 Rotation stop
M09: All coolants OFF
Each axis positioning to zero return
M30: Reset and rewind
G109L2: Lower turret selection
M30: Reset and rewind
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
