YAMAZAKI MAZAK VORTEX i Series User Manual

4 MACHINING PROGRAM
4-84
4. Transfer of workpiece
INTE i-S can use command about transfer of workpiece, too.
A. Transfer of workpiece
This section explains program of transfer of workpiece.
1. Sample program

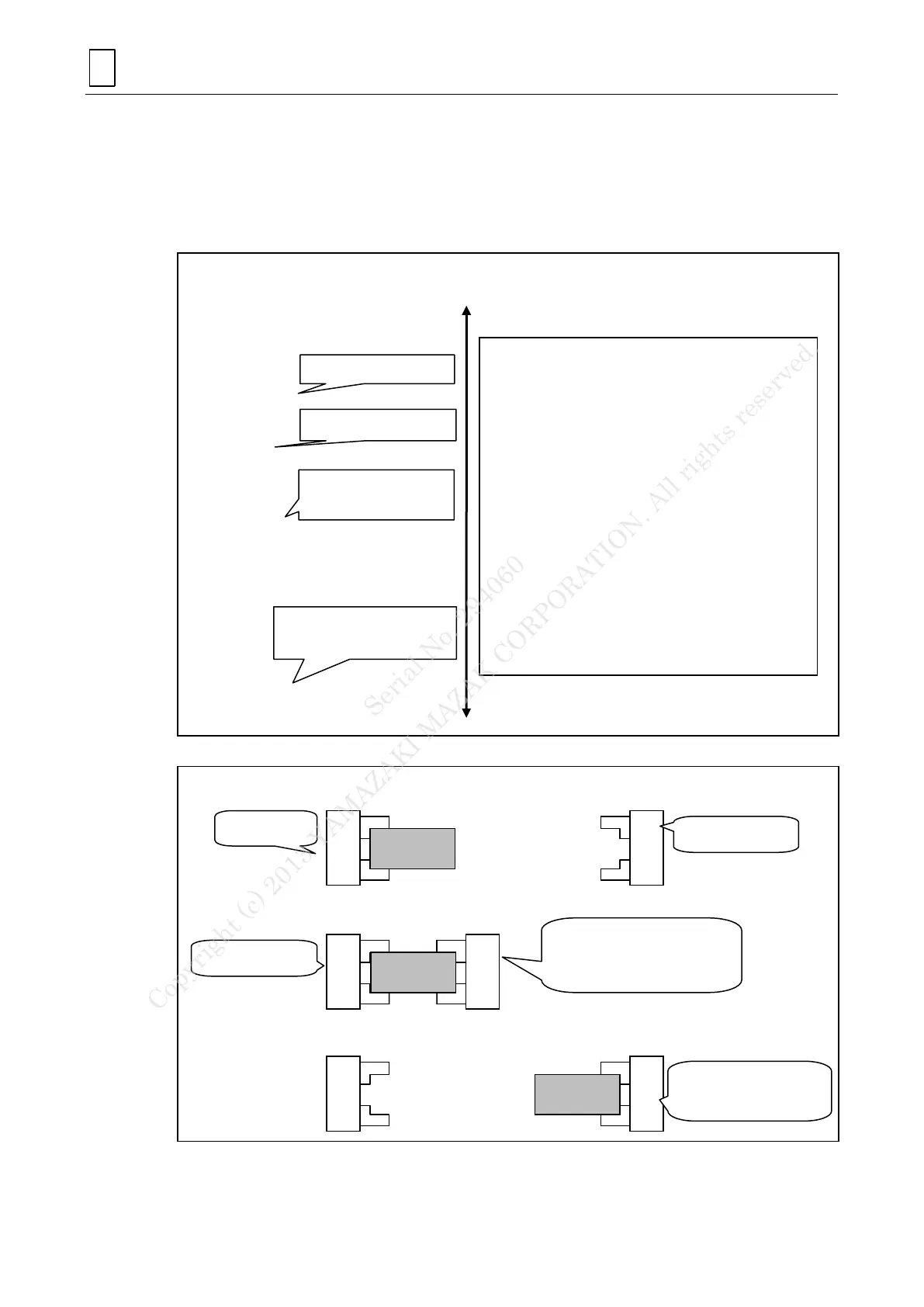

<Image> Transfer (HD1→HD2)
Machining
W-axis positioning.
Machining.
W-axis positioning.
Pressing.
Chuck close
Chuck open
Chuck open
G90
M902
M302
M200
G00C180.
M300
G110C2
G00C0.
G111
M306
M540
G00W-700.
M508
G91G31W-2.F50
M202
M509
M541
M307
M206
M302
G90G00W0.
M959
(Transfer a workpiece from HD1 to HD2)
jiku
Transfer of workpiece
 M902: HD2 spindle selection
 M302: C-axis disconnect / turning mode
 M200: C-axis connect/Milling mode select
 C1-axis positioning
 M300: C-axis connect/Milling mode select
 G110 to G111: C2-axis positioning
 M306: Turning spindle 2 Chuck open
 M540: TRANSFER mode ON
 M508: Pressing setup
 M509: Pressing setup Cancel
 M541: TRANSFER mode OFF
 M307: Turning spindle 2 Chuck close
 M206: Turning spindle 1 Chuck open
 W-axis positioning
W axis pressing
position
(For next machining)
W-axis positioning
C1-axis positioning
C2-axis positioning
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
Serial No. 294060
