5 SUPPLEMENT
5-66

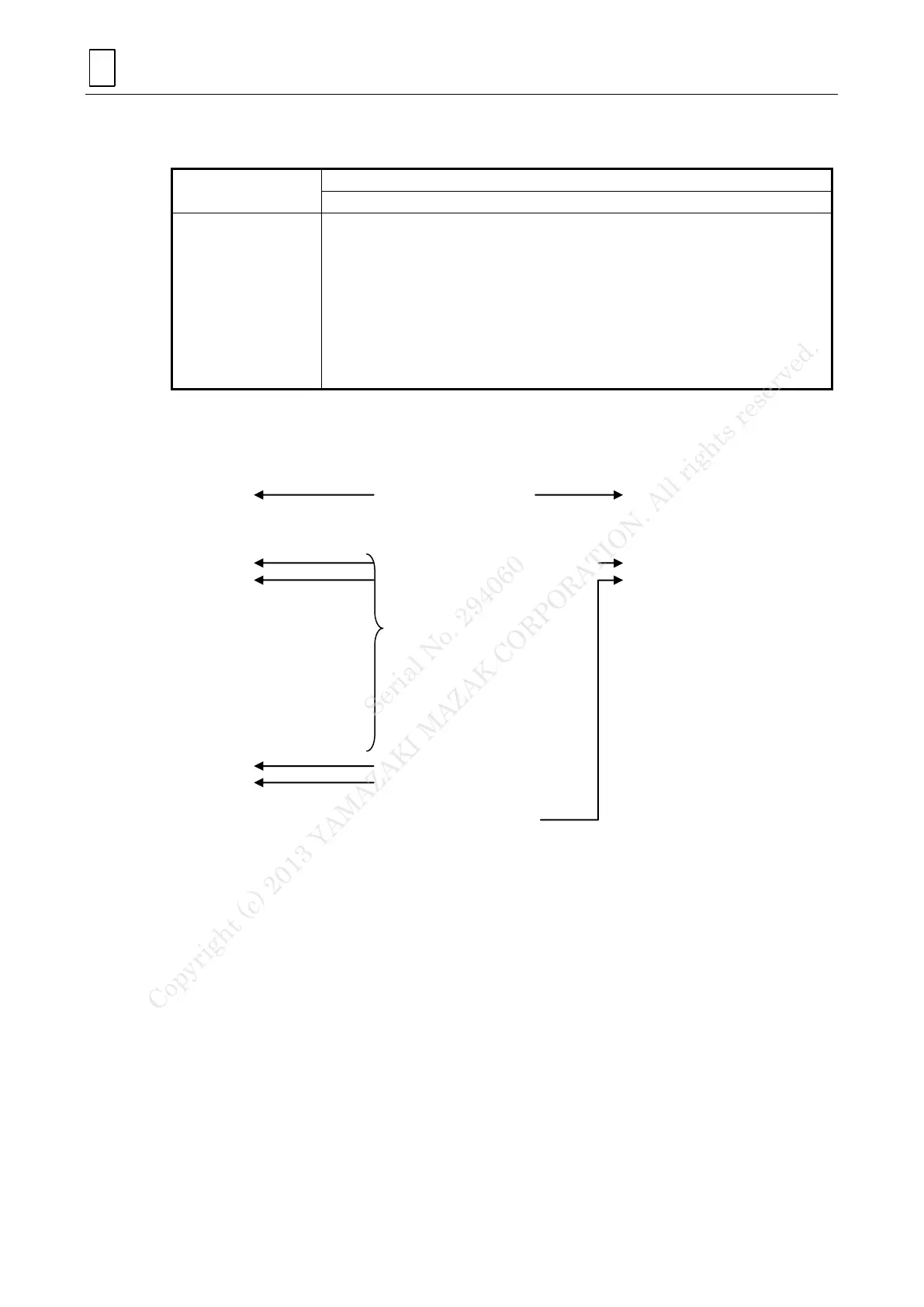

L. Balance cut start
1. Command
This function code enables the operation of the X1-/Z1-axis of the upper turret in tandem
with the X2-/Z2-axis of the lower turret. (M562)
This function code deactivates M562. (M563)
[Balanced cutting]
Balanced cutting is achieved through the symmetrical movement of the upper and lower
turrets. It helps the reduction in the vibration of a long workpiece and permits the cutting
speed to be doubled for the saving of the machining time. During the balanced cutting one
turret acts as the main turret (master turret) and the other as the subordinate turret
(servant turret). Enter the movement commands for the balanced cutting in a program
section for the main turret.
2. Sample
G109 L1
M901
N001 G00 X800.Z70.
P10
M03 S250
T001T000M06
N002 X132.Z60.M08
M950
M562
N003 G01 X78.F0.35
N004 G00 X156.Z63.
N005 Z29.
N006 G01 X150.
N007 X148.Z30.
N008 X128.
N009 G00 X800.Z70.
N010 X112.Z63.T0202
N011 G01 X120.Z59.F0.4
N012 Z30.
N013 X130.
N014 G00 X800.Z70.
M563
P20
N015 M09 M05
:
Single command for waiting
M950 for waiting for the start of cutting
Balance cut start
Movement commands
for balanced cutting
Balance cut end
Single command for waiting
G109 L2
M901
N101 G00 X800.Z200.
P10
M03S250
T001000
N102 X92.Z65.M08
M950
P20
:
Serial No. 294060
Copyright (c) 2013 YAMAZAKI MAZAK CORPORATION. All rights reserved.
