Note 2: Whether argument J or B is to be used depends on the value that has been set in F84
bit1.
Parameter
Description
F84 bit1
0: Argument B-command
1: Argument J-command

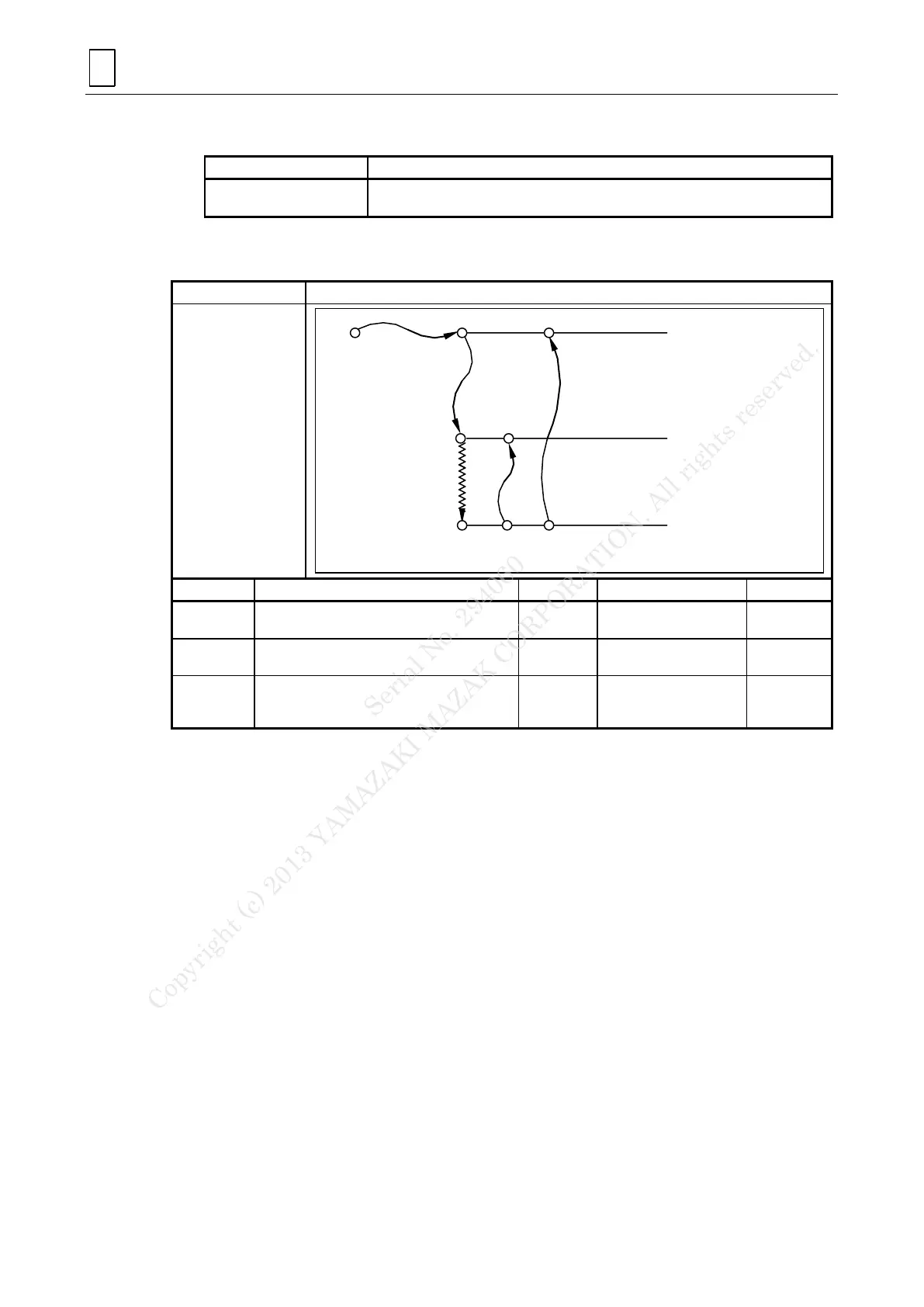

Q. Fixed cycles (Spot drilling)
1. Command
Programming format
G81 Xx Yy Rr Zz
Function
Code value
Description
Unit
Setting range
Omit
x, y
Machining position (X, Y-axis)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
r
Designation of R-point position
(incremental value from initial point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Designation of hole bottom position
(absolute/incremental value from reference
point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
Initial point
R-point
Point Z
MEP149
G98
G99
