S. Fixed cycles (Reaming)
1. Command
Programming format
G85 Xx Yy Rr Zz Pp Dd Ff Ee
Function
Code value
Description
Unit
Setting range
Omit
x, y
Machining position (X, Y-axis)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
r
Designation of R-point position
(incremental value from initial point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Designation of hole bottom position
(absolute/incremental value from
reference point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
p
Dwell (in time or No. of revolutions)
1/1000 s (G94)
0 to 99999999
Possible
1/1000 rev (G95)
d
Distance from point R’
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Possible
f
Feed rate
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible
e
Feed rate
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Possible
Initial point
R-point
Point Z
Dwell

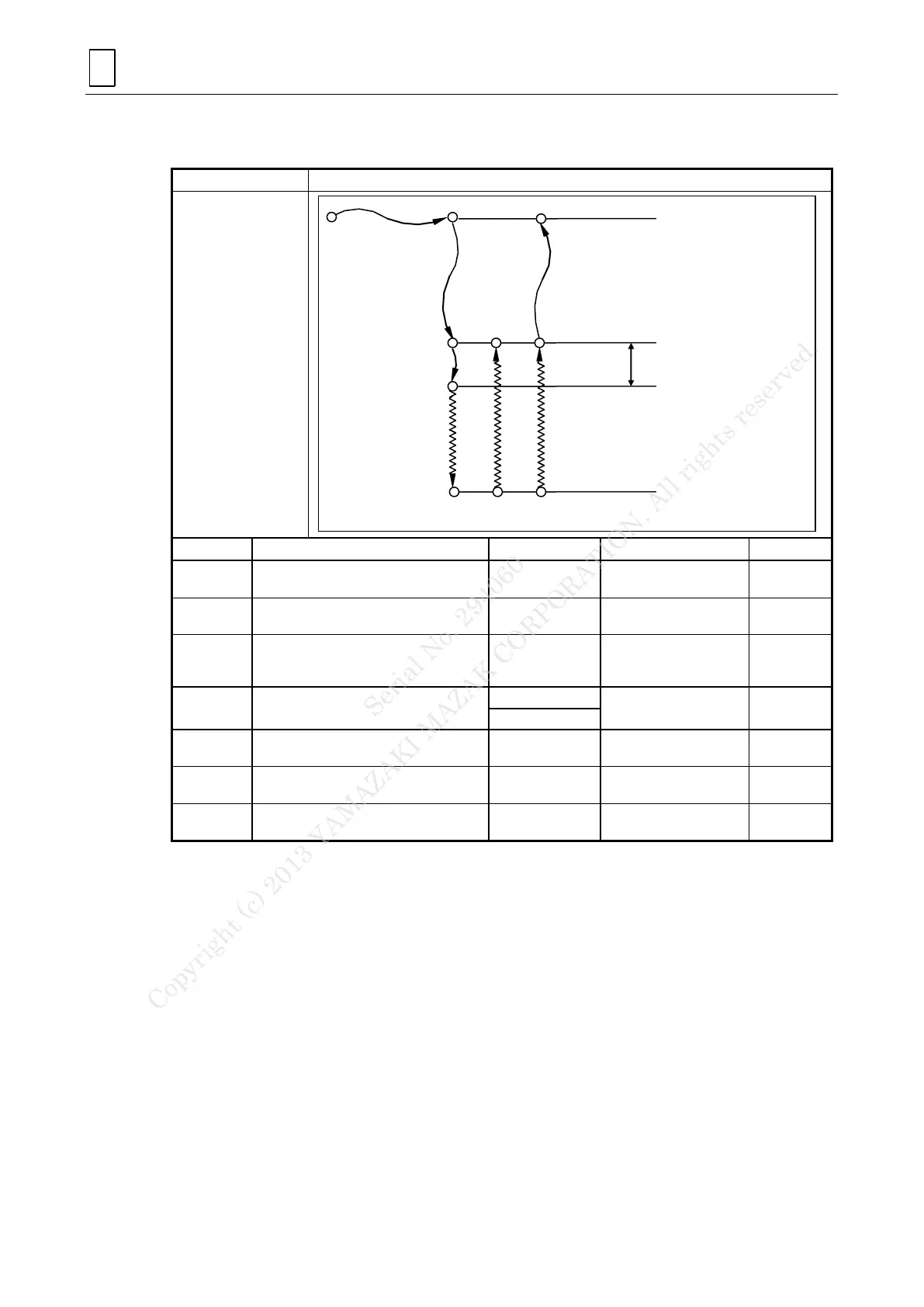

MEP153
G99
e
f
d
G98
Serial No. 294060
