YAMAZAKI MAZAK VORTEX i Series User Manual

SUPPLEMENT 5
5-43
Note 2: Whether argument J or B is to be used depends on the value that has been set in F84
bit1.
Parameter
Description
F84 bit1
0: Argument B-command
1: Argument J-command

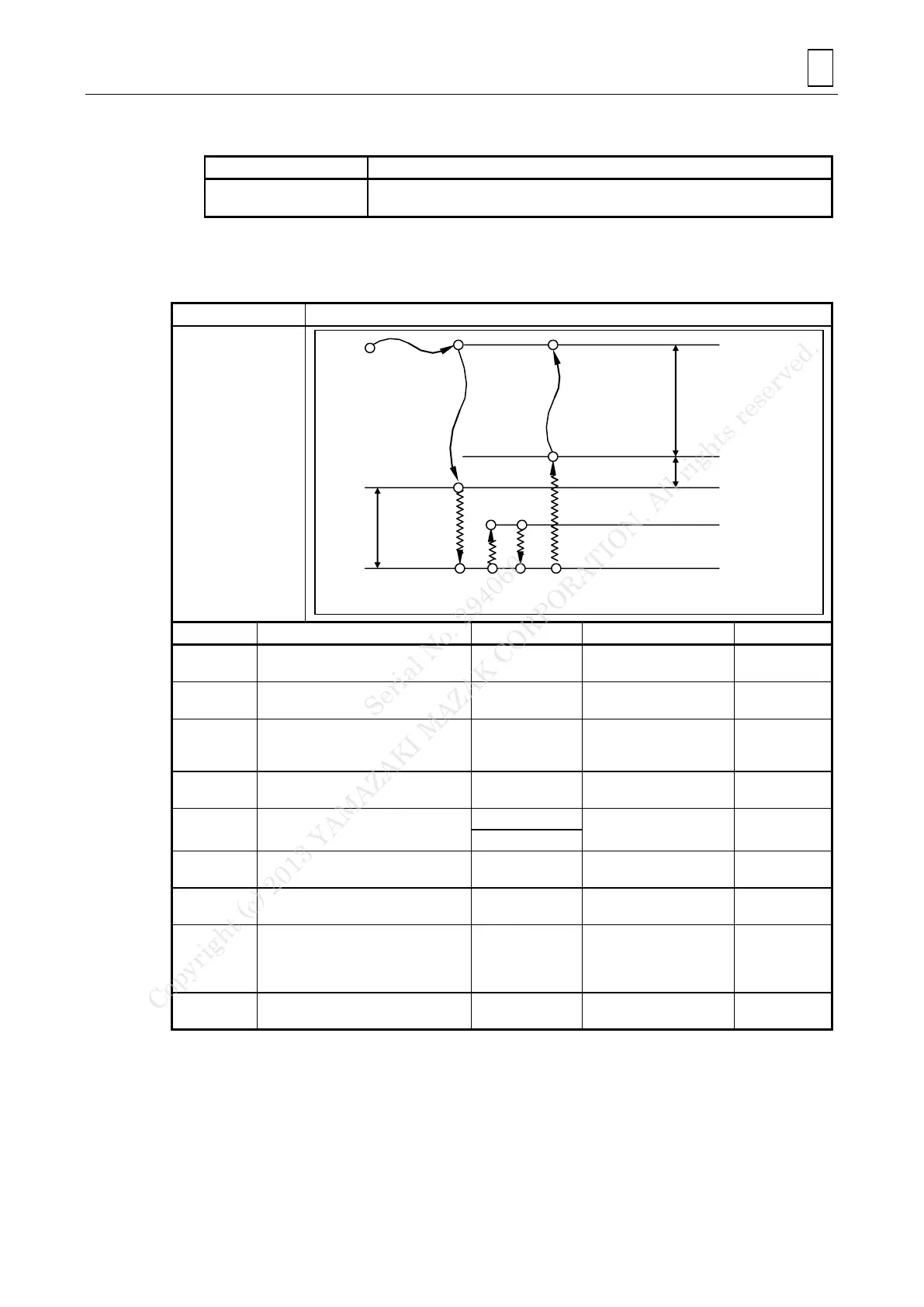

P. Fixed cycles (Back spot facing)
1. Command
Programming format
G77 Xx Yy Rr Zz Qq Pp Dd Ff Jj(Bb) Ee
Function
Code value
Description
Unit
Setting range
Omit
x, y
Machining position (X, Y-axis)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible
r
Designation of R-point position
(incremental value from initial point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Designation of hole bottom position
(absolute/incremental value from
reference point)
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
q
Distance from the initial point
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Possible
p
Dwell
(in time or No. of revolutions)
1/1000 s (G94)
0 to 99999999
Possible
1/1000 rev (G95)
d
Distance from point R’
mm
in
0 to 99999.9999 (mm)
0 to 9999.99999 (in)
Possible
f
Feed rate
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible
j (b)
(Note 2)
J0: M03, then M04
(for normal spindle rotation)
J1: M04, then M03
(for reverse spindle rotation)
-
0, 1
Possible
e
Feed rate
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Possible
Note 1: Normally, asynchronous feed (G94) is used for the pass marked with (Note 1). If e = 0,
or if e is omitted, however, synchronous feed (G95) is used (feed rate = 0.5 mm/rev).
Point R’
Initial point
Dwell
Point Z
R-point
(Note 1)
Point D
MEP146’
e
e
f
f
M04
M03
q
d
