MACHINING PROGRAM 4
4-13

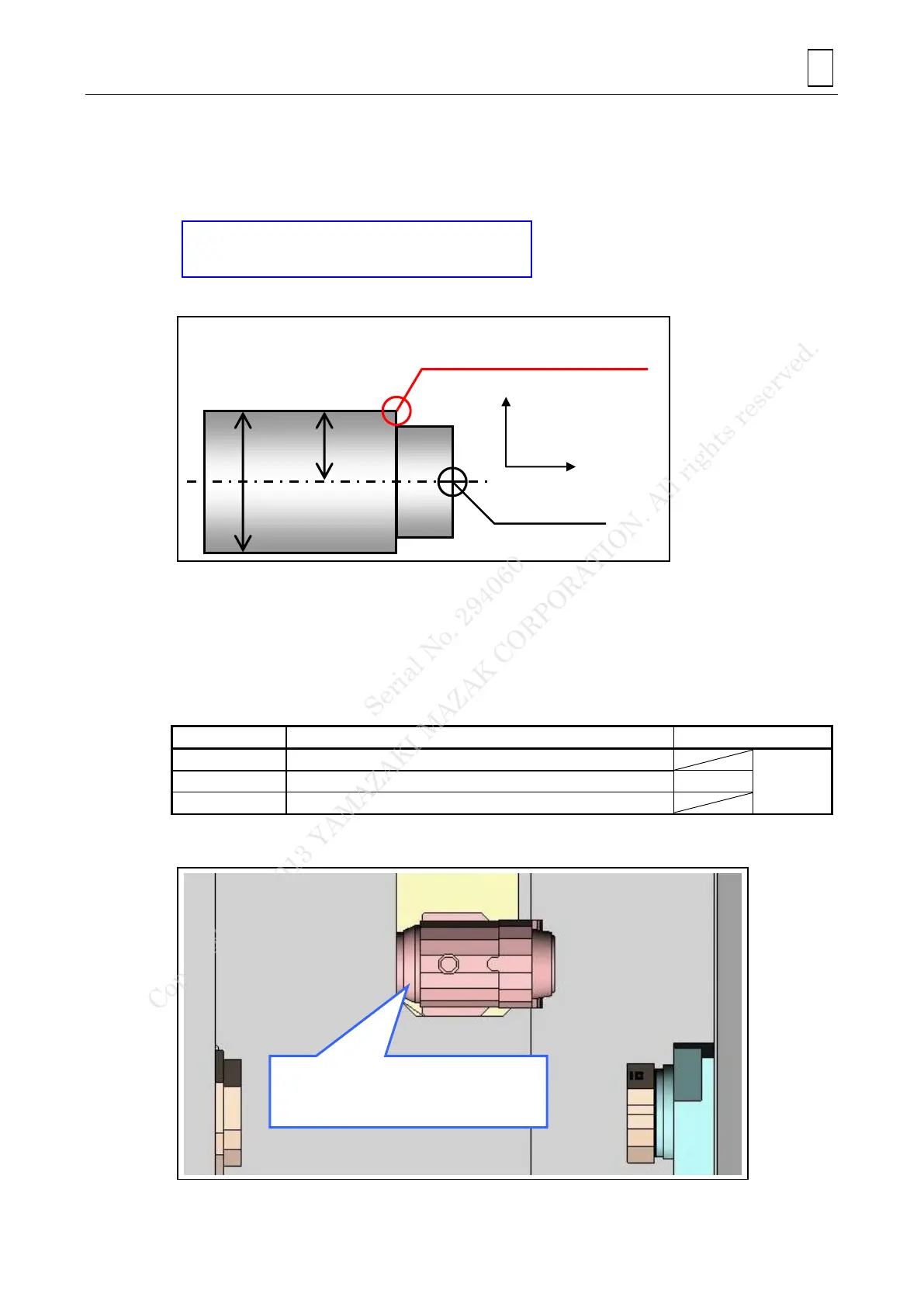

9. Radius/Diameter data input
Select the Diameter / Radius data input by machining method.
Usually, diameter data input is selected for turn-machining, and radius data input is selected for
mill-machining.
Radius/Diameter data input
10. Coolant command
Command a coolant code by machining method.
All the coolant codes must be cancelled by a cancel code, M9, in “End motion for machining”, if
they have been turned on.
This Table shows coolant M-codes. Check if they are available before commanding.
Coolant M-codes
M-codes
Function
Cancel
M08
Flood coolant ON
M09
M51
Milling spindle through coolant
M163
M129
Flood air blast
Coolant locations
M08: Flood coolant
M51: Mill spindle through coolant
M129: Flood air blast
Machining zero point
100
Radius data input: X 50.0
Diameter data input: X100.0
X
Z
50
G10.9X1: Diameter data input
G10.9X0: Radius data input
Serial No. 294060
