J. Fixed cycles for turning (Transverse turning cycle)
1. Command
Programming format
G294 Xx Zz Rr Ff
Function
Code value
Description
Unit
Setting range
Omit
x
Position of X-axis
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
z
Position of Z-axis
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Impossible
r
Taper depth
mm
in
0 to ±99999.9999 (mm)
0 to ±9999.99999 (in)
Possible(0)
f
Rapid motion
mm/min
in/min
0 to 200000.0000 (mm)
0 to 20000.00000 (in)
Impossible

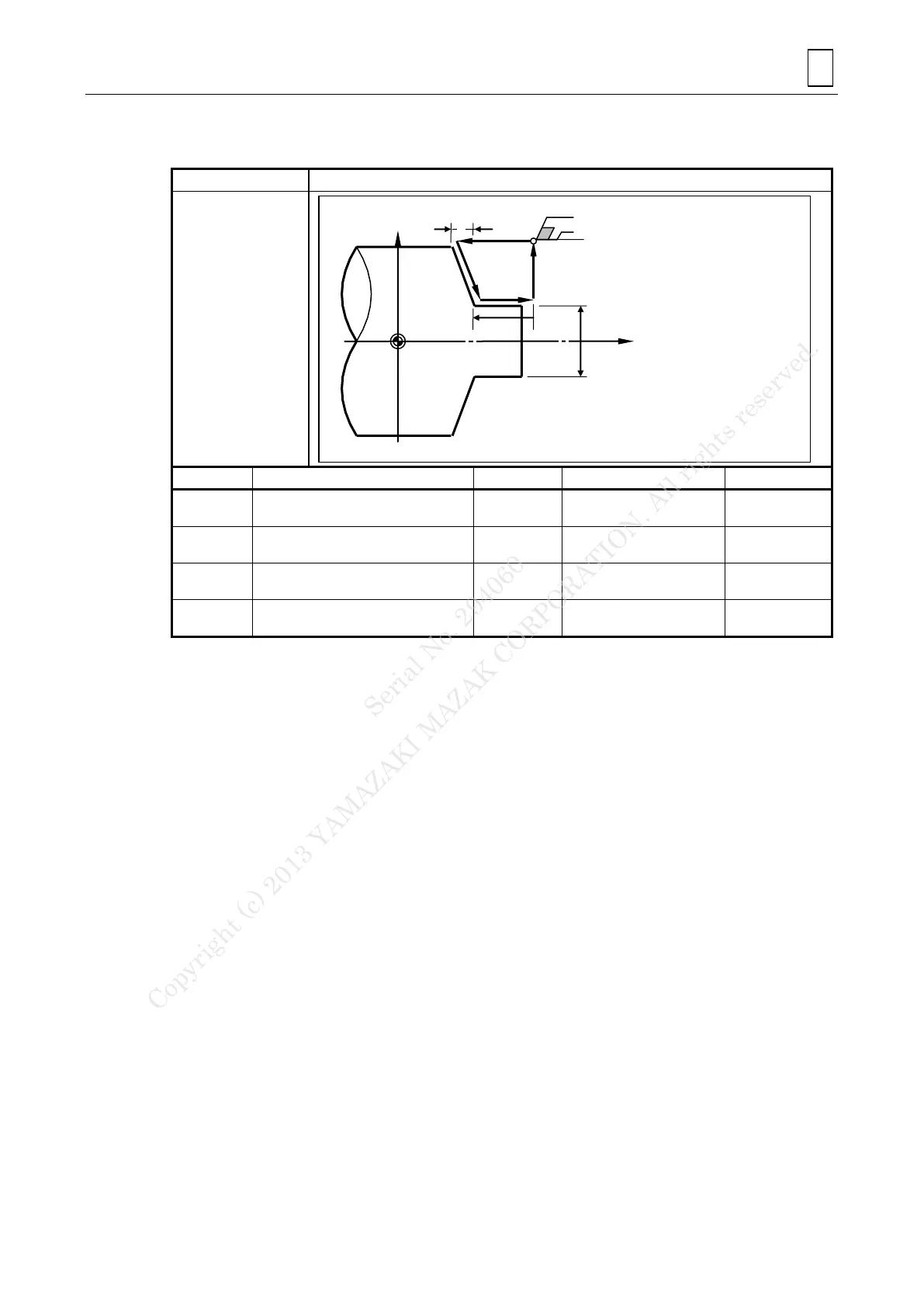

TEP126’
(R): Rapid motion
(F): Cutting feed
R: Taper depth
(incremental in radius value,
with sign)
Z-axis
X-axis
Z
X
1(R)
2(F)
3(F)
4(R)
R
